MC4 PV connectors are single-contact electrical connectors commonly used for connecting solar panels. The compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.[citation needed] Originally rated for 600 V, newer versions are rated at 1500 V, which allows longer strings to be created.
6mm2 221 series connector, easy to use, handle color can be customized.solid wire accepts 10AWG or 6mm2 wire, ideal for branching off building power wires.
773 series wire connector, it's easy to plug in during use, and very popular in the construction and decoration industries. Different poles can be chosen.
Rj45 connector: The general, and with standard network port RJ45 with crystal head. Socket with 90° ethernet interface of ethernet cable solder to the PCB directly.
T Type Waterproof Connector Use 6-10mm diameter cable, wire size ≤14AWG (2.5mm2), screw crimping; the maximum current can support 16A. There are 3 independent wiring devices. Compared with other T-type or Y-type connectors with only one wiring device, the wiring is faster, the operation is simpler, and the contact is more reliable.

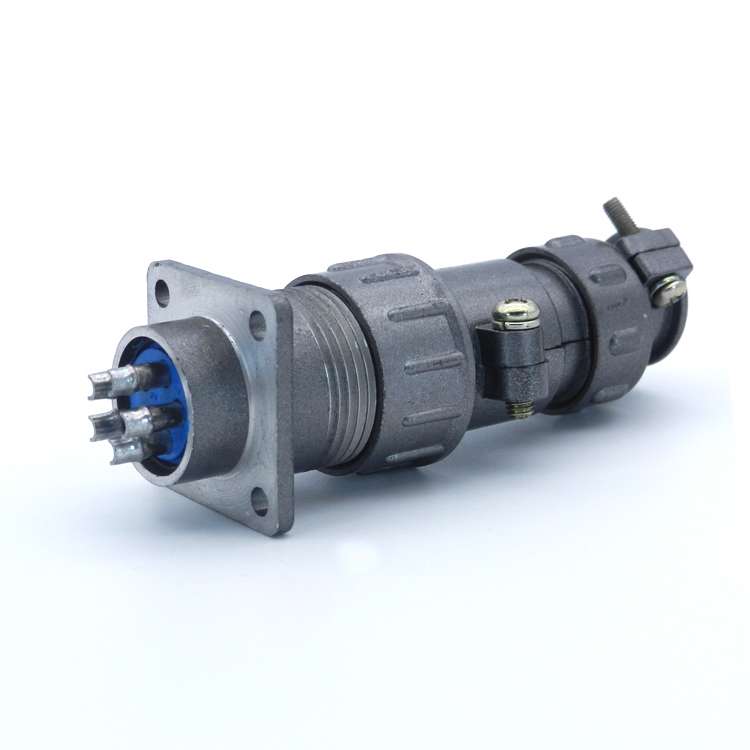

Circular connector P series are used for circuit connection between various electrical equipment. They are made according to the standard SJ/T10496 and for military and industrial applications.
Replacement Stäubli solar connectors. The MC4 photovoltaic connector is the most used special connector in the solar photovoltaic power generation system, and it is an indispensable and important component of the solar power generation system.
2EDGR/2EDGV has 6 different pitch: 3.5mm, 3.81mm, 5.0mm, 5.08mm, 7.5mm and 7.62mm. The contact pin has 2-24 pin, material is brass with tin plated. Both these two models can be matched with 2EDGK. Shell color is green, made by PA66.
B06 connector can replace of 923 series wire connector. There are 4 kinds of specifications are available to meet different wiring needs, labor-saving and convenient, and reliable quality.
Micro Resistance Painless Lever Crimp Wire Connectors With The Latest
Design Inside The Product, Lever Has Minimal Opening And Closing Resistance,
And Frequent Use Will Not Bring Pain To The Fingertips. After The Wire Is
Connected, The Tension Is Large And It Is Not Easy To Loosen. The Number Of
Connector Holes Can Be Spliced Infinitely According To Requirements.
Rocker switches are usually used to directly power devices. They are available in a variety of shapes, sizes and colors, both standard and custom symbols are provided on the actuator.
XT30U Lipo Power connector, its housing is made with PA and the contact is gold plated, its shape prevents reverse polarity, and when plugged in the connection is super-solid. Advantages: low resistance, slow heating, anti-reverse insertion
