Electrical Bus motor controller (6-8m,9-11m,9-18m)

Full Range Product

Covers the MCU six-in-one integrated controller, MCU five-in-one integrated controller, MCU / auxiliary drive four-in-one integrated controller, MCU / auxiliary drive three-in-one integrated controller, hybrid two-in-one integrated controller, auxiliary drive two-in-one integrated controller, motor + MCU integrated system, motor + gearbox + MCU integrated system;

Designed to meet customer needs for customized design;

Adapted for permanent magnet synchronous motor (PMSM), asynchronous motor, etc.;

Power range covers from 3kW to 355kW.


Features and benefits
  • Certification :

    CE, EAC, ISO9001, OHSAS18001, TS16949, SGS
  • Place of Origin :

    China
  • Package :

    Standard Export Package Carton/Wood
  • Availability :

    OEM/ODM, Minmum Order Request
  • Transportation :

    Express · Sea freight · Land freight · Air freight
  • Delivery Time :

    14-30 working days for customized EV motor controller
  • Warranty :

    24 Months
  • Customized :

    YES
  • Shipping Port :

    Shenzhen
  • Term of payment :

    T/T, L/C, D/P
  • Sample freight payer :

    Buyer
  • Sample provide :

    YES
Product Details

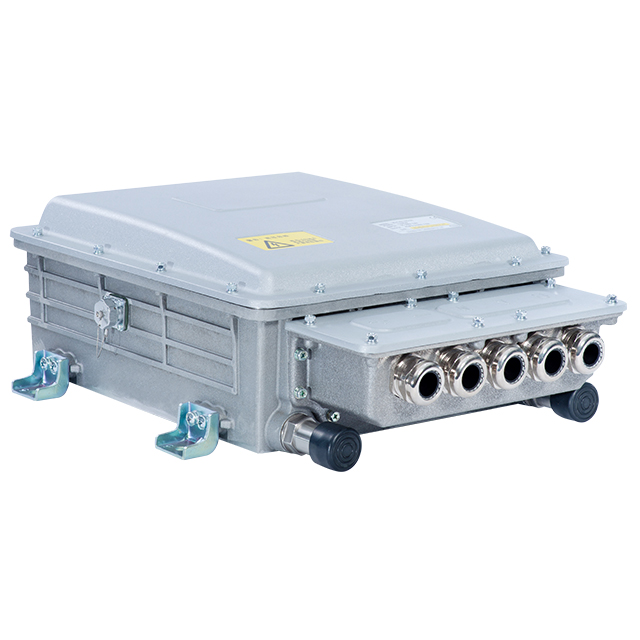

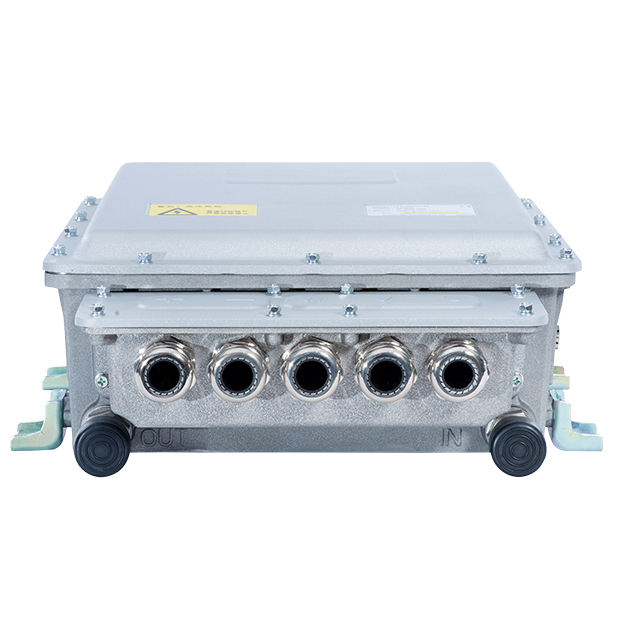

V6-H-4D185G Master Drive Motor Controller


Technical Parameter

Adaptable motor type

Permanent magnet synchronous motor、Three phase asynchronous motor

Applicable vehicle type

Logistics VehicleMedium BusPassenger Car

Product type

V6-H-4D185G

Rated input voltage

DC 540V

Rated power

185kW

Input voltage range

DC 350V~750V

Rated output current

304A

Maximum output current

525A

Output frequency range

0~1000Hz

Protection level

IP67

Cooling type

Water cooling

Outline dimension

489*384*133mm

Weight

16.5kg


Outline Dimension


Application
