Certificate :
CESize :

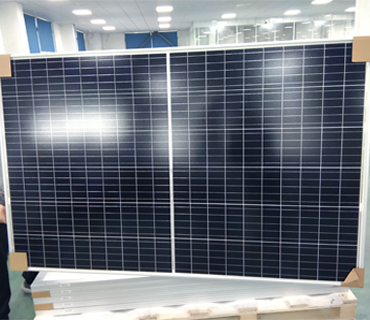

2000*992*40mmEITAI Polycrystalline Half Cell Solar Panel PV Module
EITAI Polycrystalline Half Cell 340w 345w 350w 355w 360w 144cells Solar Panel PV Module All Scale
Product Description :
|
Place of Origin: |
China |
Brand Name: |
||
|
Model Number: |
340-360W |
Type: |
Half Cell, Half Cell Solar Panel |
|
|
Size: |
2000*992*40mm |
Panel Efficiency: |
17.2-18.2% |
|
|
Certificate: |
CE, CE,IEC61215,IEC61730-1/2 |
Warranty: |
30year |
|
| Solar cell: | Polycrystalline |
Szie of cells: |
144cells( 6*24) |
|
|
Tolerance: |
0+3% |
Operational Temperature: |
-40~+80°C | |
|
Max. Series Fuse Rating: |
20A |
Junction Box(protection degree): |
≥IP68 |
|
|
Max System Open Circuit Voltage: |
47V |
Weight: |
22.5kg |
|
Parameter display :
|
Module
|
ETHP340-360W(144)
|
|||||
|
Encapsulation
|
Glass/EVA/Cell/EVA/Backsheet
|
|||||
|
Number of cells
|
144 Cells / 6*24 pcs
|
|||||
|
Maximum Power Pmax
|
W
|
340
|
345
|
350
|
355
|
360
|
|
Maximum Power Voltage(Vmp)
|
V
|
38.9
|
39
|
39.2
|
39.4
|
39.6
|
|
Maximum Power Current(Imp)
|
A
|
8.74
|
8.86
|
8.94
|
9.02
|
9.10
|
|
Open Circuit Voltage(Voc)
|
V
|
46.2
|
46.4
|
46.6
|
46.8
|
47.0
|
|
Short Circuit Current(Isc)
|
A
|
9.35
|
9.43
|
9.51
|
9.59
|
9.67
|
|
Cell Efficiency
|
%
|
17.2
|
17.4
|
17.7
|
17.9
|
18.2
|
Standard Test Conditions[STC]: Irradiance 1000W/m²; AM1.5; module temperature 25°C.
Measuring uncertainty of power is within ±3%.
Tolerance of Pmpp: 0~3%.
Certified in accordance with IEC61215,IEC61730-1/2.
Product Details :
 |
Tempered Glass
* 12% Ultra Clear Tempered Glass. * 30% Lower Reflection * 3.2mm thickness * >91% Higher Transmittance * High mechanical strength |
|
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability |
 |
|
|
Junction box
Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level Heat Dissipation Long service life |
|
Mono Half Cells
* PERC Half Cells * Higher Power Output * Less Shading Effect * Appearance Consistency |
 |
 |
Frame
* Aluminum Alloy Frame * 120N Tensile Strength Frame * 110% Seal-lip Design Glue Injection * Black/Silver Optional |

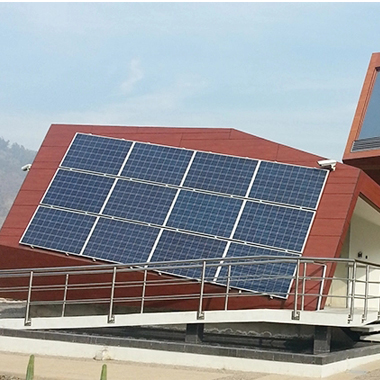

Product Application :
 |
|
Product Packing :
  |
|
