DMR IP67 Digital Trunking Communication System

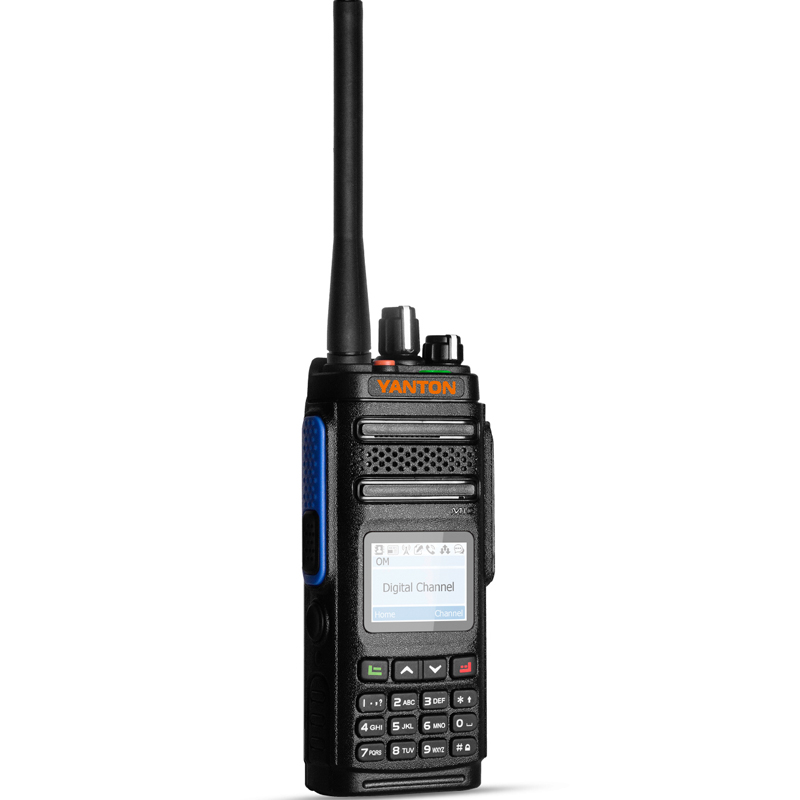

DMR GPS Waterproof Trunking Radio,beside all the conventional analog radio,dual-mode DM-860 bring you a whole new set of digital fature, man down, 1024 channels, 64 zone, 2 slots, versatile call ,remote kill/revive,GPS function and a clear digital audio.
Quick Details
1.136-174MHZ or 400-480MHZ
2.1024Channels
3.Digital Contacts (All call & Group call & Single call)
4.Alarm Function
5.Scan Function
6.Wide/Narrow bandwidth Selection
7.Hight/ Low Power Switch
8.DTMF/Remote Kill,Stun,Activate&Revive
9.CTCSS/DCS
10.Digital Encryption
11.Side key Function
12.Chinese/English Voice prompt
13.Duplex Repeater Function
14.Talk Around
15.MAN DOWN
16.GPS Function Optional
17.Patrol Function Optional
18.200 Hours Recorder Function
Specification
|
GENERAL |
|
|
Frequency Range |
136-174/400-480MHz |
|
Operating Temperature |
-30°C~ +60°C |
|
channel spacing |
Analog: 12.5/20/25KHz Digital: 12.5KHz |
|
battery life |
About 15/20 hours according to 5-5-90 duty cycle |
|
Memory Channel |
1024ch |
|
Working voltage |
7.2V DC ± 10% |
|
Antenna Impedance |
50Ω |
|
Frequency Stability |
±2.5ppm |
|
Dimensions |
136*65*40mm(without antenna) |
|
Weight |
265g |
|
TRANSMIT PART |
|
|
RF power |
10W |
|
Modulate Mode |
12.5KHz : 7K60FXD(Data Only)/12.5KHz: 7K60FXW(Voice & Data) |
|
Hum & Noise |
≥ 45dB |
|
Spurious Emission |
≥65dB |
|
Modulation Distortion |
≤ 5% |
|
RECEIVER PART |
|
|
Sensitivity |
5% BER:0.25μV |
|
Audio Distortion |
≤ 5% |
|
Spurious Response Rejection |
≥ 70dB |
|
Adjacent Channel Selectivity |
≥ 65dB |
|
Inter-modulation |
≥ 60dB |
|
Audio Output |
≥ 1W |
