Level

Economic

Resolution

8dots/mm (203DPI)

Printing Method

Direct Thermal

Print speed Max.

203.2mm (8”)/se8nd

Print width Max.

104mm (4.1")

Print length Max.

2,794mm (1101)

Physical dimension

176mmx180mmx240mm (WHD)

Weight

1.76kg

General

CPU

400MHZ, 32-bits, ARM9

Memory RAM

64MB SDRAM

Memory ROM

32MB Flash Memory

Interface

USB

Sensors

Head open sensor; Reflective sensor (moveable). Transmissive sensor (moveable)

Power

External universal switching power supply

Input:AC 100-240V,2.5A, 50-60Hz, Output:DC24V, 2.5A, 60W

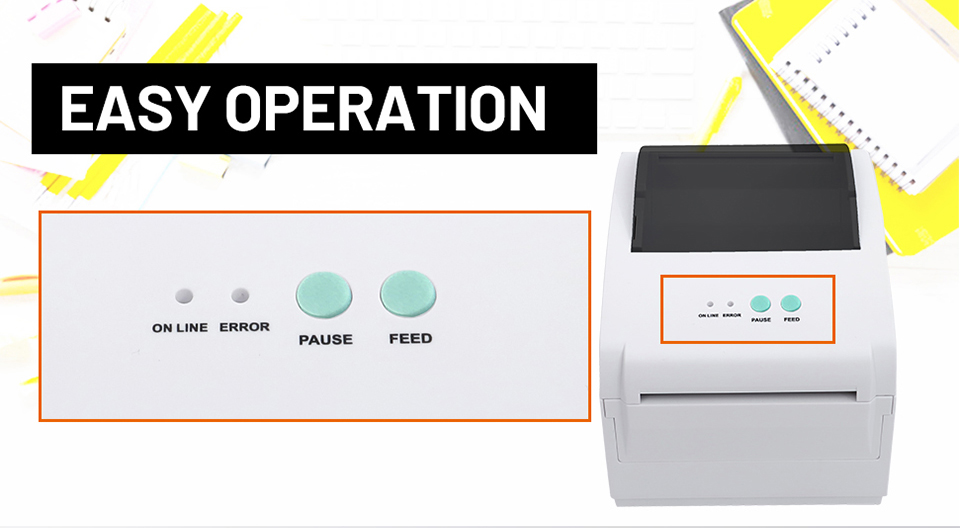

User Interface

1 power switch, 2 buttons (Feed & Pause), 2 LEDs (Online, Error)

Internal fonts

8 alpha-numeric bitmap fonts

True type font engine (need download scalable font file)

1D Barcod

Code 11, Code 39, Code 93, Code 128 (subsets A, B, Q UPC-A, UPC-E, UCC-128, Codabar; EAN/JAN-8, EAN/JAN-13, Interieaved 2 of 5, FTF14, MSI Please PostCode, Telepen

2D Barcode

QR Code, Micro OR Code, PDF417, Micro PDF417, Grid Matrix, MaxiCode, Aztec Code, Data Matrix

Rotation

Font and barcode support 0,90,180,270 degree

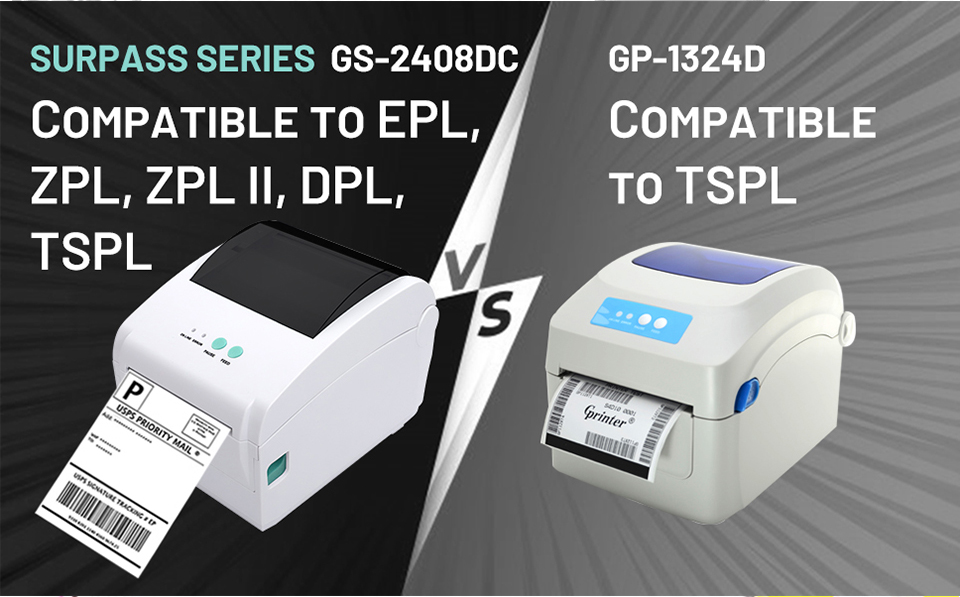

Printer language

Compatible to EPL, ZPL, ZPL II, DPL, TSPL

Medla

Media type

Continuous, die-cut, black mark, fen-fold, notched(Outside wound)

Media width

15~112mm (0.6"~4.4,)

Media thickness

0.055~0.254mm(2.17-10mil)

Media core diameter

25.4mm (1")

Media roll capacity

127mm (5")OD

Media length

5~2,794mm (0.2"~110")

Enclosure

ABS plastic

Certification

FCC, CE, CCC, BIS, CB

Environment condition

Operation:5~40°C, 25~85%non-condensing

Storage: -40*~60°C, 10~90% non-condensing

Environment concern

Comply with RoHS, REACH, WEEE

Accessories

Windows labeling software CD disk/Quick start guide/USB cable/Power cord External univeraal switching power supply

Limited warranty

Printer:2 years

Print head: 25km (1 million inches)/12 months

Roller: 50km (2 million inches)/12 months

User options

External roll mount
