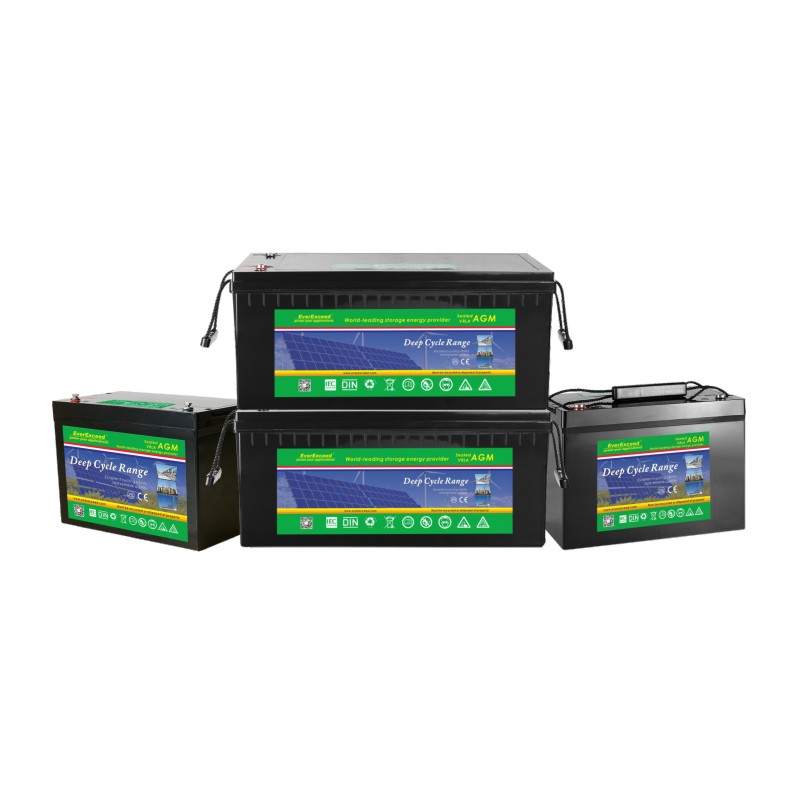

EverExceed top terminal Deep Cycle AGM Range provides high performance and reliability in long duration cycling applications. Our development team combines the market demand with design optimization, precision component selection and state-of-the-art manufacturing process to produce the most cost effective Deep Cycle battery solution for today's applications.
Usage :
Solar / Photovoltaic;Wind Generation;Broadband ;Microwave;UPS/EPS;Water Pumping;Telecommunications;Cathodic Protection;Signaling;Certificates :
UL1989; IEC61427;IEC60896; CEOEM/ODM Service :
Yes, customizedRated capacity(Ah) :
18Ah-110AhModel :
DP seriesRated voltage(V) :
12V
Technical features:
|
|
|
|
|
|
 |
|
 |
|
 |
|
Superior cycle performance |
|
Unique performance |
|
Low self-discharge rate |
| Valve requlated lead acid battery(VRLA), deep cycle design. Provides high performance and reliability in long duration cycling applications. |
|
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection. |
|
Less than 3% per month.Over-sized, through the partition inter-cell welds provide low resistance connection, with minimal power loss. |
|
|
|
|
|
|
 |
|
 |
|
 |
| Wide operating temperature range |
|
High safety |
|
Long service life |
|
-40°C to +70°C Storage time from a fully charged condition: 12 months at 20°C ~25°C ; for each 9°C rise, reduce the storage time by half. |
|
More than 250 quality control checks. Reinforcing fiberglass mat & critical pressure control valve
Reinforced ABS(UL94HB) container and cover compliant with UL94 V-0 with an Oxygen limiting Index of greater than 28%; Flame arresting, low pressure safety release veniting system for individual cells, recognized per UL924. |
|
Thick positive plate design for maximum service float life- 12 years design life @ 20°C(68°F). Advanced lead tin calcium alloy, reduces grid corrosion and promotes long battery life; |
|
|
|
|
|
|
 |
|
 |
|
 |
|
Assured quality |
|
Easy installation & maintenece |
|
VRLA recombinant technology |
|
These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896, IEC61427 |
|
Multicell design for ease of installation and maintenance; Horizontal or vertical operation |
|
High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency. |
|
|
|
|
|
|
Construction:
 |
|
① Plates: Pb-Ca-Sn-Al lead alloy, optimized for high corrosion resistance;
② Separator:Highly porous glass micro-fibre separator, optimized for low internal resistance;
③ Standard housing: reinforced ABS(UL94HB) container and cover; Optional housing: flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 20%;
④ Terminals:Silver plated copper female insert for easy and safe assembly & maintenance free connection with excellent conductivity;
⑤ Valve:Release gas in case of excess pressure & protects the cell against atmosphere. |
Applications:
• Solar / Photovoltaic; • Wind Generation; • Broadband ; • Microwave; • UPS/EPS; • Water Pumping; • Telecommunications; • Cathodic Protection; • Signaling;
