SUNKEAN 4mm2 EN 50618 Single Solar Cable is anti-ultraviolet, anti-ozone, anti-crystallization and high temperature resistance, and the material will not melt or flow.
Rated Voltage :
1500VDC
DC1500V high voltage 4mm2 H1Z2Z2-K Single Core Solar Cable
*EN50618 Approval
*Electron-beam cross-linked compounds
*UV,ozone and hydrolysis resistant
*High temperature resistance, the materials do not melt or flow
*Good cold flexibility
*Very long service life ＞25 years at 90℃
*Compatible to all popular connectors
Product description:
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6500V AC |
|
Temperature Rating |
Rated: -40°C to +90°C Max.conductor temp: +120°C Short Circuit: +250°C |
Minimum Bending Radius |
Ø≤12mm 4 x overall diameter Ø>12mm 10 x overall diameter |
|
Testing Standard |
Smoke Density Test : transmittance≥60% EN50618 Cold Bending Test : -40°C±2°C no crack EN60811-504 |
|
|
|
Cable Name |
Cross Section
(mm²）
|
Construction
(No./mm)
|
Insulation O.D. (mm) |
Cable O.D. (mm) |
Conductor resistance Max (Ώ/km) |
|
H1Z2Z2-K Single Core
EN50618
|
1.5 |
30/0.25 |
3.05 |
4.7 |
13.7 |
| 2.5 |
49/0.25 |
3.50 |
5.2 |
8.21 |
|
| 4.0 |
56/0.285 |
3.85 |
5.5 |
5.09 |
|
| 6.0 |
84/0.285 |
4.45 |
6.1 |
3.39 |
|
| 10 |
77/0.4 |
5.50 |
7.2 |
1.85 |
|
| 16 |
126/0.4 |
6.90 |
8.8 |
1.24 |
|
| 25 |
196/0.4 |
8.70 |
10.8 |
0.795 |
|
| 35 |
276/0.4 |
10.00 |
12.4 |
0.565 |
4 Core 4mm2 Cable Packing & Delivery:

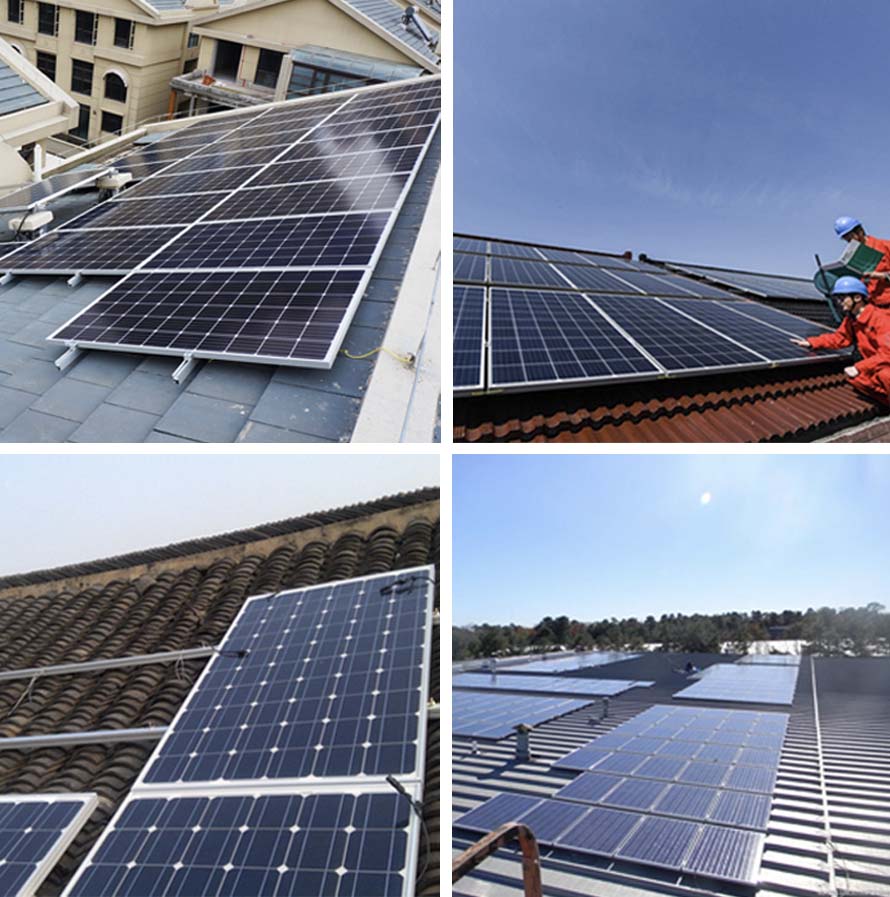

Application Scenario:
