TUV approved DC1500V 3in1 branch connector, can be used to connect solar panels in parallel or series.
TUV approved DC1500V 3in1 branch connector, can be used to connect solar panels in parallel or series.
Rated Current :
35ARated Voltage :
1500VDC

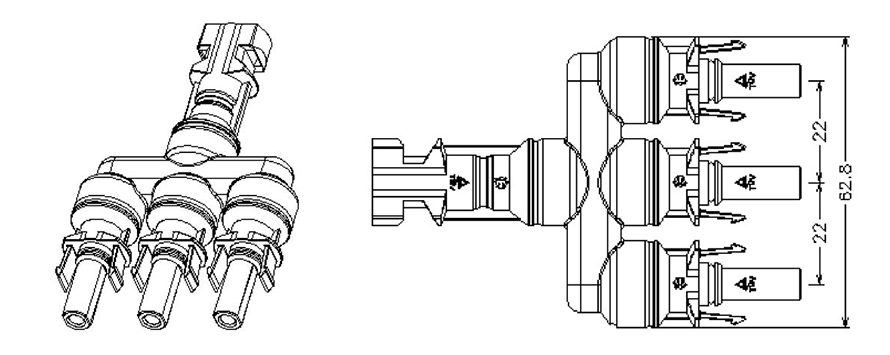

DC1500V 3in1 PV4.0 Branch Connector
*TUV approved branch connector
*Compatible with MC4 connector
*Low contact resistance
*IP68 protection class
*Easy to install
*Stable connection & low maintenance cost
*Suitable for outdoor harsh environment
Solar branch connector 1500VDC 3in1:
|
Insulation material |
PPE |
Safety degree |
II |
|
Rated current |
35A |
Flame class |
UL94-V0 |
|
Rated lmpulse voltage |
12KV |
Installation type |
(F1)Outdoor,UV resistant(F1) |
|
Rated voltage |
1500VDC |
Ambient temperature range |
-40℃...+85℃(IEC) |
|
Test voltage |
8kV(50Hz,1min) |
Upper limiting temperature |
110℃(IEC) |
|
Contact resistance |
<0.25mΏ |
Overvoltage category/Pollution degree |
CATІІІ/2 |
|
Contact material |
Copper,Tin plated |
Rated lmpulse voltage |
16kV |
|
Degree of protection |
IP68 |
Regulatory approval |
TUV/CE(IEC62852:2014) |
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Solar PV connector, solar cables, solar extension cables , solar panel for domestic use, Solar Panel Branch Connector, inverters etc solar products .SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
