Brass or stainless steel outlets/connectors/tanks. Controller is waterproof and leak-proof: has a double sealing effect. Alloy mechanical seal: long life and high reliability.
Brass or stainless steel outlets/connectors/tanks. Controller is waterproof and leak-proof: has a double sealing effect. Alloy mechanical seal: long life and high reliability.
Warranty :
2 YEARSDC 72V Peripheral Surface Solar Pump for Farm using
Features
1. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
2. Intelligent water shortage protection: The pump stops working automatically when there is no water in the well, and automatically
start working 30 minutes later.
3. Controller:
1)Waterproof grade: IP65
2)Ambient temperature:-15℃~60℃
3)MPPT function, the solar power utilization rate is higher.
4)Sofe start: No impulse current, protect the pump motor.
5)High voltage/Low voltage/Over-current/High temperature protection.
4. 2 years warranty.
5. 72V peripheral surface solar pump for farm using.
|

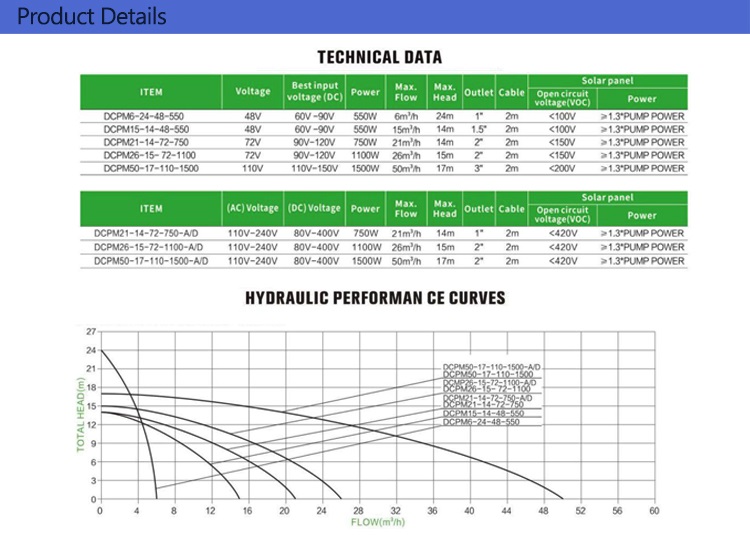

Item |
Voltage | Best input voltage(DC) | Power | Max.Flow | Max.Head | Outlet | Cable | Solar panel | |
| Open circuit voltage (VOC) | Power | ||||||||
| DCPM6-24-48-550 | 48V | 60V-90V | 550W | 6m³/h | 24m | 1" | 2m | <100V | ≥1.3*PUMP POWER |
|
DCPM15-14-48-550 |
48V |
60V-90V |
550W |
15m³/h |
14m |
1.5" |
2m |
<100V |
≥1.3*PUMP POWER |
|
DCPM21-14-72-750 |
72V | 90V-120V | 750W |
21m³/h |
14m |
2" |
2m |
<150V |
≥1.3*PUMP POWER |
|
DCPM26-15-72-1100 |
72V |
90V-120V |
110W |
26m³/h |
15m |
2" |
2m |
<150V |
≥1.3*PUMP POWER |
|
DCPM50-17-110-1500 |
110V | 110V-150V | 1500W |
50m³/h |
17m |
3" |
2m |
<200V |
≥1.3*PUMP POWER |
|
DCPM21-14-72-750-A/D |
110V-240V |
80V-400V |
750W |
21m³/h |
14m |
1" |
2m |
<420V |
≥1.3*PUMP POWER |
|
DCPM26-15-72-1100-A/D |
110V-240V |
80V-400V |
1100W |
26m³/h |
15m |
2" |
2m |
<420V |
≥1.3*PUMP POWER |
|
DCPM50-17-110-1500-A/D |
110V-240V |
80V-400V |
1500W |
50m³/h |
17m |
2" |
2m |
<420V |
≥1.3*PUMP POWER |
| More technical data details please contact GREYSTONE team,thank you! | |||||||||
1. A: Can I have sample order for solar water pump?
Q: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. A: Do we need to pay attention to the connection between the controller and the pump of this product?
Q: Yes, of course. The controller must match with the recommended solar pumps. Please do not use the controller for
other pumps. If the pump problem is caused by this reason, we do not bare any responsibility. For the perfect
performance and long-life working, the controller should be kept away from strike, shake, sunshine, salt mist, oil mist and etc.
3. A: What's the warranty?
Q: 2 years.
4. A: Any contact details?
Q: Please contact us by trade manager, Email, Whatsapp or Wechat. Surely call me when you need.
5. A: What are the uses of this solar water pump?
Q: It usually used in Solar Powered Water Pump for House using, and it is solar water pump with battery backup.
