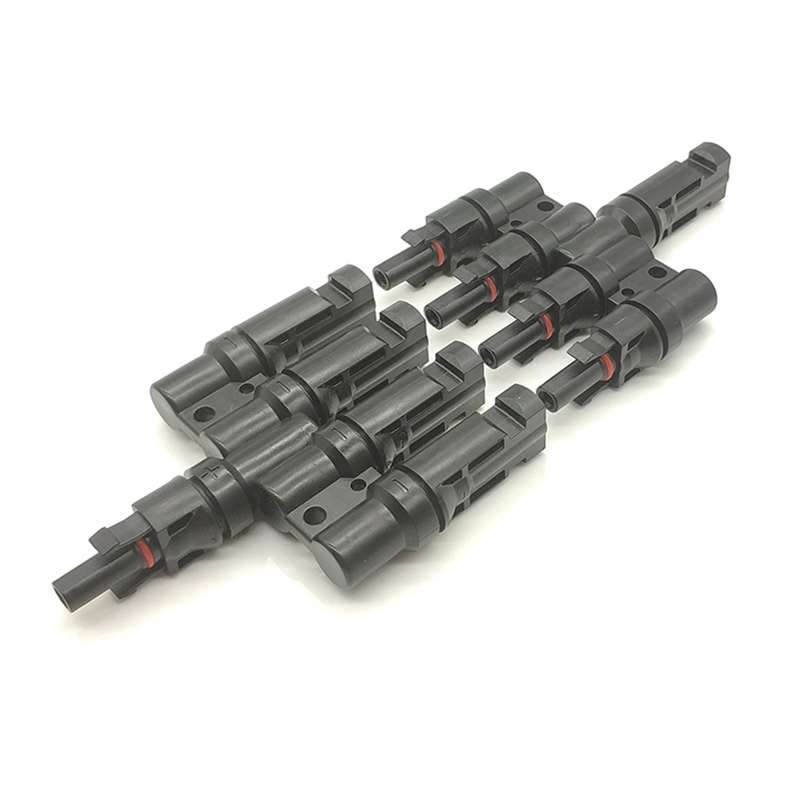

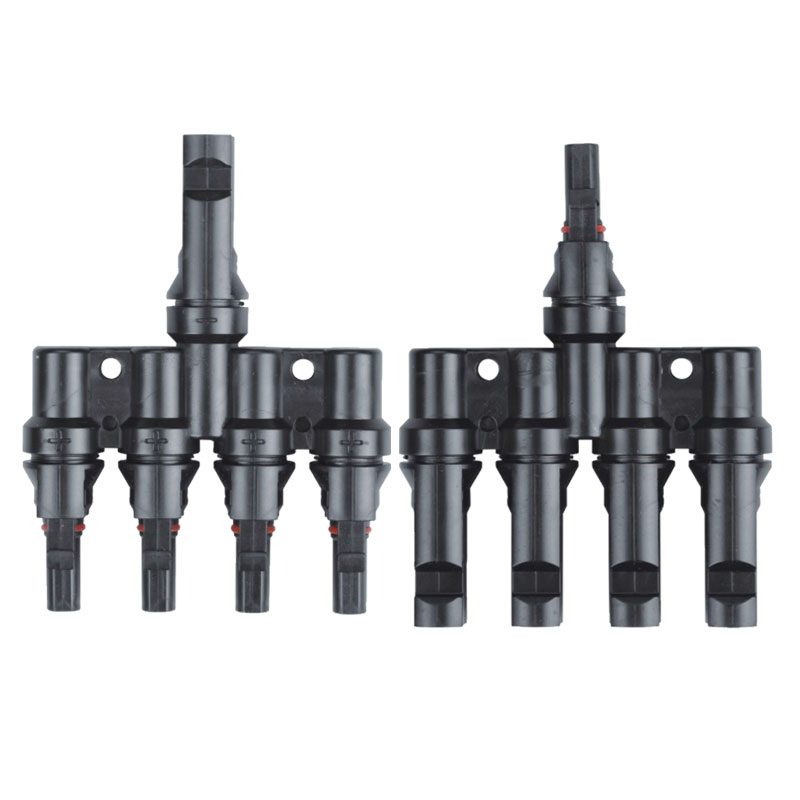

solar photovoltaic connector, T-type four-way splitter, 4 to 1, IP67 waterproof
solar photovoltaic connector, T-type four-way splitter, 4 to 1, IP67 waterproof
DC 1000V solar branch wiring connector T4
| Description Of Solar Branch Connector |
It has the characteristics of fast and reliable connection, waterproof and dustproof, and convenient to use. Application: roof, greenhouse cultivation, traffic scene lighting, parking lot charging station, commercial building, deep well drinking water/irrigation, marine research, oil pipeline, etc.
| Drawings Of T4 Solar Connector |
Technical Data For MC4 Solar Connector
|
Pin Dimensions: |
φ4 mm |
Temperature range: |
-40℃...+85℃ |
| Rated Voltage: | 1500 V DC | Rated current: | 30 A |
| Degree of protection, mated: | IP67 | Flame class: | UL-94-V0 |
| Contact resistance: | ＜ 0.5 mΩ | Contact material: | Copper, tin plated |
| Insulation material: |
PPO |
| Feature Of Solar DC Connector |
Four-way T type: safe connection, easy to assemble
Repeated plugging and unplugging: long life, automatic locking provides safe docking
PPO engineering plastics: high-strength PPO material, high rigidity, heat-resistant, flame-retardant, wear-resistant, anti-fouling
High-strength waterproof ring: IP67 waterproof grade, dustproof and waterproof can extend product life
|
