V9 is with small size, 16 channels, flashlight
V9 is with small size, 16 channels, flashlight

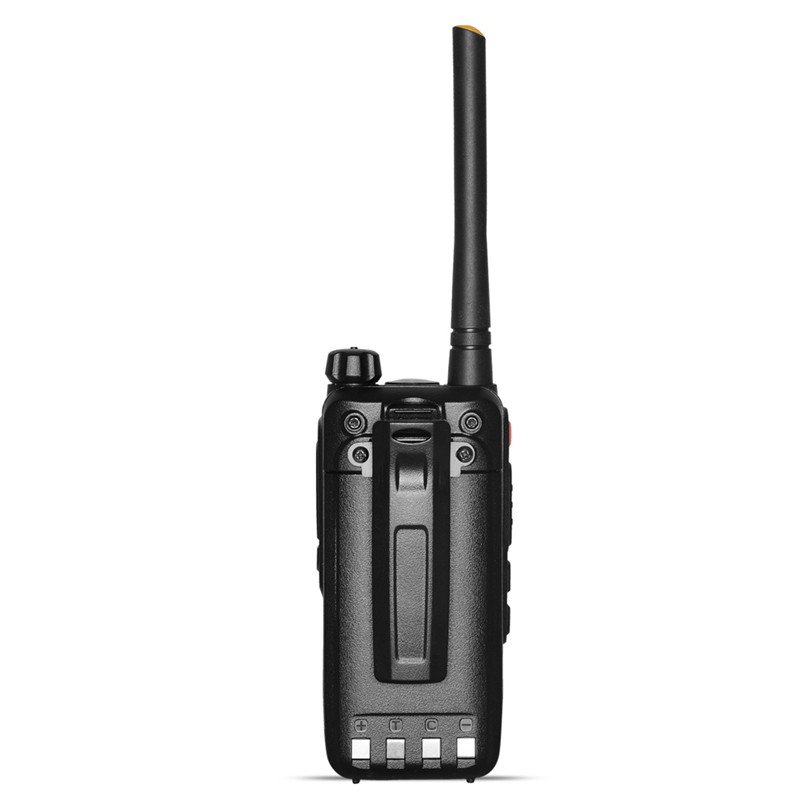

Customized mini protable two-way radio compact radio
1.compact size can be easy carry, and easy operation.
2.16 channels can be set to PMR446
3.Flashling which enables you stay safe in the darkness
Features
16 Programmable Channels
·CTCSS/DCS Code
·High/Low power switchable
·Wide/Narrow Band Switching
·Battery Saving
·Low Battery Alerts
·Programmable side keys
·Monitor
·Scanning
Flashlight
Technical parameters
General
Frequency
UHF： 400-470MHz
Channel capacity
16
Channel spacing
25kHz/12.5kHz
Voltage
3.7 V DC ±20%
Working mode
Same frequency simplex or different frequency simplex
Antenna
Integrated antenna
Frequency stability
±2.5ppm
Temperature
－20 ~ ＋60℃
Battery capacity
1000mAh
Dimension
127mm X 58mm X 35mm
Weight
200g
Transmitter
RF output power
1.5W/0.5W
Modulation mode
F3E
Maximum frequency deviation（W/N）
≤5KHz /≤2.5KHz
SNR ratio（W/N）
-45dB/ -40dB
Stray power
≤7.5uW
TX current
1.0A; L:0.6A
Receiver
RX sensitivity（W/N）
0.22μV/ 0.25μV 12dB SINAD
Audio distortion
≤5％
Audio output power
≤1W（8 Ω）
RX current
≤0.35A
Note: The above parameters are subject to change without prior notice!
