35*72*17mm CSK35PP One way Bearing ,thie bearing can used for fitness equipment
35*72*17mm CSK35PP One way Bearing ,thie bearing can used for fitness equipment
CSK35 One Way Bearing Sprag Freewheel Backstop Clutch Introduction :
Bearing No. : CSK35PP Bearing
Type: One-way Clutch Bearing
Dimension :
Inner Diameter: 35mm
Outer Diameter: 72mm
Width: 17mm
Materials:
Product Seal: two side Seal
Ball Material: Chrome Steel
Rings Material :Chrome Steel
Retainer Material: Metal or High Speed Plastic
We also can produce according to customer's requirements produce CSK12 bearing with stainless steel 420
Suffix Designations Explain :
No suffix after number: no keyway in races
With One Single P: one keyway in inner race
With Double PP : Keyways in inner and outer races.
Below here is picutre for your reference ,we can produce other one way clutch bearing for you .

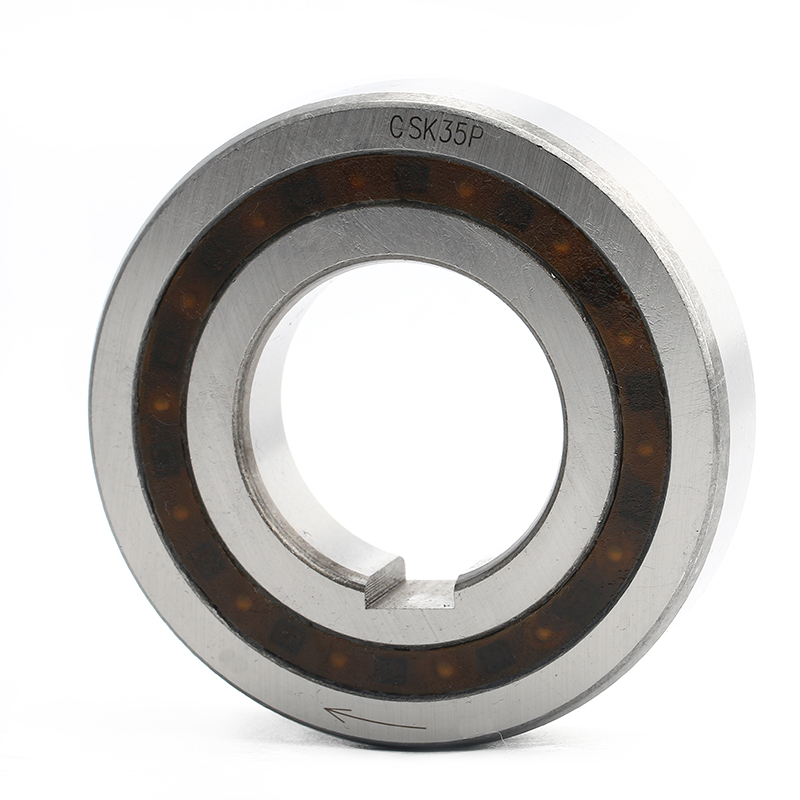

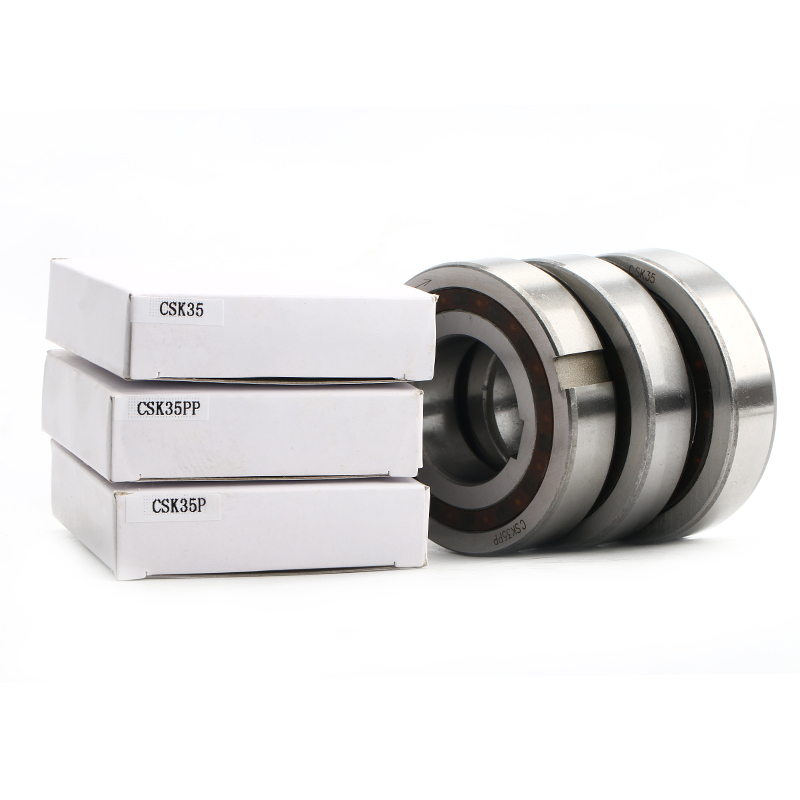

CSK 35 PP One-Way Bearing 35x72x17mm Picture Show :
The CSK model freewheel is a sprag type clutch integrated into a 6200 series ball bearing (except sizes 8 and 40). It provides you with a one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space.we can produce different CSK one way clutch bearing .
