CP-900 is with non-standard CTCSS/DCS, FM optional frequency.
CP-900 is with non-standard CTCSS/DCS, FM optional frequency.

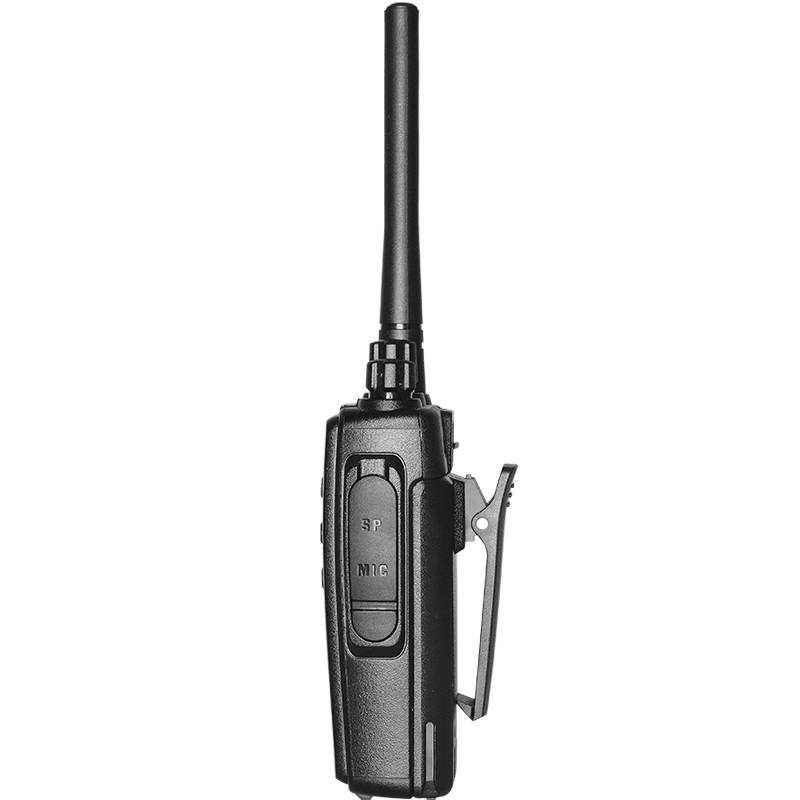

Portable mini two way radio voki toki radio
1.Non-standard CTCSS/DCS which help you protect your communication.
2.FM frequency can be added to this radio according to market demand.
Advantages of this radio:
Features
16 channel capacity
CTCSS/DCS
Wide/narrow band
Squelch
Hands free VOX
Busy channel lockout
Low battery alerts
TOT
Monitor
Scanning
Battery save
High/low power
Beep roger
Keypad lock
Battery % indicator
Technical parameters
General |
|
Frequency |
UHF: 400-470MHz or VHF: 136-174mhz or PMR446/ FRS/ GMRS/ LPD |
Channel capacity |
16 channels |
Channel spacing |
25kHz/12.5kHz |
Voltage |
DC 4.2V |
Working mode |
Same frequency simplex or different frequency simplex |
Antenna |
Removable antenna/ fixed antenna(PMR446/FRS/GMRS version) |
Frequency stability |
±2.5ppm |
Temperature |
-20 ~ +50℃ |
Dimension |
110mm X 56mm X 35mm |
Weight |
210g |
Transmitter |
|
RF output power |
0.5W/2W |
Modulation mode |
F3E |
Maximum frequency deviation(W/N) |
≤5KHz /≤2.5KHz |
Adjacent channel power |
-65dB(W)/ -60dB(N) |
Stray power |
≤7.5uW |
TX current |
≤1.3A |
Receiver |
|
RX sensitivity(W/N) |
0.22μV@25KHz/ 0.25μV@12.5KHz (12dB SINAD) |
Audio distortion |
≤10% |
Audio output power |
≤1W(8 Ω) |
Note: The above parameters are subject to change without prior notice!
