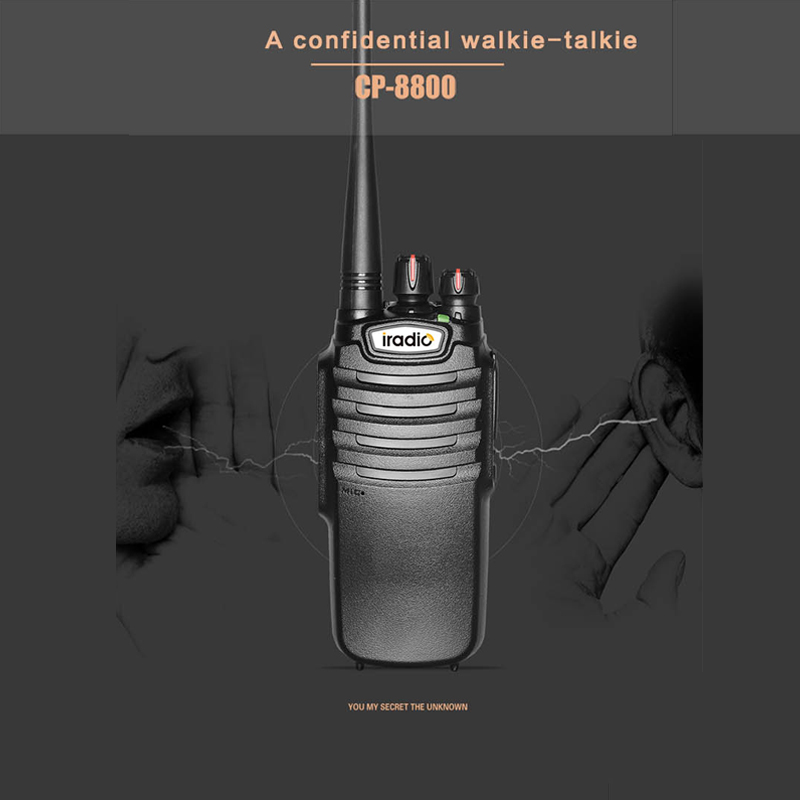

CP-8800 10W long range rugged handheld two way radio

CP-8800 is with long talking range, long standby, rugged design, strong penetration


Product Details

10W long range rugged handheld two way radio


1.long talking range: CP-8800 is 10W radio whose talking range is up to 10kms in the open air, which allows long distant talking range, can be used in logistics, construction sites.

2.Long standby: the battery is 2800mAh, large battery capacity allows long time standby and also battery capacity can be change to 3500mAh, is subject to the demand.

3.Rugged design & high quality audio: it can withstand shocks and usde in construction sites or other harsh environment



Main Features:


  • 2800mAh battery capacity, long standby
  • 10W output power, long talking range
  • Clear and high quality audio
  • Wide frequency range:
UHF:400-480MHz; VHF:136-174MHz;
  • 16 programmable channels
  • CTCSS/DCS code




  • TOT
  • Wide/Narrow band selection
  • Built-in VOX
  • Emergency alarm
  • High/low power selection
  • Voice compandor
  • Voice encryption scrambler



Specifications

General
Frequency Range 136-174MHz/400-480MHz
Channel Capacity 16
Cnannel Spacing 12.5KHz/25KHz
Antenna Impedance 50Ω
Working Voltage 7.4V DC
Working Temperature -10°~+35°
Dimension 135mm*56mm*38mm
Weight 260g without battery &antenna
Transmitter
RF Output Power 4/8W
Modulation Mode F3E
Maximum Frequency Deviation ≤5KHz/2.5KHz
Adjacent Channel Power -65dB/-60dB
Stray Power ≤7.5uW
Receiver
RX Sensitivity <0.18μV
Audio Distortion ≤7%
Audio Output Power ≤1W
Intermodulation 60dB
Clutter Suppression ≥65dB


CP-8800 long range handheld two way radio
