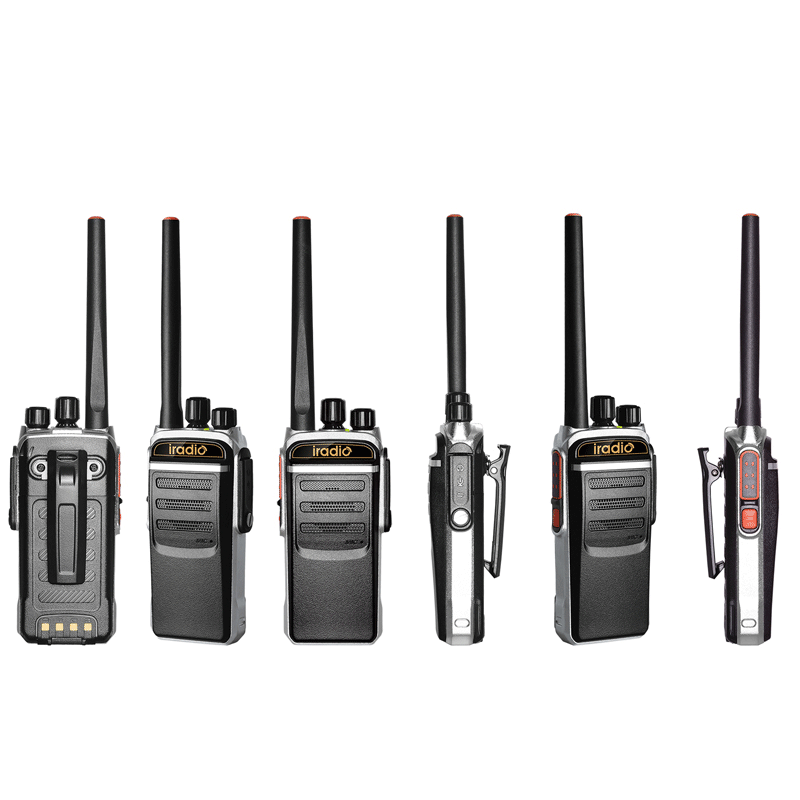

CP-1000 5W UHF professional radio is made of full aluminum case, palm-size, easy operation, multi functions, can be used in harsh environments.
CP-1000 5W UHF professional radio is made of full aluminum case, palm-size, easy operation, multi functions, can be used in harsh environments.
5W UHF VHF portable professional wireless two way radio
1.aluminum case: we use aluminum case instead of aluminum coating, which makes it more durable and can be used in construction sites, logistics and other more harsh environments.
2.compact design: it is about 140mm length, 63mm width, and 33 mm thickness, palm-sized, which is much easier to carry with.
3.can be made to be UHF or VHF, which is subject to market demand.
Main Features:
|
|
|
Specifications
|
General |
|
| Frequency Range | 136-174MHz/400-480MHz |
| Channel Capacity | 16 |
| Cnannel Spacing | 12.5KHz/25KHz |
| Antenna Impedance | 50Ω |
| Working Voltage | 7.4V DC |
| Working Temperature | -20°~+60° |
| Dimension | 140mm*63mm*33mm |
| Weight | 294g including battery |
| Transmitter | |
| RF Output Power | 0.5/5W |
| Modulation Mode | F3E |
| Maximum Frequency Deviation |
≤5KHz/2.5KHz |
| Adjacent Channel Power | -65dB/-60dB |
| Receiver | |
| RX Sensitivity |
＜0.18μV |
| Audio Distortion |
≤7% |
| Audio Output Power |
≤1W |
| Intermodulation | 60dB |
