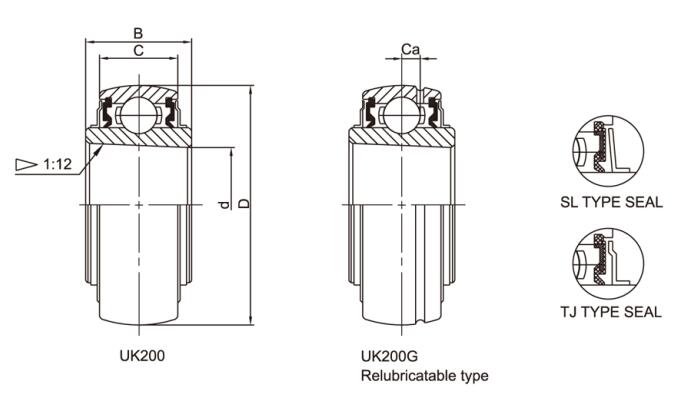

UK Standard duty, Tapered bore, Adapter sleeve locking
UK Standard duty, Tapered bore, Adapter sleeve locking
| Bearing No. | Dimensions(mm) |
Basic Load Rating
( KN )
|
Weight | ||||||
| d1 | d | D | B | C | Ca | Dvnamic Cr | Static Cor | (kg) | |
| UK205 | 20 | 25 | 52 | 23 | 17 | 4 | 14.03 | 8.05 | 0.21 |
| UK206 | 25 | 30 | 62 | 26 | 19 | 5.3 | 19.47 | 11.43 | 0.31 |
| UK207 | 30 | 35 | 72 | 28 | 20 | 5.8 | 25.69 | 15.55 | 0.46 |
| UK208 | 35 | 40 | 80 | 29 | 21 | 6.2 | 29.51 | 18.14 | 0.63 |
| UK209 | 40 | 45 | 85 | 30 | 22 | 6.5 | 31.85 | 20.8 | 0.68 |
| UK210 | 45 | 50 | 90 | 32 | 24 | 7 | 34.99 | 23.7 | 0.78 |
| UK211 | 50 | 55 | 100 | 36 | 25 | 7.4 | 43.34 | 29.39 | 1.07 |
| UK212 | 55 | 60 | 110 | 38 | 27 | 7.6 | 47.68 | 33.43 | 1.51 |
| UK213 | 60 | 65 | 120 | 40 | 28 | 8.5 | 57.2 | 40.01 | 1.86 |
| UK215 | 65 | 75 | 130 | 43 | 30 | 9.2 | 62.08 | 44.82 | 2.21 |
| UK216 | 70 | 80 | 140 | 45 | 33 | 9.5 | 72.62 | 53.34 | 2.79 |
| UK217 | 75 | 85 | 150 | 46 | 35 | 11.1 | 83.15 | 65.54 | 3.38 |
| UK218 | 80 | 90 | 160 | 47 | 37 | 11.8 | 95.84 | 72.64 | 4.46 |
