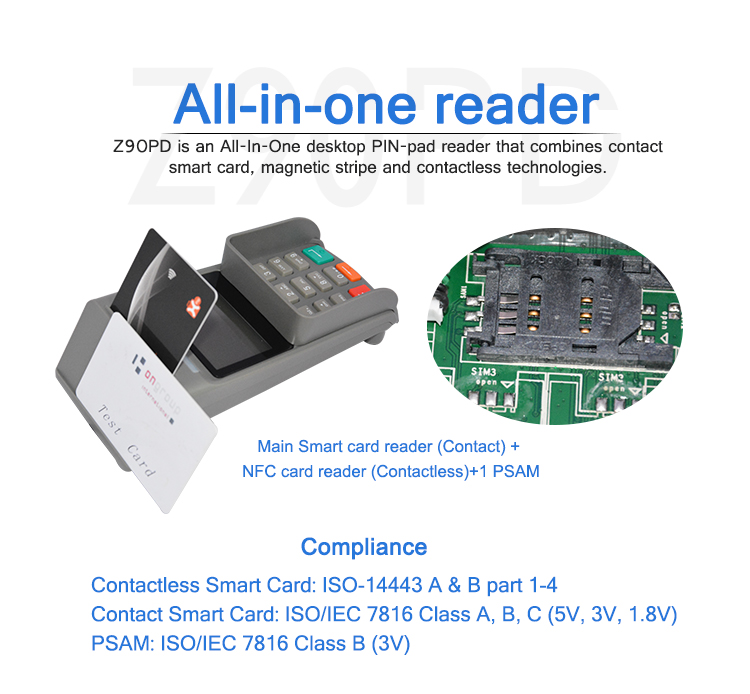

Z90PD is an All-In-One desktop PIN-pad reader that combines contact smart card, magnetic stripe and contactless technologies. It has LED indicators, 128 x 64 high-resolution graphical LCD, buzzer. Z90PD has passed the PBOC Level 1 and PBOC Level 2. It can be applied in banking, transportation, healthcare, government and retail sector.
Supported Card Types:
T=0 or T=1 protocol
ISO 7816-Compliant Class A, B, C (5V, 3V, 1.8V)
Cards following the I2C bus protocol (free memory cards) with capability, including:
Atmel: AT24C01/02/04/08/18/32/64/128
Cards with intelligent 1 KB EEPROM with write-protect function, including:
Infineon: SLE4418, SLE4428, SLE5518 and SLE5528
ISO 14443-Compliant, Type A & B Standard, parts 1 to 4, T=CL protocol
MiFare® Classic
Track 1/2/3 reading
Bi-directional
Specification
|
Physical Specifications |
|
|
Case Color |
Black or Grey |
|
Weight |
310g |
|
Memory |
|
|
Memory |
2 KB Flash |
|
Power |
|
|
Power Source |
Battery |
|
Supply Voltage |
5 V DC |
|
Supply Current |
Max. 500 mA |
|
USB Interface |
|
|
Type |
Type A, USB full speed |
|
Power Source |
From USB |
|
Speed |
12 Mbps |
|
Firmware |
Upgradable through USB interface |
|
Interface Class |
HID compliance |
|
Cable Length |
1.5 m fixed cable |
|
Contactless Smart Card Interface |
|
|
Standard |
ISO-14443 A & B part 1-4 |
|
Protocol |
Mifare® Classic Protocols, T=CL |
|
Smart Card Read /Write Speed |
106 kbps |
|
Operating Distance |
Up to 40 mm |
|
Operating Frequency |
13.56 MHz |
|
Contact Smart Card Interface |
|
|
Number of Slots |
1 or 2 ID-1 Slots |
|
Standard |
ISO/IEC 7816 Class A, B, C (5V, 3V, 1.8V) |
|
Protocol |
T=0; T=1 |
|
Supply Current |
Max. 50 mA |
|
Short Circuit Protection |
(+5) V /GND on all pins |
|
Card Connector Type |
ICC Slot 0: Landing |
|
Smart Card Read /Write Speed |
9,600-115,200 bps |
|
Card Insertion Cycles |
Min. 200,000 |
|
SAM Card Interface |
|
|
Number of Slots |
4 ID-000 slots |
|
Card Connector Type |
Contact |
|
Standard |
ISO/IEC 7816 Class B (3V) |
|
Protocol |
T=0; T=1 |
|
Smart Card Read /Write Speed |
9,600-115,200 bps |
|
Magnetic Stripe Card Interface |
|
|
Standard |
ISO 7811 |
|
Track 1/2/3, Bi-directional |
|
|
Reading |
Supported |
|
Built-in Peripherals |
|
|
Keypad |
17 keys |
|
LCD Display |
128×64 dot-matrix LCD display with backlight |
|
Buzzer |
Monotone |
|
LED Status Indicators |
4 LEDs for indicating status (from left most: blue, yellow, green, red) |
|
PIN-pad Encryption |
|
|
Algorithm |
DES/3DES |
|
Standard |
X9.8, X9.9 |
|
Operating Conditions |
|
|
Temperature |
0°C – 50°C |
|
Humidity |
5% to 93%, non-condensing |
|
Certifications/Compliance |
ISO/IEC 7816, ISO/IEC 14443, PBOC Level 1, PBOC Level 2 |
|
Supported Operating Systems |
Windows® XP, Windows® 7, Windows® 8.1, Windows® 10 |
