Building Integrated Photovoltaic Solar Shingles

Building Integrated Photovoltaic,design and construction are integrated, building structure and green electricity system are suitable for integration.
Features and benefits
  • Warranty :

    12 years
  • Certificate :

    TUV, CE, IEC,
Product Details

GREYSTONE Building Integrated Photovoltaic Solar shingles Solar Panel


Product Details


Advantages

  • Integration of building materials to reduce roofing costs;
  • No bracket installation, reduce installation cost;
  • The left and right structure is waterproof, and the upper and lower double channels are waterproof, which is safe and reliable;
  • System-level heat dissipation and ventilation to reduce the internal temperature of the building;
  • Lightweight, reducing roof load-bearing requirements;
  • 3.2mm+3.2mm all-steel double glass structure, impact resistance 5400Pa+;
  • Structural wind-proof, resistant to grade 12 wind;
  • Advanced packaging technology, stable and reliable.


Product Specification

Structural parameters
Item model
GSBMT-S1/92W
GSBMT-V1/97W
Dimension 1508mm*420mm*23.5mm 1547mm*423mm*23.5mm
Colour
Black Black
Weight 11±0.5kg 11±0.5kg
Area 0.633㎡ 0.65㎡
Encapsulation type Double glass
Double glass
Type of solar cell Monocrystalline PERC
Monocrystalline PERC
Electrical parameters
Peak power(Pmax) 92W 97W
Peak voltage(Vmp) 9.03V 9.32V
Peak Current(Imp) 10.19A 10.19A
Open circuit voltage(Voc) 10.97V 11.66V
Short circuit current(Isc) 10.73A 10.73A
Carbon Neutrality Index
25-year power generation
2300kwh 2425kwh
25-year power generation equivalent to standard coal
700kg 740kg
25 years of power generation equivalent to carbon emission reduction
1870kg 1975kg


Working Diagram

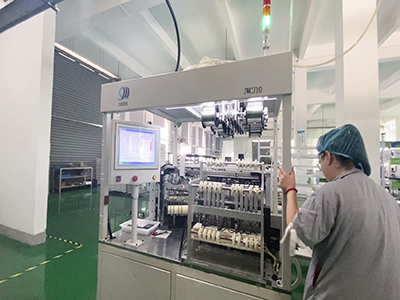

Factory


Projects







FAQ

Q1: Does your company accept LOGO customization?


A1: Sure, we could print your company LOGO on the products and package.



Q2: Do you accept customization on the size?


A2: Yea, if the size is reasonable.



Q3: What's types of solar panels do you supply?


A3: Mono-crystalline, Poly-crystalline, bifacial dual glass, shingled, flexible type, from 270w-700w



Q4: Do you sell solar cell and glass separately?


A4: Yes, just feel free to leave a message.



Q5: Is it possible for me to get a sample before production?


A5: Of course, samples could be offered for your evaluating the quality first.
