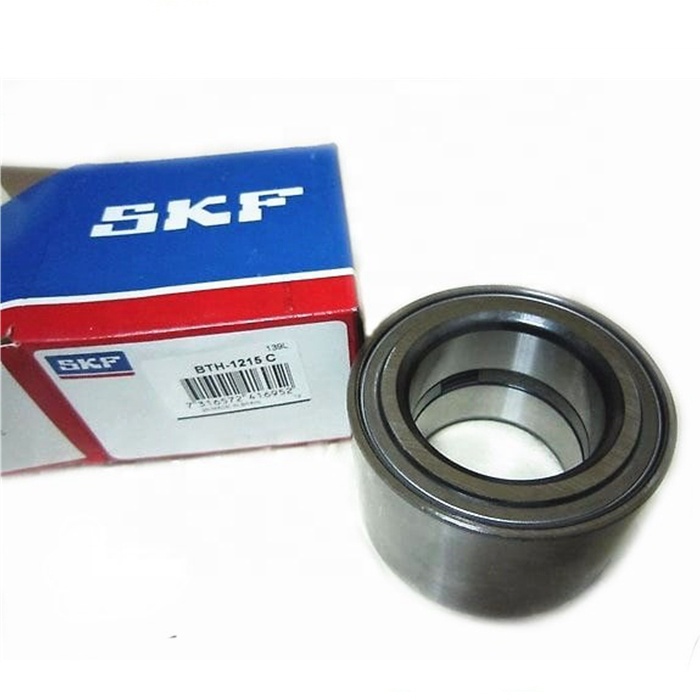

55 × 90 × 54mm BTH-1215C bearing can used for Front Axle for different cars .
55 × 90 × 54mm BTH-1215C bearing can used for Front Axle for different cars .
Tapered Roller Bearing Wheel Bearing For Citroen Fiat / Peugeot Specification :
| Name： | Wheel Bearing |
| Type： | Double row tapered roller bearing |
| Bearings No： | BTH-1215 C |
| Position： | Front Axle |
| weight： | 1.250 KG/PC |
| Material： | GCr15 |
| Dimension： | 55*90*54mm |
| CAGE： | PA66+GF |
| SEAL： | 2RZ 08F+NBR |
| Rolling body： | Tapered roller |
| ABS： | Yes |
BTH-1215 C Tapered Roller Double Row Application For:
2006- CITROEN JUMPER Box 2.2/3.0
2006- CITROEN JUMPER Bus 2.2/3.0
2006- CITROEN JUMPER Flatbed / Chassis 2.2/3.0
2006- PEUGEOT BOXER Box 2.2/3.0
2006- PEUGEOT BOXER Bus 2.2/3.0
2006- PEUGEOT BOXER Flatbed / Chassis 2.2/3.0
2006- FIAT DUCATO Box
2006- FIAT DUCATO Bus
2006-FIAT DUCATO Flatbed / Chassis
2010- OPEL MOVANO B Box
2010- OPEL MOVANO B Platform/Chassis
2010- OPEL MOVANO B Bus
2010- RENAULT MASTER III Box (FV)
2010- RENAULT MASTER III Platform/Chassis
OEM NO.:
BTH-1215C,C00017215,VKBA6570,3326.71,51745702
93197149,40210-3708R,402103708R,332671,DAC55900054
| Bearing No. | GERMANY | SWEDEN | JAPAN | Dimension(mm) | Weight | |||
| d1 | D | B | C | (kg) | ||||
| DAC255200206 | 565592 | 25 | 52 | 20.6 | 20.6 | 0.19 | ||
| DAC25520037 | 156704 | 25 | 52 | 37 | 37 | 0.31 | ||
| DAC25520042 | 617546A | 25BWD01 | 25 | 52 | 42 | 42 | 0.36 | |
| DAC25520043 | 546467/576467 | BT2B445539AA | 25 | 52 | 43 | 43 | 0.36 | |
| DAC25550043 | 25 | 55 | 43 | 43 | 0.44 | |||
| DAC25560032 | 445979 | BAH5000 | 25 | 56 | 32 | 32 | 0.34 | |
| DAC29530037 | 801023AB | 29 | 53 | 37 | 37 | 0.35 | ||
| DAC30600037 | 30 | 60 | 37 | 37 | 0.42 | |||
| DAC30600337 | 529891AB | BA2B633313CA | 30BWD07 | 30 | 60.3 | 37 | 37 | 0.42 |
| DAC30600337 | 545312/581736 | 434201B/VKBA1307 | 30BWD07 | 30 | 60.3 | 37 | 37 | 0.42 |
| DAC34620037 | 531910/561447 | BAHB311316B/309724 | 34 | 62 | 37 | 37 | 0.41 | |
| DAC34640034 | VKBA1382 | 34BWD03/ACA78 | 34 | 64 | 34 | 34 | 0.43 | |
| DAC34640037 | 532066DE | 605214/VKBA1306 | 34BWD04/BCA70 | 34 | 64 | 37 | 37 | 0.47 |
| DAC34640037 | 540466B/805231 | BA2B309726 | 34BWD11 | 34 | 64 | 37 | 37 | 0.47 |
| DAC34660037 | 559529/580400CA | 636114A/479399 | 34BWD10B | 34 | 66 | 37 | 37 | 0.5 |
| DAC35640037 | BAH0042 | 35 | 64 | 35 | 35 | 0.4 | ||
| DAC35650035 | 546238A | BA2B443952/445620B | 35 | 65 | 35 | 35 | 0.4 | |
 |
 |
