Bluetooth RFID Reader+Barcode Scanner

HR58 is 13.56M/125Khz non-contact RF card reader and 1D/2D barcode scanner based on barcode recognition, RFID radio frequency identification technology and Bluetooth communication.
Product Details

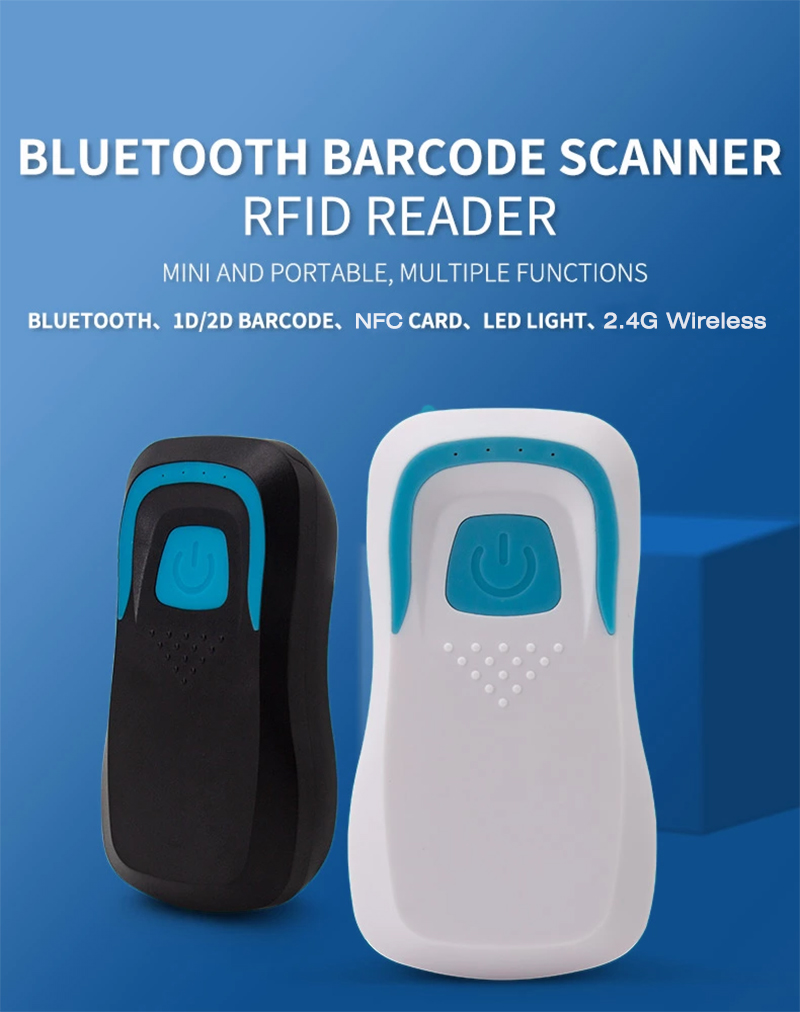

Bluetooth RFID Reader+Barcode Scanner HR58

HR58 is 13.56M/125Khz non-contact RF card reader and 1D/2D barcode scanner based on barcode recognition, RFID radio frequency identification technology and Bluetooth communication. Low power consumption, up to 3 days long standby time, no need traditional wired date transmission, also no need additional power supply (built-in Li-battery), just need Bluetooth pairing between receiving device and reader, then it will transmit the UID of RFID card to devices directly.


Features

No need password, easy pairing.

Long distance transmission, stable 10 meters.

Long standby time, when fully charged. (8 hours charging, 3 days standby).

Fast transmission, plug and play.

Easy charging with phone charger.

Default Enter when date output, no need manual click.

Widely used for Windows, IOS, Android and other Bluetooth enabled devices.






Specification

Model

HR58D:ID(125KHZ)

HR58C:IC(13.56MHZ)

HR58B:1D/2D Barcode

HR58BD:1D/2D Barcode + ID

HR58BC:1D/2D Barcode + IC

Frequency

125KHZ/13.56MHz

Card Type

S50/S70/Ntag203/Ntag213

Decode Capability:

1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128,  Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, China post etc.

2D: QR Code, Data Matrix,  etc

Communication

Bluetooth/2.4G

Format

Default 8-bit hex system (format customizable, like 10-bit 10 system/10-bit hex system etc)

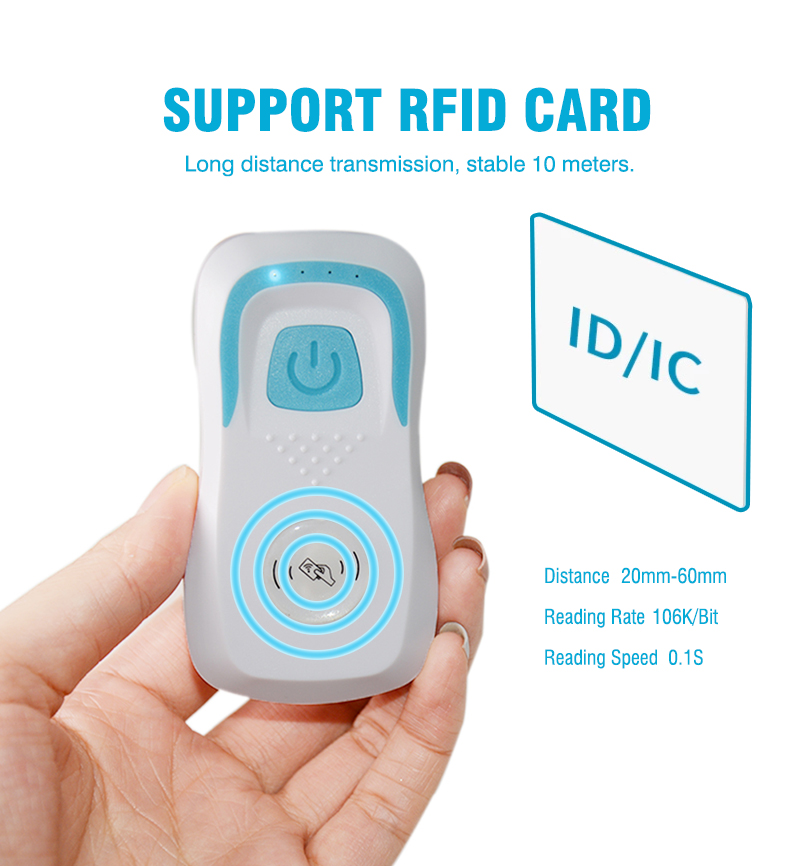

Distance

20mm-60mm (depend on card type)

Reading Rate

106K/Bit

Reading Speed

0.1S

Reading Interval

0.5S

Reading Time

<100mS

Working Temperature

-20℃—70℃

Working Current

100mA

Charge Voltage

5V

Dimensions

(product)/142mm×90mm×61mm (package)

Weight

50G (product)/150G (package)

Operating System

IOS, Win 7\Win 10\Android, etc

Others

Status indicator: 4-colors LED (white:connection status, red:scan confirmation, blue: indicator, green:power

Built-in buzzer
