Battery Monitoring System

EE-BMS-E1 is an comprehensive online battery monitoring system developed by EverExceed UK lab for UPS, telecom, power utility & solar etc applications. EE-BMS-E1 can monitor all cell voltage, internal resistance, current and temperature at regularly scheduled intervals. Ideally for your system real-on-time observation request, EE-BMS-E1 is a reliable monitoring system should be employed. EE-BMS-E1 can detect developing problems long before a critical situation develops. The user must, of course, pay attention to all alarms and perform the required corrective actions. It is particularly important to measure and record values during the installation and to look for trends over time. Changes in values over time, even though they may be within the manufacturer's allowable ranges, may be cause for concern and may require action.
Product Details

Technical features:


• Modular design, adapt to different battery applications.
• High reliability and stability,with precision algorithm.
• Compact size,on-site installation filexbility and easily.
• Patent algorinthm,to ensure the accuracy bf measurement.




Application:


•  Data Center
•  Railway Transp ort
•  Electricity Power
•  Radio and TV System

•  Telecom Base Station
•  Insurance Data Center
•  Medical
•  Aviation



Monitoring Items:


•  Cell Voltage
•  Cell Internal Resistance (IR)
•  Cell Temperature (Optional)
•  String Voltage

•  String Charge & Discharge
•  Current
•  String Ambient Temperature





System Alarm Items:


•  String Charge Voltage High/Low

•  Discharge Current High
•  Charge Current High

•  String Over-discharge

•  Cell Open Circuit


•  Cell Charge Voltage High/Low
•  Cell IR Over Limit
•  Cell Over Discharge

•  Cell Short Circuit

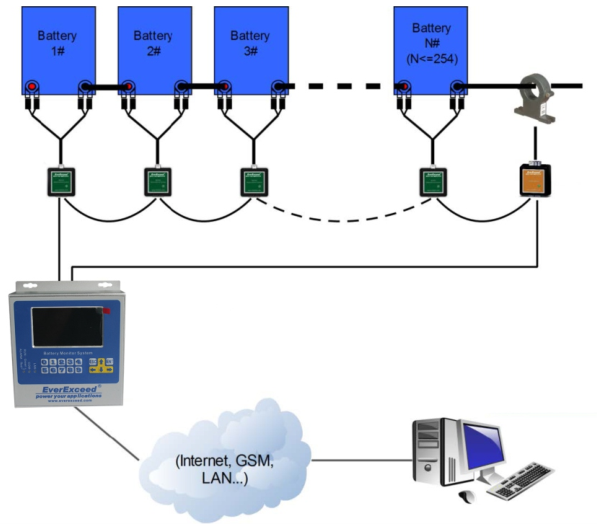

System Configuration:
