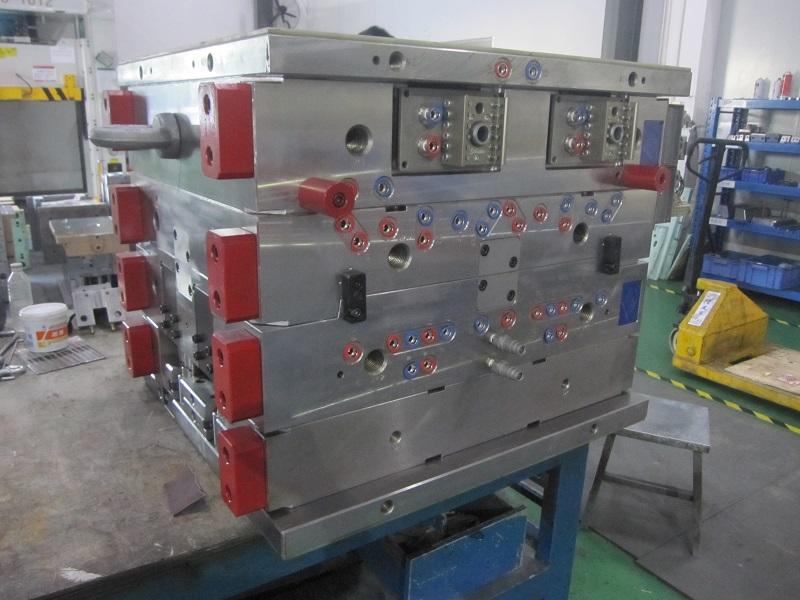

Automotive Adapter Frame Multi-Cavity Mold with Multi Lifters
Injection molds complement company's line of molding machines. Single- and multicavity molds in hardened tool steel for molding thermoplastics, polyurethane, and silicone elastomers. Timed nozzle shut-off pins facilitate molding of liquid and highly crystalline materials, and may be projected into molds to interface with cavity walls for rnnnefiess molding. Turnkey services include design, construction, testing, and debugging.
| Name | Automotive Adapter Frame Mould |
| Mold size | Custom Size |
| Mould material | 45#,50#,1.2312 ,1.2343 ESR,1.2738 HH , S136 ,NAK80 , SKD61 etc. |
| Mould base | LKM, HASCO ect. |
| Cavity | Single/multi |
| Runner | Hot/cold |
| Design software | UG, PROE, CAD, CAXA ect. |
| Mould life | 300,000-3,000,000 shots |
| Delivery time | 15-60days |
| Specification | Depends on customer's requirments |
| Shaping Mode | Plastic Injection Mould |
| Molding life | 500,000-5,000,000shots |
| Delivery time | Short mold development cycle |
| Packing | Standard exporting wooden case |
1) Receive customer's inquiry
2) We will quote guests within 24 hours
3) Confirm the order (price, payment terms, delivery date)
4) Product analysis (DFM)
5) After DFM confirmation by customer
6) Confirmation of mold design
7) Purchase steels and start machining processing
8) Inspection process
9) Mold core inspection is OK, start assembly
10) Tool tryout and deliver the samples to customer
11) Get feedback of samples from customer.
12) If there is a problem with the sample, repair the mold
13) After repaired , tryout and deliver samples to customer for confirmation again
14) After the sample is confirmed that there is no problem, the mold is arranged to be shipped
Please send 3D/2D drawing or samples to us if you have any needs, we will quote for free with a sound price.
Rapid production
Our digital manufacturing source for the fastest rapid prototyping and on-demand production parts. Our automated quoting and fabrication systems allow us to produce commercial grade plastic, metal and liquid silicone rubber parts within days. result? A manufacturing partner that helps you accelerate time-to-market and strategically manage demand fluctuations throughout the product lifecycle.
Endless options
Choose from millions of possible combinations of materials, finishes, tolerances, markings and certifications for your order.
Easy to use
Get parts right to your door without the hassle of purchasing, project management, logistics or shipping.
JHS is committed to the research and development, design and manufacture of various injection molds, and injection production, involving industries and fields such as electronics, automobiles, communications and household appliances.
CNC Machining Workshop
EDM Workshop
Quality Inspection Department
Wire Cutting Workshop
Injection Workshop
Assembly Workshop
Q: Do you make molds for many auto parts?
A: Yes, we make molds for many auto parts, such as bumpers, reversing radar parts, car control panels, rearview mirror brackets, etc.
Q: Do you have injection molding machines to produce parts?
A: Yes, we have our own injection workshop, so we can produce and assemble according to customer requirements.
Question: What kind of mold do you make?
A: We mainly manufacture injection molds, but we can also manufacture compression molds (for UF or SMC materials) and die casting molds.
Q: How long does it take to make a mold?
A: Depending on the product size and the complexity of the parts, it is slightly different. Generally speaking, a medium-sized mold can complete T1 within 25-30 days.
Q: Can we know the mold schedule without visiting your factory?
A: According to the contract, we will send you the mold production plan. During the production process, we will update you with weekly reports and related pictures. Therefore, you can clearly understand the mold schedule.
Q: How do you guarantee the quality?
A: We will appoint a project manager to track your molds, and he will be responsible for each process. In addition, we have QC for each process, and we will also have a CMM and online inspection system to ensure that all components are within tolerance.
Q: Do you support OEM?
A: Yes, we can produce through technical drawings or samples.
