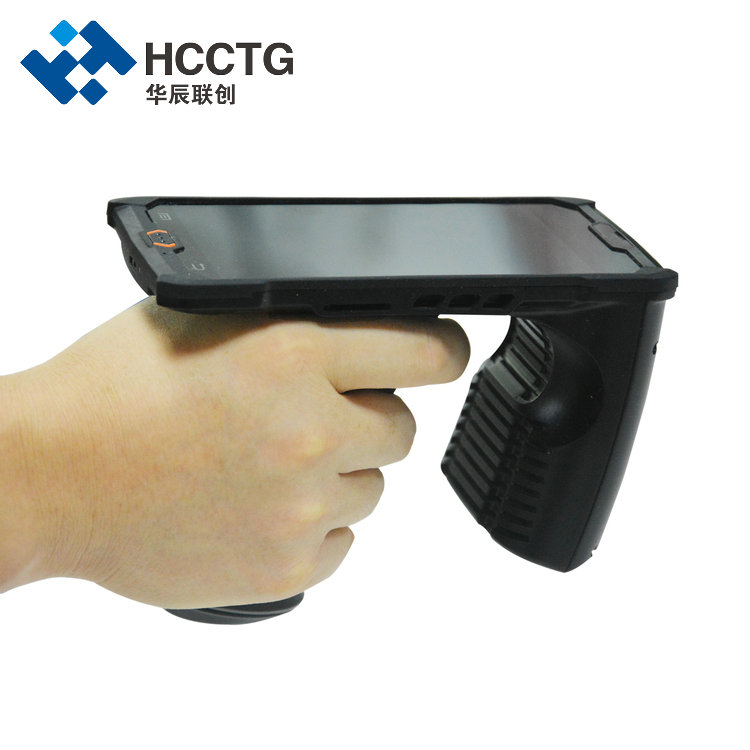

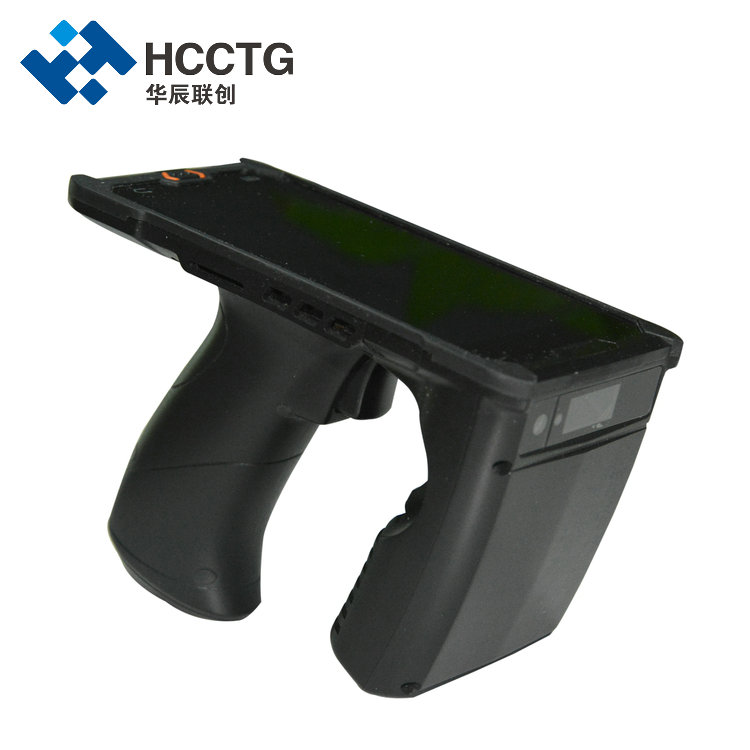

High Performance Industrial Rugged Barcode Reader Android Terminal PDA C50 UHF
It can work like a mobile manager of personal information and it's available in various types to do various types of functions like handheld barcode readers and RIFD scanners can help you in keep record of your operations and assets.
Due to its availability with different features, C50 UHF can be used in wide range of fields including logistics and transport, industrial manufacturing, inventory management, retail marketing, warehouse management, order management and asset management etc.
Specification
|
CPU |
ARM Cortex-A53 64 bit Octa-core 2.0GHz |
|
Operation System |
Android 9.0 |
|
Memory |
64GB ROM +4GB RAM |
|
Expansion Slot |
PSAM x 2; TF x 1; Micro SIM x 2; POGO Pin x 1; Type -C x 1 |
|
Display |
5.0' MIPI interface, HD_IPS (HD720 x 1280) |
|
Touch Panel |
Industrial touch screen (support glove touch) |
|
Camera |
13MP autofocus with LED fill light |
|
Imager Window |
Corning Gorilla |
|
Keyboard |
9keys,front:1*HOME key,1*return key,1*menu key Side:volume,2*custom keys,1*power key Bottom:1*trigger key |
|
Main Battery |
4.35V 7000mAh Lithium polymer battery |
|
Audio Frequency |
Built-in microphone |
|
Prompt |
Vibration Tip/LED Tip/Audio Tip |
|
Vibration Motor |
Built-in programmable vibration motor |
|
Dimension (LxWxD) |
153.03×76×120.96mm |
|
Weight |
660g (including battery) |
|
Network Spectrum |
2G:GSM (850/900/1800/1900MHz) 3G:WCDMA (850/900/1900/2100MHz) 4G:TDD-LTE (B38/B39/B40/B41) 4G:FDD-LTE (B1/B3/B5/B7) |
|
WWAN |
TDD-LTE/FDD-LTE/WCDMA/EDGE/GPRS |
|
WLAN |
Wi-Fi 802.11a/b/g/n |
|
WPAN |
Bluetooth 4.0 |
|
GPS |
GPS/AGPS, BDS |
|
1D Scanning (UE966) |
Optical resolution ≥ 4 mil, scanning depth of field 3.81 cm - 60.98 cm, scanning angle 47 ° ± 3 ° (standard), scanning speed 102 times ± 12 times per second (compatible with mainstream brands) 1D:UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5,Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post, etc. |
|

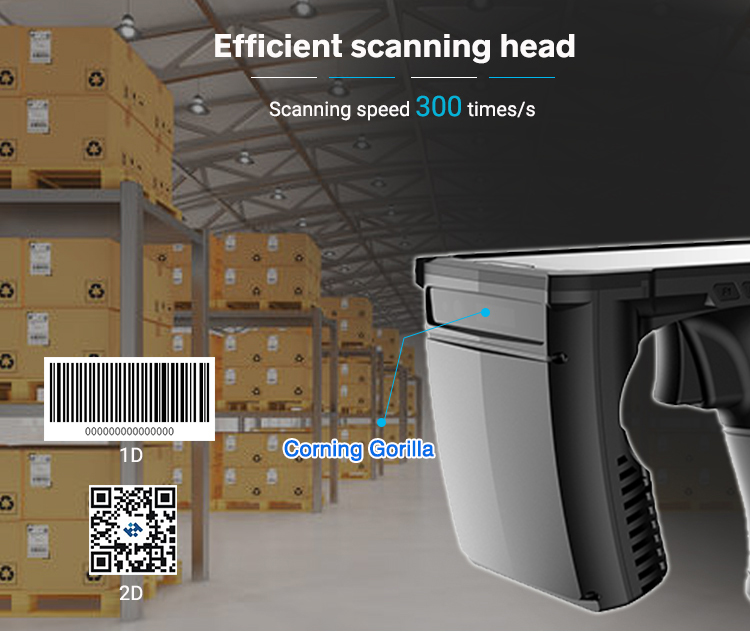

2D Scanning (5800SR) |
Optical resolution ≥ 3 mil, optical resolution omnidirectional, scanning speed 300 times/s 2D:PDF417, MicroPDF417, GS1 Composite,Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin code, etc. |
|
RFID |
UHF: support 840-960MHz UHF RFID, reading distance: 8 meters Supports reading and writing of EPC C1/G2, 18000-6C protocol cards and tags |
|
Built-in second-generation identity local module (identity ID) |
|
|
Standard Accessories |
Battery, adaptor, USB cable, strap |
|
Charging Interface |
Type-C |
|
Serial port |
RS232 |
|
Tool |
Andriod Studio+Eclipse |
|
Programming Language |
Java |
|

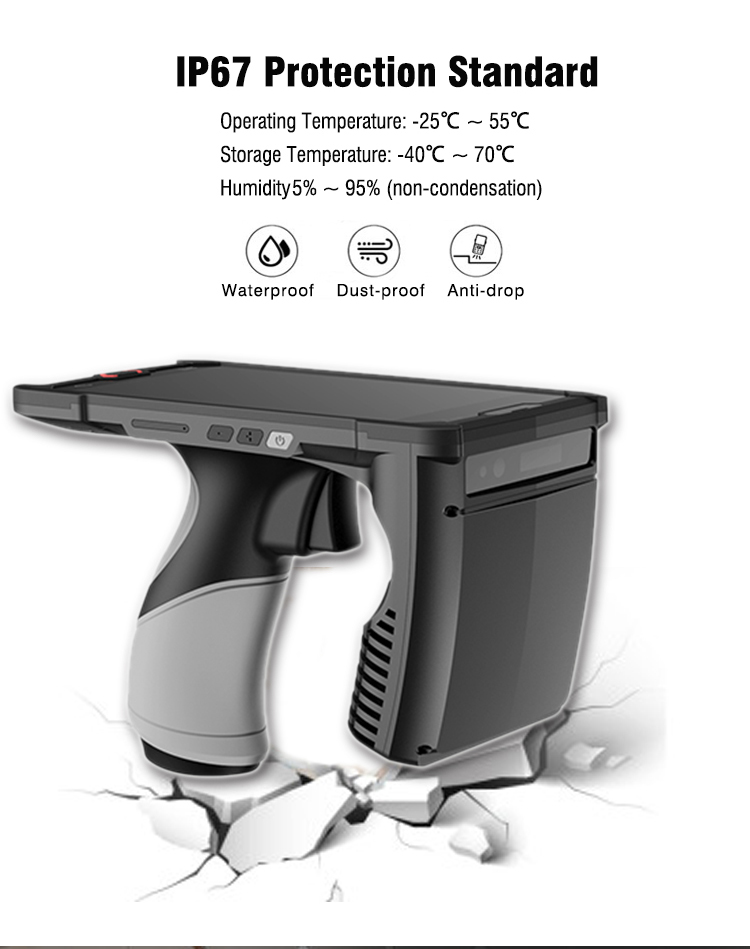

Operating Temperature |
-25℃ ~ 55℃ |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Humidity |
5% ~ 95% (non-condensation) |
|
Drop spec |
Multiple 1.2m drops to tile over concrete |
|
Sealing |
IP67 |
