Analog Compact Light Business Radio

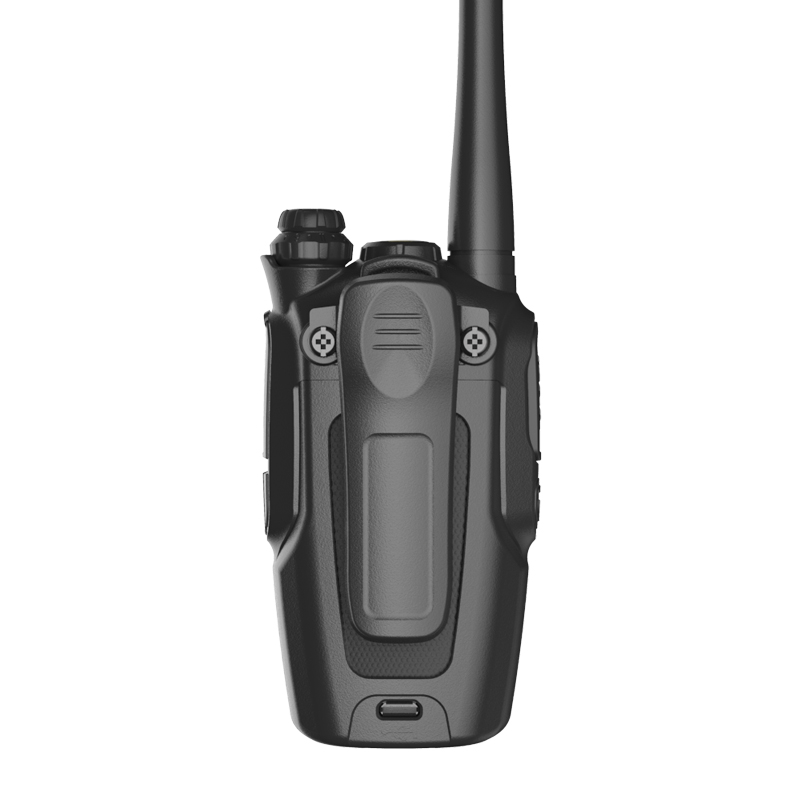

SenHaiX 2700 portable radio highlights small size, is business analog radio, combines convenience with flexibility.
Product Details

Product Name: Analog Compact Light Business Radio
Product Features
1. 16 Channels

2. Output Power: 2W
3. Voice Annunciation
4. Time-out Timers
5. VOX Function
6. Torch Light
7. Battery Saver
8. Low Battery Warning
9. TX End Tone
10. Channel Lock Out
11. CTCSS/DCS
12. Squelch Level Adjust
13. Wide/Narrow Band 25KHz/12.5KHz


Technical Specifications

General

Model No.

2700

Frequency Range

UHF 400-470MHz

VHF 136-174MHz

Channel Capacity

16CH

Channel Spacing

12.5KHz/25KHz

Operating Voltage

7.4V-8.4V DC

Battery Capacity

3000mAh (Li-Ion )

Operating Temperature

-20℃ to +50

Frequency Stability

±2.5ppm

Antenna Impedance

50Ω

Dimension

57x35x110mm

Weight

130g

Transmitter

Output Power

2watts

Modulation Type

16kφF3E(Wide Band)

11kφF3E(Narrow Band)

MAX. Frequency Deviation

<5KHZ(Wind Band)

<2.5KHZ(Narrow Band)

Adjacent Channel Power

≥60dB

S/N

≥45dB

Audio Distortion

≤3%

Audio Response

6dB/Each octave

FM

≤-36dB

Receiver

Sensitivity(12dB SINAD)

≤0.25uV(Wide Band)

≤0.35uV(Narrow Band)

Intermodulation

65dB

Adjacent Channel Selectivity

≥65dB(Wide Band) ≥60dB(Narrow Band)

S/N

≥50dB

Audio Response

6dB/Each octave

Rated Audio Distortion

≤3%

Audio Output Level

22dBMW(10%hours)

Rated Audio Output power

1000mw

Spurious Rejection

≥80dB

MAX. Frequency Deviation

<5KHZ(Wind Band)  <2.5KHZ(Narrow Band)


Standard Accessories
Business Radio Battery Senhaix  Business Radio Belt Clip Senhaix  Business Radio Antenna Senhaix


Business Radio Adaptor Senhaix  Business Radio Hand Strap
