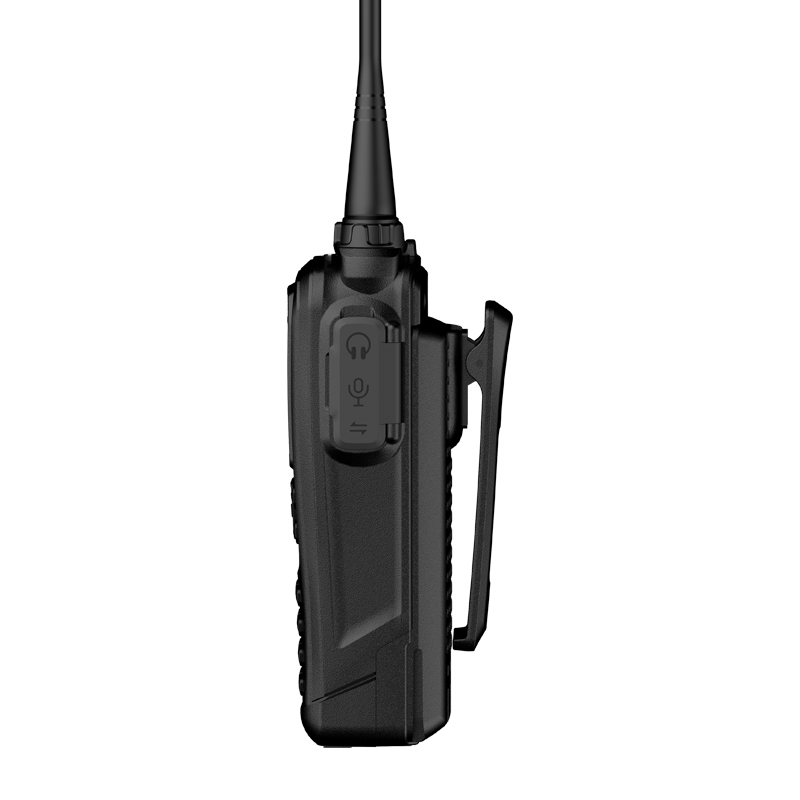

SenHaiX 6300D professional digital two way radio, is a compact, high quality device with a LCD screen and full keypad.
It is a popular choice and ideal for long shifts.
Product Name: Analog and DMR Two Way Radio
Technical Specifications
| General Specification | |
| Model No. | 6300D |
| Frequency Range | UHF 400-520MHZ |
| Operated Voltage | DC7.4-8.4V |
| Battery Capacity | 3000mAh |
| Storage Channel | 256CH |
| Dimension | 130x65x45mm (excluding antenna) |
| Weight | 340g |
| Transmitter | |
| Channel Spacing | 12.5KHz/25KHz/6.25KHz(DPMR) |
| Frequency Stability(-20℃, +60℃, +25℃) | ±1.5ppm |
| Output Power | L: 1W H: 6W |
| Modulation Limited | ±2.5KHz @ 12.5KHz |
| ±5.0KHz@ 25KHz | |
| FM hum and noise | -40dB @ 12.5KHz |
| -45dB @ 12.5KHz | |
| Conducted/radiated emission | -36dBm ＜ 1GHz |
| -30dBm ＜ 1GHz & ＜4GHz | |
| Adjacent Channel Power | -60dB @ 12.5KHz |
| -65dB @ 12.5KHz | |
| Audio Response | +1, -3dbB |
| Adudio Distortion | 3% |
| FM Modulation | 12.5KHz: 11KΦF3E |
| 25KHz: 16KΦF3E | |
| 4FSK Digital Modulation | 12.5KHz only data: 7K60FXD |
| 12.5KHz data and audio:7K60FXE | |
| Digital Vocoder Type | AMBE(optional) |
| Digital Agreenment | DMR |
| Receiver | |
| Channel Spacing | 12.5KHz/25KHz/6.25KHz(DPMR) |
| Frequency Stability(-20℃, +60℃, +25℃) | ±1.5ppm |
| Analog Sensibility | 0.25μV(12dB SINAD) |
| 0.3μV(20dB SINAD) | |
| Digital Sensibility | 5% BER: 0.3μV |
| Intermodulation | 65 dB |
| Adjacent Channel Selectivity | 60 dB @ 12.5KHz |
| 60 dB @ 25KHz | |
| Spurious Rejection | 65dB |
| Rated Audio | 1.2W |
| Audio Distortion @ Rated Audio | 0.03 |
| FM hum and noise | -40dB @ 12.5KHz |
| -45dB @ 25KHz | |
| Adudio Response | +1, -3dbB |
| Spurious Emiossion | -57 dBm |
SENHAIXUN is a professional DMR Two Way Radio manufacturer. We are seeking distributor globally!
Standard Accessories
