AC photovoltaic connectors are used for the connection of panels, inverters or junction boxes.
AC photovoltaic connectors are used for the connection of panels, inverters or junction boxes.
Rated Current :
50A(10mm²)Rated Voltage :
690V(TUV)
AC 5 pin PV Solar Circular connectors
This AC 3-phase connector features a large current-carrying capacity and an excellent resistance to UV light and high temperatures, making it ideal for use in the connection of medium-power string inverters. The housing is made of a high quality, imported PA66. The stability and reliability are guaranteed thanks to the snap-lock coupling system.

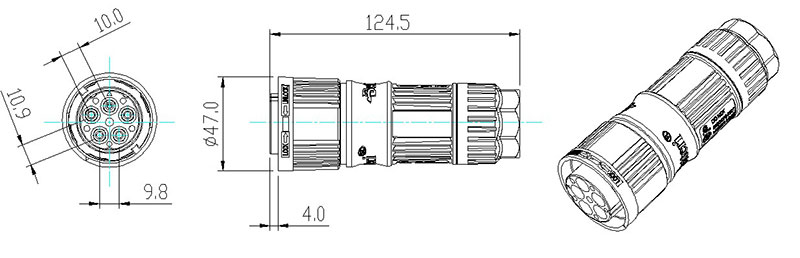

Product Information:
|
Pin Number |
4P+PE |
|
Rated Current |
50A(when use 10mm² wire) |
|
Rated voltage |
690V |
|
Contact Resistance |
≤1mΩ |
|
Rated Impulse Withstand Voltage |
6000V AC |
|
Over-voltage Category |
III |
|
Pollution Degree |
2(mated) |
|
Waterproof Rating |
IP67(1m, 30min) |
|
Insertion and Withdraw Force |
50~100N |
|
Flammability Rating |
UL94-V0 |
|
Rated Temperature |
-40℃~+85℃ |
|
Applicable Wire Gauge |
2.5/4/6/10/16mm² or 14/12/10/8/6AWG |
|
Outer Cable Diameter |
15~24mm |
|
Locking System |
Bayonet |
|
Size of Screw |
M4X0.7(“--”type) |
|
Wiring Connection |
Screw type |
|
Fixed Thread Metric |
M32 |
|
Size of Panel Cutout |
Φ32.3+0.2/0 |
Product Features:
------Compact dimensions, more pleasing in form;
------Screw connection for easy field installation;
------Choose the best plastic material, ensure the product performance and using life;
------IP68 level protection of enclosure;
------Product quality is stable and reliable;
