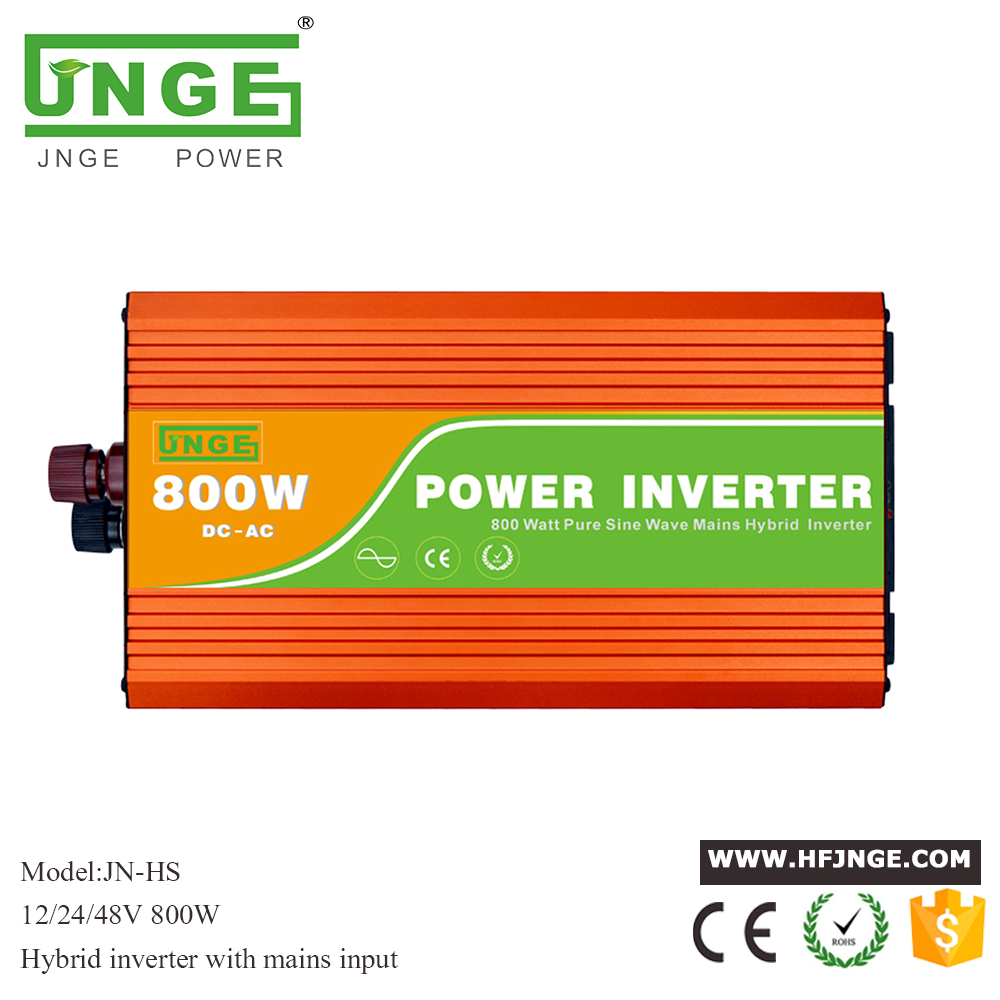

800W UPS inverter dc to ac voltage converter off grid Pure Sine Wave

1. Pure sine wave output

2. Low work noise, high efficiency inverter.

3. Small, light and artistic, benefited from adopting the SMD paster technology.

4. Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.

5. Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

6. With complete protections

Features and benefits
  • Brand Name :

    JNGE
  • Application :

    Hybrid solar system/ Hybrid wind solar system
  • Battery Voltage :

    12/24/48/96v
  • Output Voltage :

    100/110/120/127/220/240v optional
  • Rated power :

    800w
  • Output wave form :

    Pure sine wave
Product Details

This is a 800W 12V 24V 48V 96V (optional) pure sine wave power inverter hybrid type which can generate 800W of continuous power and up to 1600W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).It has hybrid function with AC mians ,you can set battery working in priority or AC mains working in prioroty as your demand.


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:

It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.


The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.


Product Parameters:

SWITCH  Batteries  preference or mains preference(can be set up)
OUTPUT OUTPUT VOLT 100/110/120/220/230/240VAC
CONTINUOUS POWER 800W
SURGE POWER 1600W
WAVEFORM PURE SINE WAVE
FREQUENCY 50Hz/60Hz
AC REGULATION LOW & HIGH 10%
Non-load  Consumption <10W
EFFICEINCY >90%
INPUT USB OUTPUT 5V
DC VOLTAGE LED DISPLAY POWER & FAIL STATUS
INPUT RANGE 10-15VDC      21-30VDC     40-60VDC
PROTECTION WORKING INPUT 12VDC        24VDC       48VDC
FUSE 35A            20A           15A
Low battery alarm 10.5+0.3V   21+0.5V    42+0.5V
Low battery shut down 10+0.5V      20+0.5V    40+0.5V
Over voltage shut down 15.5+0.5V    30.5+0.5v  60+0.5V
Over load shut down 720W over 10 seconds
Over heating shut down >75
Over Thermal  shut down the output
Working Temperature BETWEEN -10 and +50
soft start
OTHER DIMENSION(L*W*H)  305*146*66mm
INNER BOX DIMENSION  360*185*115mm
CARTON DIMENSION  495*195*380mm
NET WEIGHT 2.8±0.2KG
GROSS WEIGHT 13±1KG
PACKING 4PCS/CTN
