TB series barrier terminal block has different pitch and specifications, which can meet with customer demand.
TB series barrier terminal block has different pitch and specifications, which can meet with customer demand.

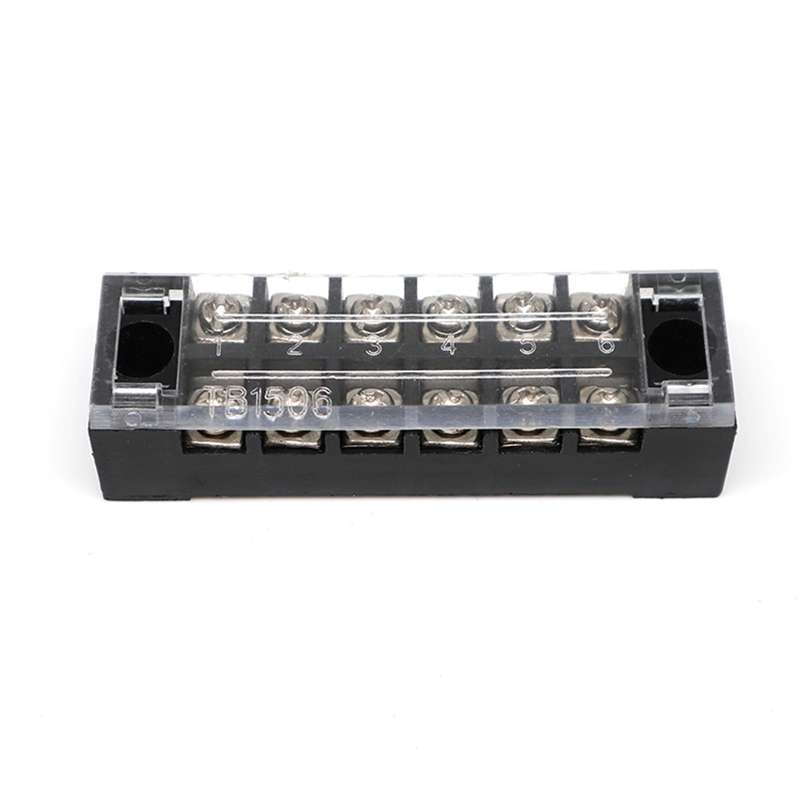

600v 32 amp barrier terminal block with cover
Specification of tb barrier terminal block
| Product name: | Barrier terminal block | Model: | TB15-8.9 |
| Certification: | CE | Rated voltage: | 600V (UL), 750V (IEC) |
| Rated current: | 25A (UL), 32A (IEC) | Wire range: | 22-10 AWG (4mm²) |
| Withstand voltage: | AC 2500V/1 Min | Temperature range: | -30℃ to +120℃ |
| Torque: | 9.0 Kg.cm | Pitch: | 12.0 mm |
| Poles: | 2*2P-2*12P | Housing: | PBT UL94V-0 |
| Contact: | Steel, tin plated or Brass, tin plated | Screw: | M4, Steel, Nickel plated |
Feature of 32 amp terminal block
Application of barrier strip terminal block
Request for Quotation
