5W UHF Portable Handheld Walkie Talkie

Classic business design high-quality handheld walkie talkies
Product Details

VHF UHF 5W Portable Lightweight Walkie Talkie


Product Description:

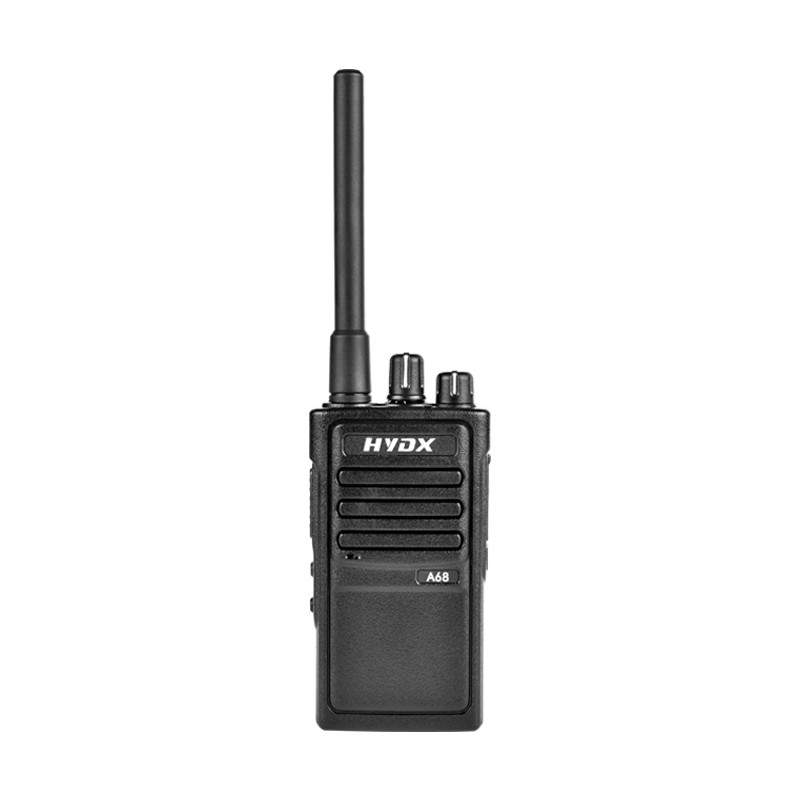

HYDX A68 is a high-quality walkie talkie with business design, lightweight, heat and cold resistance. At the same time, it has rich functions to make it easy to do everything.

·16 channels,400-470/136-174MHz.Up to 5 miles range in open area without obstructions (as rural areas, suburbs or seaside). If in cities or towns, reach 0.5-3 miles(Exactly depends on your surroundings). Using 16 position rotary channel switch to change the different channel. The channel frequency can be programmed in the frequency range, you can program any of 50 CTCSS tones and 105 DCS tones on each programmed channel; Easy to use for adult.

·1600mAh Li-ion rechargeable battery.Large capacity battery allow you can charge 2-3 hours then use it for 8-9 hours continuous use.

Multifunction for wide application.50 CTCSS/105 DCS Function/ Emergency Alarm Function.Great for Security Guard, Supermarket Connection, Construction Area Indication, Factories, Household, Warehouse, School Event and other Presentation.

·12-Month-Warranty.All HYDX product come with 12-Month-Warranty and lifetime customer support. Any after-sales problem you meet, please contact us firstly, our HYDX team will solve out as soon as possible.


Main Functions

1.136-174MHz/400-470MHz

2.High/Low Power

3.Group Calling

4.Reverse Frequency/Off set

5.VOX

6.SQL

7.DTMF/PTT ID

8.Tail Elimination

9.TOT

10.Emergency Call

11.CTCSS 50/DCS 105 Support Non-standard

12.BCLO

13.Voice Report

14.Programming Encryption


Technical Specification

GENERAL
    Frequency Range

    UHF:400-470MHz

    VHF:136-174MHz

    RF Output Power     H:≤5W   L:≤2W
    Channels     16
    Channel Spacing     Wide:25KHz   Narrow:12.5KHz
    CTCSS/DCS     50 CTCSS / 105 DCS
    Antenna Impedence     50Ω
    Operating Temperature     -20℃+50℃
    Operating Voltage     DC 7.4V
    Battery Type     1600mAh
    Dimension(Excluding antenna)     112.5(H)×59(W)×37(D)mm
    Weight(Battery,Antenna Including)     About 230g
TRANSMITTER
    Output Power

    H:≤5W

    L:≤2W

    Modulation Mode     F3E
    FM Noise

    ≤ -45 dB

    Audio Distortion     ≤ 5%
    Spurious and Harmonics     -65 dB
RECEIVER
    Reference Sensitivity     ≤ -123 dBm
    Adjacent Channel Selectivity     ≤ -65 dB
    Inter-modulation response immunity     ≤ -55 dB
    S/N

    ≥ 45 dB

    Rated Output Power     ≤750mW
    Rated Audio Distortion     ≤5%
Packing&Delivery


Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.


*  1 x HYDX A68


*  1 x Antenna


*  1 x Battery


*  1 x Charger


*  1 x Belt Clip


*  1 x Hand Strap


*  1 x User Manual


*  1 x Adapter
