EITAI Commercial Hybrid grid Solar System Single Phase Solar Panel Europe Ground Solar Plant with Ground Mounting, Roof Mounting, Carport Mounting
EITAI Commercial Hybrid grid Solar System Single Phase Solar Panel Europe Ground Solar Plant with Ground Mounting, Roof Mounting, Carport Mounting
Power range :
5KWWarranty :
10 yearsCertificate :
CEOutput Type :
Single PhaseEitai Hybrid Solar System Power 5kw Home Solar Panel System For Home Use with Battery Charger
Product Information:
|
Place of Origin: |
Fujian, China |
Brand Name: |
EiTai |
|
Model Number: |
3-20KW Hybrid Solar System |
Application: |
HOME, Commercial, Industrial |
|
Solar Panel Type: |
Monocrystalline Silicon, Polycrystalline Silicon |
Battery Type: |
Lead-Acid, Lithium Ion, Lithium Battery |
|
Mounting Type: |
Ground Mounting, Roof Mounting, Carport Mounting |
Controller Type: |
MPPT, MPPT/PMW |
|
Load Power (W): |
3KW-20KW |
Output Frequency: |
50-60HZ |
|
Product name: |
Hybrid Solar PV Power System |
Inverter type: |
Growatt Hybrid Inverter |
|
Warranty: |
10 years |
Solar cell: |
Mono/Poly |
|
Frequency: |
50/60hz |
Output Voltage (V): |
EU: 230/400V US:120/240 |
5KW Hybrid Solar Power System Components：
| 5KW Hybrid Solar Power System Components |
|
Item
|
Model
|
Description
|
Quantity
|
|
1
|
Solar Panel
|
Mono 380W or Poly 380W solar panel
|
16pieces
|
|
2
|
DC Switch
|
2P125A DC550V
|
1 pcs
|
|
3
|
Growatt Hybrid Inverter
|
SPH 5000
|
1 set
|
|
4
|
Battery and battery structure ,DOD 70%
|
12V 250AH
|
4 pcs
|
|
5
|
PV Cable-Module to DC Combiner
|
1x4mm2
|
200m
|
|
6
|
BVR Cable （For Battery）
|
BVR-450/750V-16
|
20m
|
|
7
|
Connector
|
MC4 Compatiable
|
6m
|
|
8
|
Battery Cable-Battery Box to Battery
|
BV/RVV1*50mm
|
20m
|
|
9
|
Battery Box (Breaker, SPD)
|
2in1out
|
1 set
|
|
10
|
AC Combiner Output Box, 2in 1 output
|
230V,50HZ, Breaker
|
1 set
|
|
11
|
mounting structure、clamp、Screws
|
Galvanized Steel or Alluminum Alloy
|
1 lot
|
|
12
|
PV TOOLS
|
|
1 set
|
 |
Solar Panel
> Brand: EITAI > Optional Mono/Poly Blue/Black Panels > 25 years Warranty > Excellent mechanical load resistance > PID Resistant,High salt and ammonia resistance
|
|

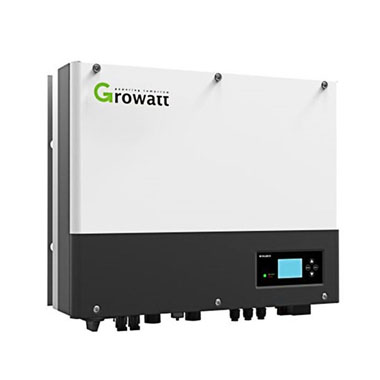

Off Grid Solar Inverter
> Brand:Growatt
>5 years standard warranty >Support Working in Parallel >Max.Efficiency 99.7% >Integrated DC switch for added >safety protection >With WIFI Monitoring Device
|
 |
|
PV Cables& Connector
>DC Cable 4mm/ 6mm >AC Cable >MC4 Standard Connector
|
|
AC Combiner Box
> Include FUSE,SPD, Leakage Breaker etc. > Protect Solar System
|
 |
 |
Solar Mounting System
> Customized for :Rooftop(Flat/Pitched), Ground , Carport etc > Adjustable tile angle from 0 to 65 degree > Tile roof: Aluminium type > Compatible with all solar modules |
|
Lead Acid GEL/AGM Battery
>Capacity(kWh):>0.4/0.8/1.2/1.6/2 Nominal >Voltage(Vdc): 2 Nominal >Capacity(AH): >200/400/600/800/1000 Voltage >Range(Vdc): 2.27 V~2.30 V >Depth of Discharge: 70% |
 |
Product packaging :
Packing Details:Carton Packing
Delivery Details:12-30 days after place the order
