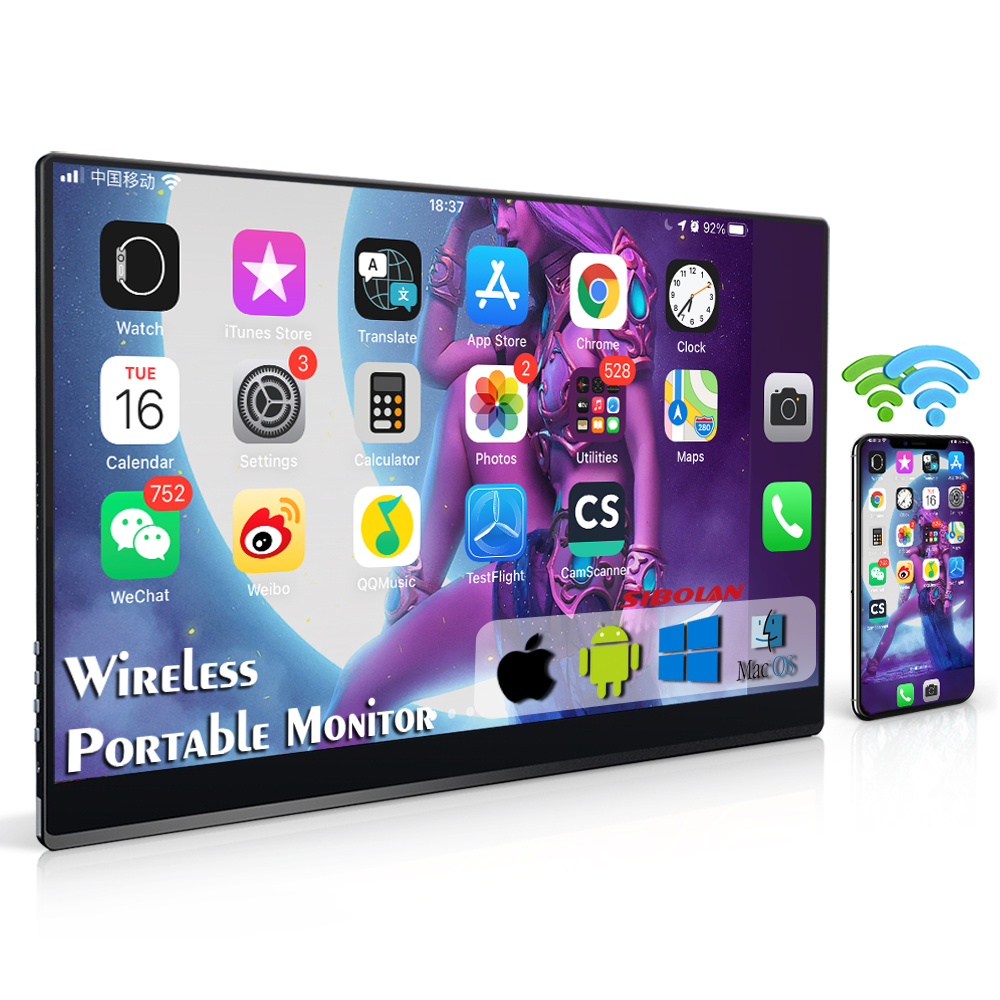

[5G wifi Wireless display]:

With 2.4G&5G Advanced Chip & Dual-band WiFi, improves the overall data transmission rate, allows the system to coexist. It ensures signal transfer stable, streaming smoothly , and the screen mirroring is fluently. Instantly mirroring your phone or lapto to the monitor wirelessly, You can clearly casting/mirroring photos, video, radio, music, office document(word,excel,ppt), online chat, movies, games in 1080P high definition from iOS & Android smartphone, laptop, ipad, macbook, tablets to our 5G wifi wireless portable monitor.



[Multiplatform Compatibility]:

Compatible with Android 4.2 or above, iOS 7.0 or above, Windows 8.1 or above, Mac OS etc. Supports Miracast, DLNA, Airplay modes, and other interconnection agreement. And Airplay mode and Miracast mode will switch automatically.

Note:

* Plug in the USB wifi dongle （build in 5G+2.4G wireless card）to the USB port of the monitor to get wifi signal,

* Please check your phone/PC is compatible or not before use the monitor (should support Miracast, DLNA, Airplay),



2.For lphone connect You can just use your own lphone USB cable plug in to the monitor USB port to airplay your lphone.



[Portrait Screen Display]:
When connected to lphone via wifi wireless, you can manual set Portrait Screen Display, which will very convenient for you to have a living show,you can set horizontally or vertically according to your needs, improves the work efficiency and entertainment more humanely.



[Both Wire or Wireless Connection for Optional]:

Support both Wire or Wireless Connection for Optional,There's 2.4G and 5G wifi wireless connection ,and also with USB,HDMI,Type-C input ports for you to wirely connect with your other devices.



[Capacitive Touch Screen]:
G+G Multi points capacitive Touch Screen ;Support windows7,win8,win8.1,win10; 10 point multi touch(For windows10 only);Plug and play,no need to download and install any software.

Note:

1.Multi-touch function only work when you set the SIBOLAN monitor as replication model (display same content with your PC monitor),

2.While connect Ipad/ lphone/Android phone via the USB port wired,the touch screen will not work,

[Single Type-C Connect to Signal & Power]:

This portable monitor features an innovative hybrid-signal solution with integrated a 3-in-1 function Type-C interface for simultaneous power. signal transmission and USB interface functions.

(Note:you will require to power the monitor with DC adaptor incase there's power shortage.)



[Versatile Digital Connection]:

Portable screen with Type-c. HDMI, and Micro USB port make it easy connection with Laptops. PCs.lphone,smartphone. PS4,PS5. XBOX ONE or Nintendo Switch and Mouse,Keyboard.  Great ideal for extending your screen or playing games on business trip,travel,or home entertainment. Factory supply 16 inch 1080p resolution 5G wireless hd usb small display hdr touch screen ips portable usb monitor for laptop.



[Smart Cover & Screen Protector]:

The Smart Cover is made of durable PU leather exterior, a soft lining to keep your monitor safe. Extra Free Screen Protector give your monitor with fully protection from the scratches.(Optional accessory,pay extra to get it )

(Note: While connect your android phone or laptop via the Type-C,Please check if the Type C of your laptop/phone is a full featured Type C port. If it is just a Type C for charging, it will not be available.)



Touchscreen	Projective Capacitive G+G Full-Laminated Touch Monitor, support 10-finger multi-point touch,support win8,win8.1,win10
Panel Type	16 inch TFT IPS LCD (16:9 Wide) LED Backlight
Battery	With Build in battery 8000mAh,working time 3-4 workings
Resolution / Color Depth	1920(RGB) x1080(FHD)
Display colors	16.7M ,colors 6bits+FRC,71% sRGB
Miracast wifi wireless display	With 5.8G and 2.4G wifi wilress display
	Support System:iOS 7.0/Android 4.2 and above model with over 1GB RAM/Windows8.1+/MAC10.8+
	Support Protocol:Airplay/DLNA/Miracast/EZcast
Active Area	349.632(H)*196.668(V)
Pixel Pitch	0.1821 (H) X 0.1821 (V)
Viewing Angle(U/D/L/R)	85/85/85/85 (Typ.)(CR≥10)
Contrast Ratio	800:1 (Typical)
Flat Ratio	16:9 (H:V)
Brightness	220(cd/m2)
Response Time	30(ms)
Vertical Frequency	60Hz
VESA Mountable	Optional

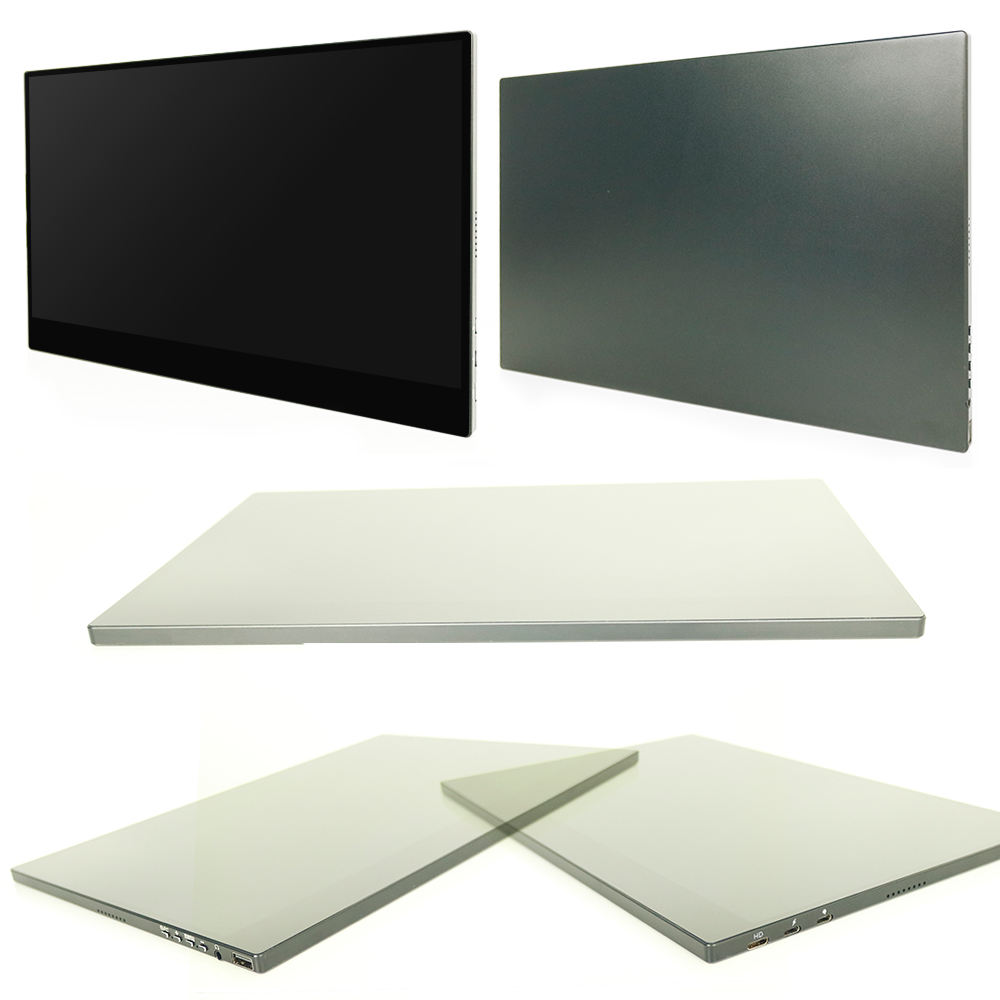

Monitor Housing	High Quality aluminium alloy
Connectivity	* HDMI Mini Port *1
	* Type C Port*1( For Power and video data transfer)
	* Type C Port( For Power 5V-3A)*1
	* Head Phone Port*1
	* Standard USB port*1(For USB wifi wiress card and lphone lighting cable for video streaming)
Compatible	Compatible with various of HDMI and Type-C devices: lphone ,Android Phone,laptop,Mac,Xbox One, Xbox 360, PlayStation 4, PlayStation,Switch,PC and Mobile devices
Speakers	2x 1.0W(Max.)
Rating Voltage	5V-4.0A
Dimension(W/H/T)	361*224*11 mm
Weight	960g
Free Accessories	USB WIFI Antenna card *1 / Type-C Cable*1 / HDMI Cable*1 /USB A-C cable*1 / User manual*1/5V-3A DC adopter*1
Optional(Pay extra to get )	Leather Case*1+10$

Note:Design and specifications are subject to change without prior notice.

Simple Operation Guide

 * Power on your Monitor With the Supplied DC Adaptor

 * Plug in your Wifi Wireless Card to the USB Port of the Monitor

 * Wait for the Ezcast Main Screen Until There's EZcast Wifi Name and Password Show on the Screen

 * Incase your Display is not on Ezcast Screen,Press the“Menu”Button and then“Power”Button to Switch Input Source to “D3:Cast”

* Turn on your Android menu, and then enable Miracast.

* Select the WIFI name show on the monitor as target and wait fbr connection.

* Your Android screen will be shown on your Monitor, reconnect if necessaiy.

* Connect your iPhone/Ipad/Mac with Ezcast WIFI Name and Password Show on the Monitor

*  Swipe up on your iPhone and tap on AirPlay Mirroring, Then Select Ezcast as Target.

* Your iPhone/iPad/Mac Screen will be Shown on your Monitor.

* Power on your Monitor

* For Windows 8.1, Execute "Windows Start Menu > Settings > PC and Devices >Devices> Add a Device"，and then Search for Ezcast

* For Window 10, Execute "Windows Start Menu > Settings >Connected Devices > Add a Printer or Scanner”, and Then Search for Ezcast.

* Your Windows Screen will be Shown on your Monitor Through Ezcast Connection.

*  Click Save Information and Save the Relevant Information as Dxdig.txt(File format Choose txt)

* Open the file Dxdig.txt and Mearch "Miracast" to see if your Laptop Supports Miracast.Details are Shown in the Picture Below:*Power with AC Adaptor If there‘s Power Shortage



Kindly Note:

• Please Read the User Manual or Contact our Seivice Team First if you do not know how to use.

• Please Check your Phone/PC is Compatible or not.

• Keep the Power(at Least 5V/3A) Connected During use.

• Not Compatible with the app that Requires Video License Copyright (HDCP)，Like Netflix/ iTunes/ HBO Go/ Hulu Plus/ Honda Motor/ ESPN/ YouTube App and Other Video App.
