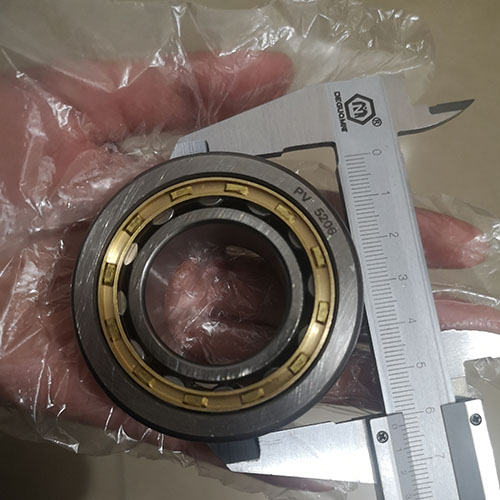

30*62*23.8mm 5206 bearing are produce with Chrome steel ,the inside are with roller cage ,we can provide sample for you in advance .
30*62*23.8mm 5206 bearing are produce with Chrome steel ,the inside are with roller cage ,we can provide sample for you in advance .
5206 Bearing Specification :
Bore Diameter: 30 mm
Outside Diameter: 62 mm
Width :23.8mm
Bearing Material :Chrome Steel
Feature: With roller double cage
Same as bearing 3206
|
|
 |
 |
The Application of 5206 Bearing :
oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery.
We can Produce Other Double-Row Angular Contact Bearing：
| Bearing No. | Boundary Dimensions(mm) | Basic Load Ratings(N) | Limiting Speeds(RPM) | Mass(kg) | |||||
| d | D | B | r min | Cr | C0r | Grease | Oil | approx | |
| 5200 | 10 | 30 | 14.3 | 0.6 | 7 150 | 3 900 | 17 000 | 22 000 | 0.05 |
| 5201 | 12 | 32 | 15.9 | 0.6 | 10 500 | 5 800 | 15 000 | 20 000 | 0.06 |
| 5202 | 15 | 35 | 15.9 | 0.6 | 11 700 | 7 050 | 13 000 | 17 000 | 0.07 |
| 5302 | 42 | 19 | 1 | 17 600 | 10 200 | 11 000 | 15 000 | 0.11 | |
| 5203 | 17 | 40 | 17.5 | 0.6 | 14 600 | 9 050 | 11 000 | 15 000 | 0.09 |
| 5303 | 47 | 22.2 | 1 | 21 000 | 12 600 | 10 000 | 13 000 | 0.14 | |
| 5204 | 20 | 47 | 20.6 | 1 | 19 600 | 12 400 | 10 000 | 13 000 | 0.12 |
| 5304 | 52 | 22.2 | 1.1 | 24 600 | 15 000 | 9 000 | 12 000 | 0.23 | |
| 5205 | 25 | 52 | 20.6 | 1 | 21 300 | 14 700 | 8 500 | 11 000 | 0.19 |
| 5305 | 62 | 25.4 | 1.1 | 32 500 | 20 700 | 7 500 | 10 000 | 0.34 | |
| 5206 | 30 | 62 | 23.8 | 1 | 29 600 | 21 100 | 7 100 | 9 500 | 0.29 |
| 5306 | 72 | 30.2 | 1.1 | 40 500 | 28 100 | 6 300 | 8 500 | 0.51 | |
| 5207 | 35 | 72 | 27 | 1.1 | 39 000 | 28 700 | 6 300 | 8 000 | 0.43 |
| 5307 | 80 | 34.9 | 1.5 | 51 000 | 36 000 | 5 600 | 7 500 | 0.79 | |
| 5208 | 40 | 80 | 30.2 | 1.1 | 44 000 | 33 500 | 5 600 | 7 100 | 0.57 |
| 5308 | 90 | 36.5 | 1.5 | 56 500 | 41 000 | 5 300 | 6 700 | 1.05 | |
| 5209 | 45 | 85 | 30.2 | 1.1 | 49 500 | 38 000 | 5 000 | 6 700 | 0.62 |
| 5309 | 100 | 39.7 | 1.5 | 68 500 | 51 000 | 4 500 | 6 000 | 1.4 | |
Request for Quotation
