1)Thermal printer, no need for carbon transfer ribbon, cost-saving and portable.
2)Can print 1D barcode, 2D barcode, picture, and text(Many language);
3)2-4inches super high speed; work with 20-108mm thermal paper width, maximum printing width 104mm.
4)Modulized software, you can custom character, font (underline, bold, enlarge) & etc.
5)Auto paper positioning function, print correctly.
6)Auto temperature control to prolong print head working accuracy and lifetime.
7)With label entrance, you can use external paper holder for big paper roll.
8)Can work over 12hours everyday.
9)With light indicator to show error.
10)Transparent top cover for direct paper monitor.
11)Can be widely used in manufacturing & warehouse logistic industry, healthcare, parcel post, office & studio, retail & etc.
12)Support ptintig LAZADA DHL UPS FedEx Amazon's shipping labels.
13)Free label editing software.
14)Support OEM/ODM services.
|
Model :BY-244/BY-244P |
|
|
Printing method |
Thermal printing |
|

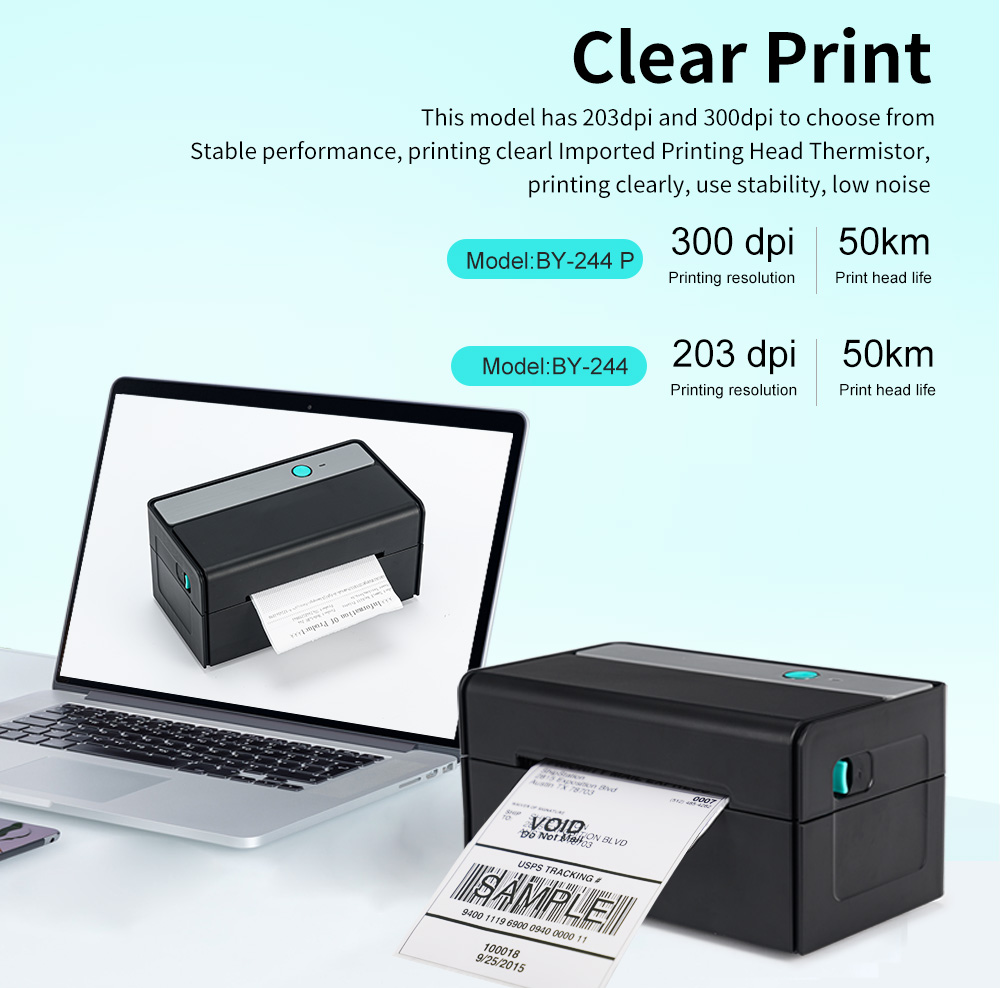

Resolution |
203dpi or 300dpi |
|
Printing speed |
150mm / s |
|
Interfaces and printer types |

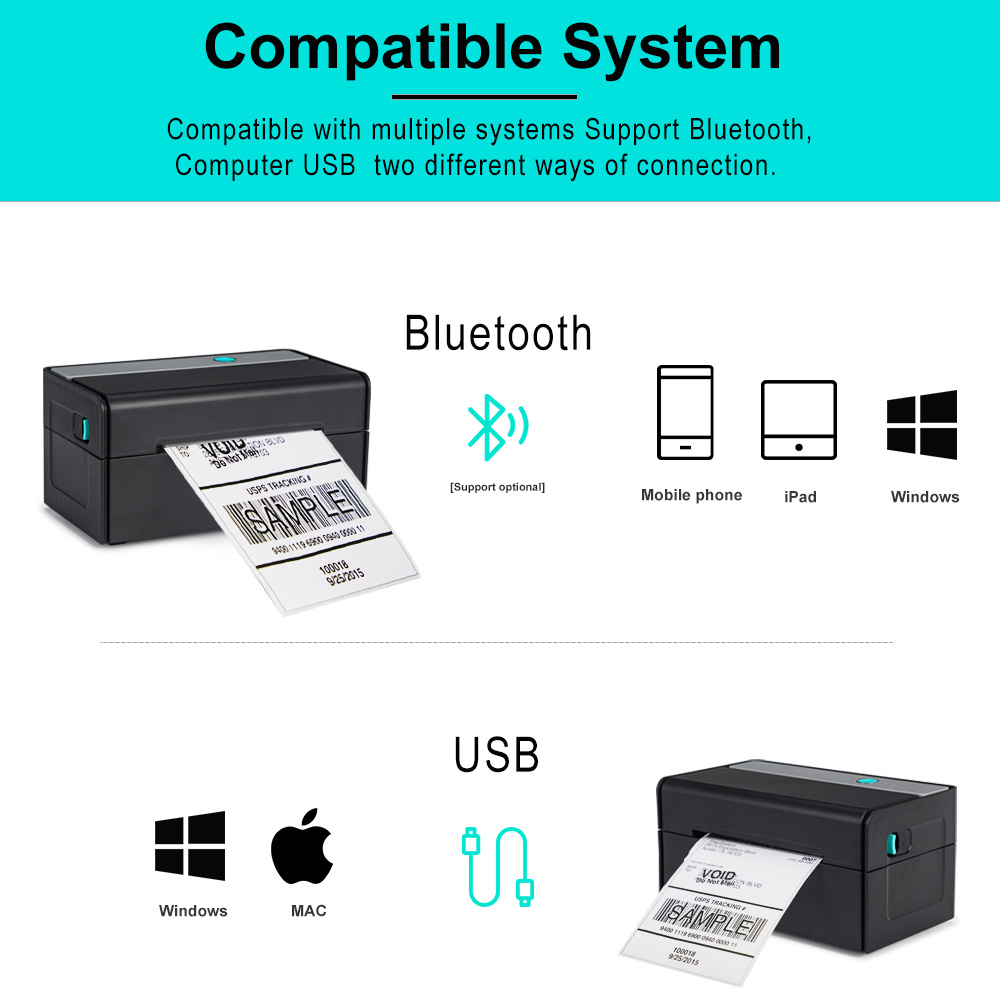

USB port or USB+Bluetooth |
|
Input |
AC 100V-220V,50-60Hz |
|
Output |
DC24V/2.5A |
|
Command set |
TSPL |
|
Chinese |
GB18030-2000/BIG5 24×24/16×16 |
|
Paper width |
40mm to 108mm |
|
Print width |
Max104mm |
|
1D |
Code39, Code93, Code128, Code BAR, EAN-8, UPC-A/E, EAN13 |
|
2D |
QRCODE |
|
Outline dimension |
199*80*91mm(L*W*H) |
|
weight |
700g |
|
TPH life |
30Km |
|
Motor life |
360,000hours |
|
Driver procedure |
Windows @All/MacOS |
|
Support customization development! |
|
