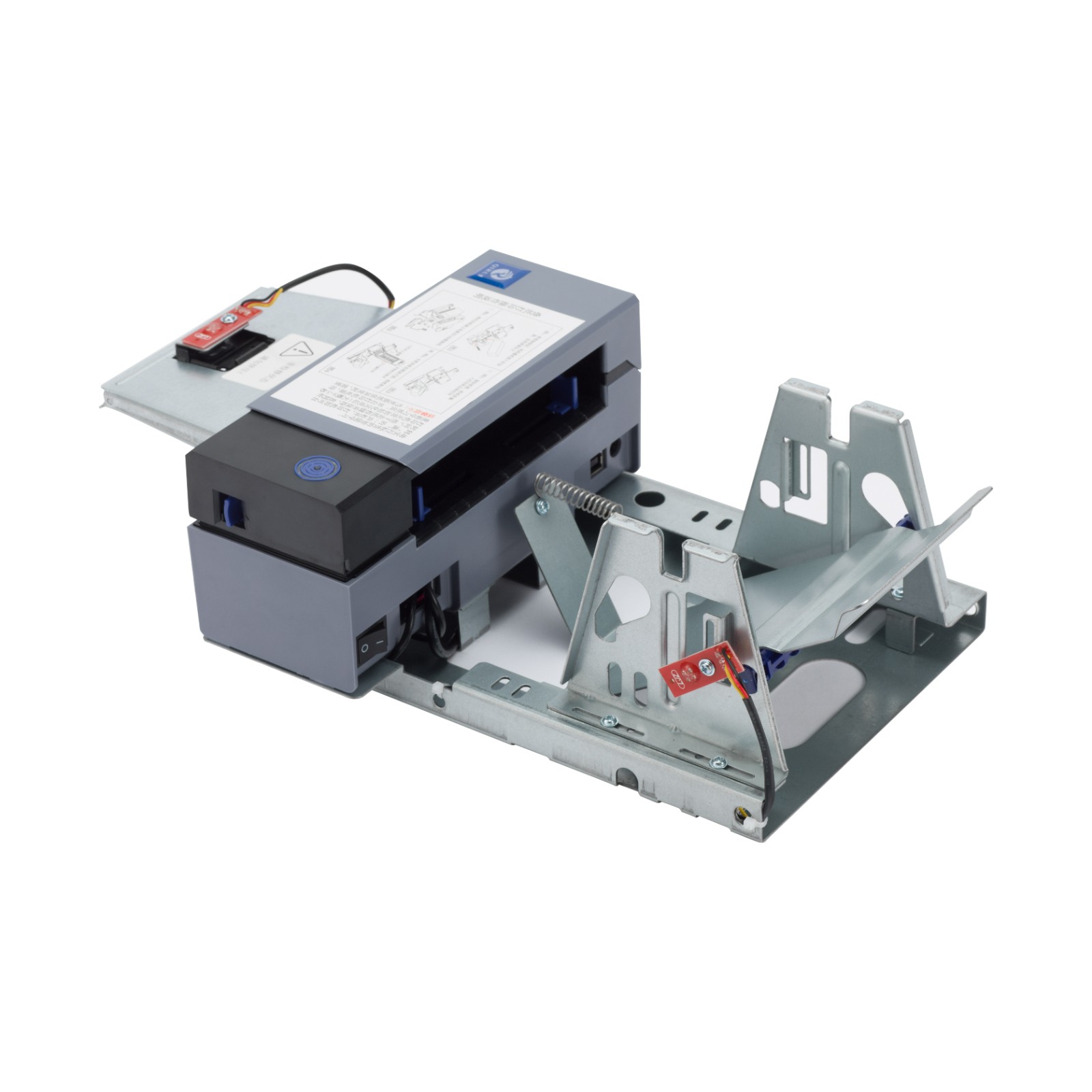

QR-588Q Specification |
||
|
Printing Characteristics |
Printing Method |
Thermal Direct |
|
|
Printing Resolution |
203dpi(8dot/mm) |
|
|
Printing Speed |
≤150mm/s |
|
|
Printing Width |
48-104mm |
|
|
Printing Life |
30KM |
|
Media Characteristics |
Paper media |
Thermal&Thermal Label Paper |
|
|
Paper Width |
40mm to 108 mm |
|
|
Paper Thickness |
0.08～0.2mm |
|
|
Paper Diameter |
Φ≤100mm |
|
Power Characteristics |
Input |
AC100-240V 1A,60/50Hz |
|
|
Output |
DC24V,2A |
|
Interface |
USB |
|
|
Programming Language |
TSPL |
|
|
Memory |
Internal Storage |
2MByte |
|
|
Flash |
Non（Optional） |
|
Detection |
Sensor |
Reflective/Penetrating Types |
|
Font/Command |
Font Size |
12*24 Dot |
|
|
Character Lattice |
ASCII |
|
|
1D Barcode |
Code39,Code93,Code128,CodoITF,EAN-UCC |
|
|
2D Barcode |
QRCode，PDF417Code，Data Matrix |
|
Environment |
Working Temperature/Humidity |
-10~50/ 10~90％（Non-condensing） |
|
|
Storage Temperature/Humidity |
-40~80/ 5~95％（Non-condensing） |
|
Physical |
Body Dimension |
201*82*89mm |
|
|
Body Weight |
0.92kg |
