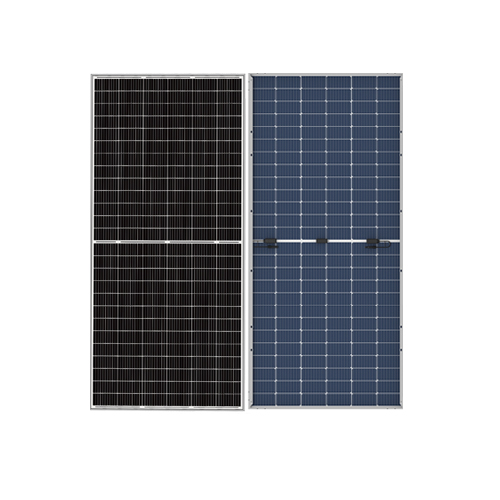

435W-450W Solar Panel 78 Cells 9BB 158.75MM Half-cell High Efficiency Module

1.Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively;
2.Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance;
3.Lower hot spot risks due to half-cell layout,offers an additional level of safety;
4.1500V DC voltage of the system,reducing the cost of the system side;
5.The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%;
6.Passed the certification test of 5400 Pa snow load and 2400 Pa wind load;

Product Details

SUN 78MD-HFS


1.Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively;
2.Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance;
3.Lower hot spot risks due to half-cell layout,offers an additional level of safety;
4.1500V DC voltage of the system,reducing the cost of the system side;
5.The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%;
6.Passed the certification test of 5400 Pa snow load and 2400 Pa wind load;


Cell Type
Mono Crystalline 158.75x79.375mm
Number Of Cells
156(6x26)
Dimensions(AxBxC)
2198x1010x30mm
Weights
29.0kg
Glass
3.2mm Tempered Low Iron Glass
Frame
Anodised Aluminium
Junction Box
IP68,with Bypass Diodes
Connector
Mc4 Compatible
Output Cables
Tuv,±length 900mm,4.0mm²
