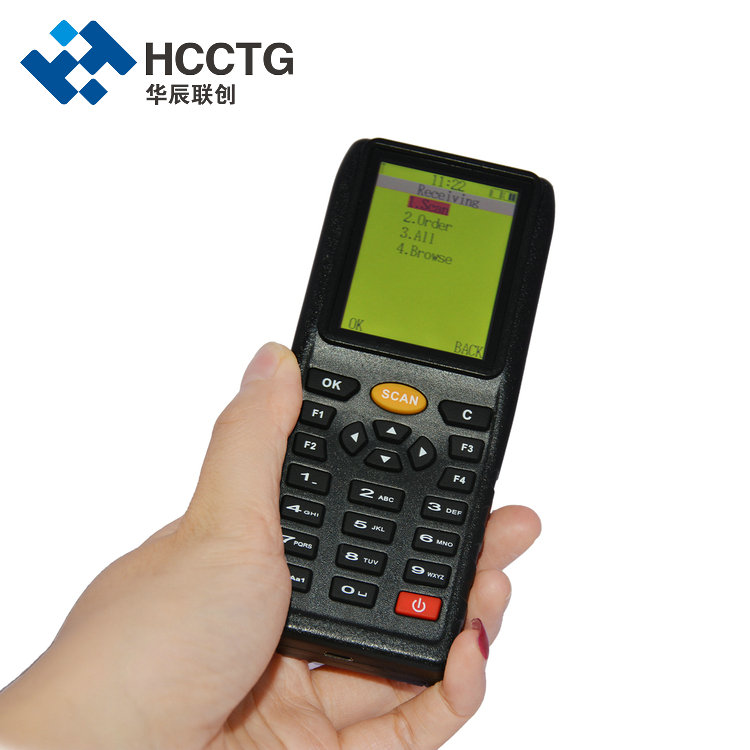

2.4 Inch LCD Screen Wireless Data Collector Handheld Terminal Barcode Scanner PDA HS-X7
HS-X7 is light weigt and portable, with CE&FCC DOC compliance, national laser safety standard Class Ⅱ, RAM 16KB and ROM 16MB, 100000+ item records can be saved, dual mode transmission, scan barcode and wireless receiver, transmission distance is 0~300m, 16 hours working time, 15 days standby time. Besides, it can also be used in many industry, such as warehouse, express, supermarkets and other stores, with strong performance.
Specification
|
Color |
Black |
|
CPU speed |
72MHz |
|
Keyboard |
T9 |
|
Memory |
|
|
RAM |
16KB |
|
ROM |
16MB |
|
Screen |
|
|
Size |
2.4’’ |
|
Color |
16bit true color (65536 colors) |
|
Resolution |
240*320 |
|
Physical |
|
|
Battery |
Rechargeable Lithium-ion(3.7V,1900mAh) |
|
Working time |
16 hours |
|
Standby |
15 days |
|
Dimension |
138mm×60mm×30mm |
|
Material |
ABS + silicone |
|
Charging indicator |
LCD |
|
Working current |
160mA |
|
Standby current |
8mA |
|
Safety standard |
National laser safety standard Class II |
|
EMC |
CE & FCC DOC compliance |
|
Scanning |
|
|
Light Source |
650nm |
|
Scan Pattern |
Single line |
|
Decode Rate |
100±2 scans / second |
|
Resolution |
3mil |
|
Scan width |
20mm@window,220mm@200mm |
|
Depth of Field |
0～250mm (0.33mm，PCS 90%) |
|
Roll |
30° |
|
Pitch |
65° |
|
Skew |
55° |
|
Print contrast |
Not less than 30% |
|
Operating Mode |
Continuous / itemized scanning |
|
Error Rate |
1/5million |
|
indicator |
Beeper,LCD |
|
Barcode supported |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128, EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI |
|
Optional:Industrial 2 of 5,GS1 Databar, QR code, Data Matrix, PDF417 |
|
|
Transmission |
|
|
Cable |
USB 2.0 |
|
Wireless |
433MHz(Max.300m) |
|
Environment |
|
|
Storing Temperature |
-20℃～60℃ |
|
Working Temperature |
0℃～45℃ |
|
Humidity |
5%～95% |
|
Lumination |
Max.5,000 Lux (Fluorescence) |
