Technical Features
![](/storage/uploads/images/202205/12/ad7da62e5fea731f471051bf11e6a631.jpg)
|
![](/storage/uploads/images/202205/12/07a1cf1b339ecfd80e8695599754e0b8.jpg)
|
![](/storage/uploads/images/202205/12/0c83c6174181939d2f856e3b101e2025.jpg)
|
Power
module design
|
Space
saving compact design
|
High
efficiency
|
This design helps to be easily removed at runtime & installed without effecting system operation and output. Capacity expansion is also possible allowing users to achieve dynamic growth with business development
|
400KVA in one cabinet. Footprint less than 1.45m2, saving valuable room space
|
Advanced 3-level technology guarantees high efficiency operation in double conversion mode up to 96%
|
![](/storage/uploads/images/202205/12/98455dd4b0040c7ed3ed03233fedcb38.jpg)
|
![](/storage/uploads/images/202205/12/fabb9642a33fc6df77ef7fb604be6195.jpg)
|
![](/storage/uploads/images/202205/12/f5bd393abe6bcec62d7e1b949dcd0995.jpg)
|
Intelligent
charging management
|
High
power density
|
High
scalability
|
The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
|
200kVA with footprints of about 0.5m2, saving valuable data center space
|

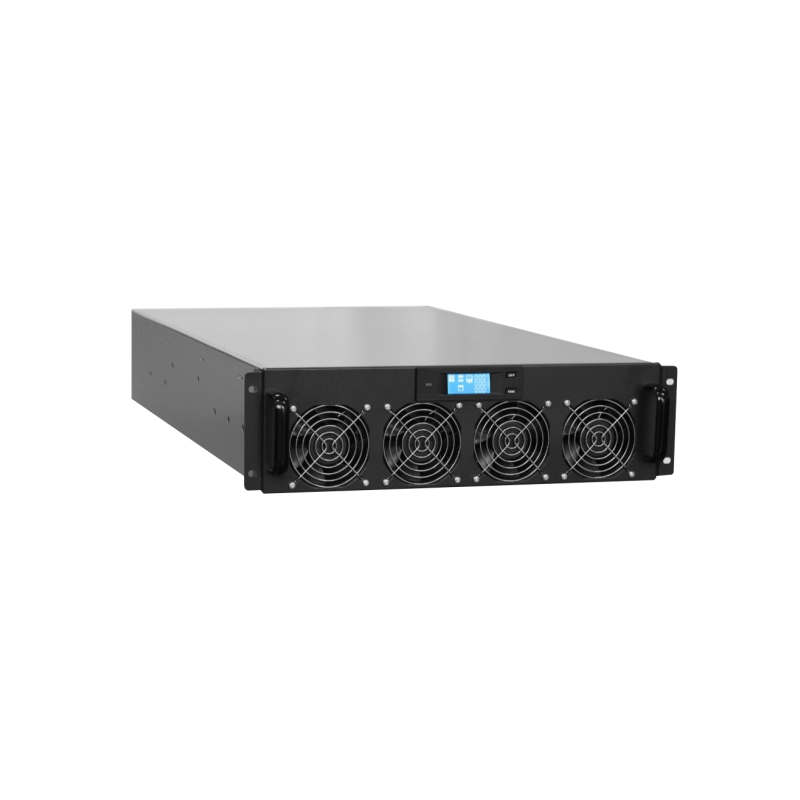

40 KVA power module in 4U height,The system can be configured from 40KVA to 400KVA in one single cabinet, 3units in parallel for a capacity expansion
|
![](/storage/uploads/images/202205/12/89b0dc963db43dfa9db284b8bc0dd265.jpg)
|
![](/storage/uploads/images/202205/12/664753bdc56b834e1f2f77fb2802029b.jpg)
|
![](/storage/uploads/images/202205/12/6683220b499f9f43268563f13b41997f.jpg)
|
Smart
sleep function
|
Friendly
HMI
|
Multi
communication interface
|
Intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
|
10.4 inch touch color LCD with graphioc display, independent LCD for each power module
|
The system is provided with RS232,RS485, USB, SNMP, AS400 and programmable dry contacts.which is easier for customer to operate
|
Application
Intelligent equipments, Server centers , IDC, ISP, IT Room ,Precision instruments
