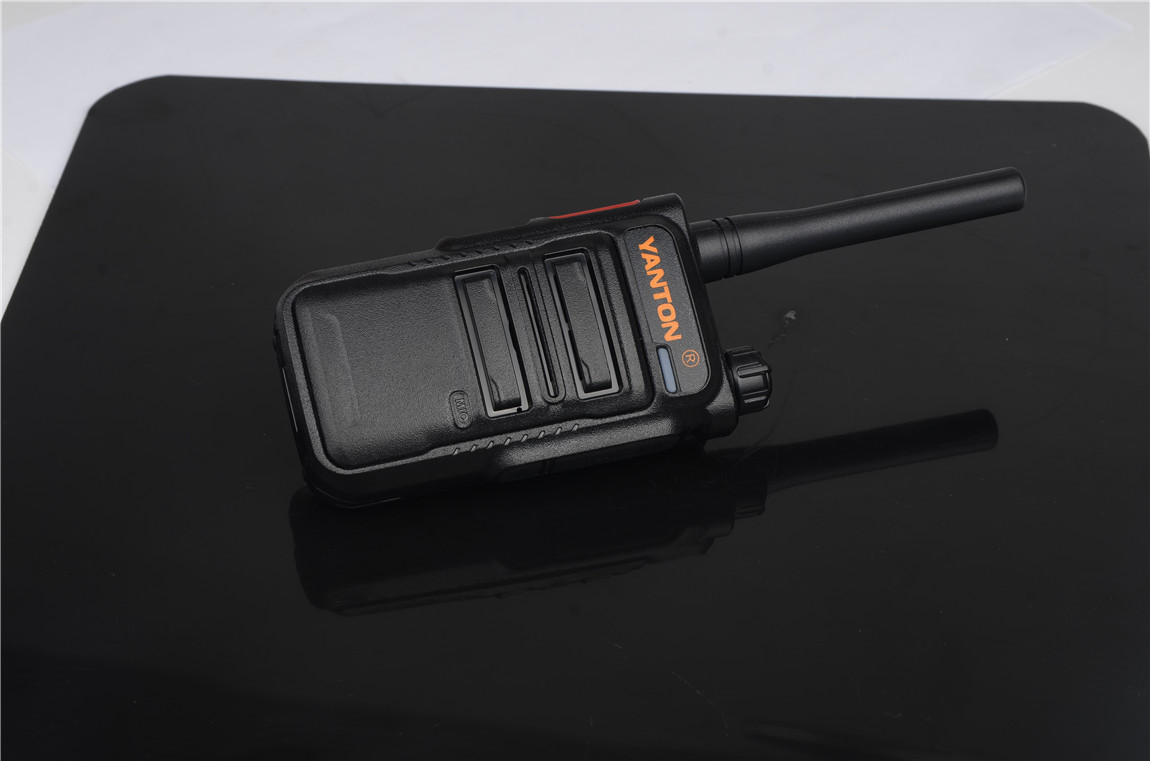

3W UHF Analog portable two way radio transmitter
Durable and innovative commerical radio, clear audio quality, dimension 115*55*25mm which makes it ideal for most commercial applications.
Quick Details
1.Frequency Band:136-174mhz/400-480mhz;
2.Output Power 3W;
3.16 Memory Channels;
4.DTMF;
5.Built-in CTCSS/DCS;
6.VOX Function;
Specification
|
GENERAL |
|
|
Frequency Range |
136-174MHz/400-480MHz |
|
Operating Temperature |
-20℃to +55℃ |
|
Frequency Combination |
please lock frequency synthesize |
|
Frequency Stability |
±2.5ppm |
|
Memory Channel |
16 |
|
Working voltage |
3.7v |
|
Antenna Impedance |
50Ω |
|
Operating Mode |
simplex of co-frequency or alien |
|
Dimensions |
115*55*25mm |
|
Weight |
180g |
|
TRANSMIT PART |
|
|
RF power |
3w |
|
Modulate Mode |
F3E |
|
Max.Freq.Deviation |
≤5KHz |
|
Remain Wave Radiation |
＜-60dB |
|
Transmitting Current |
≤1000mA |
|
RECEIVER PART |
|
|
Sensitivity |
＜0.20uV (12dB SINAD) |
|
Squeich Sensitivity |
＜0.20uV |
|
Intermodulation Antijamming |
50dB |
|
Audio Power output |
500mW |
|
Receiving Current |
≤100mA |
|
Squelch Stangby |
20mA |
Low power UHF two way radios
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
Request for Quotation
