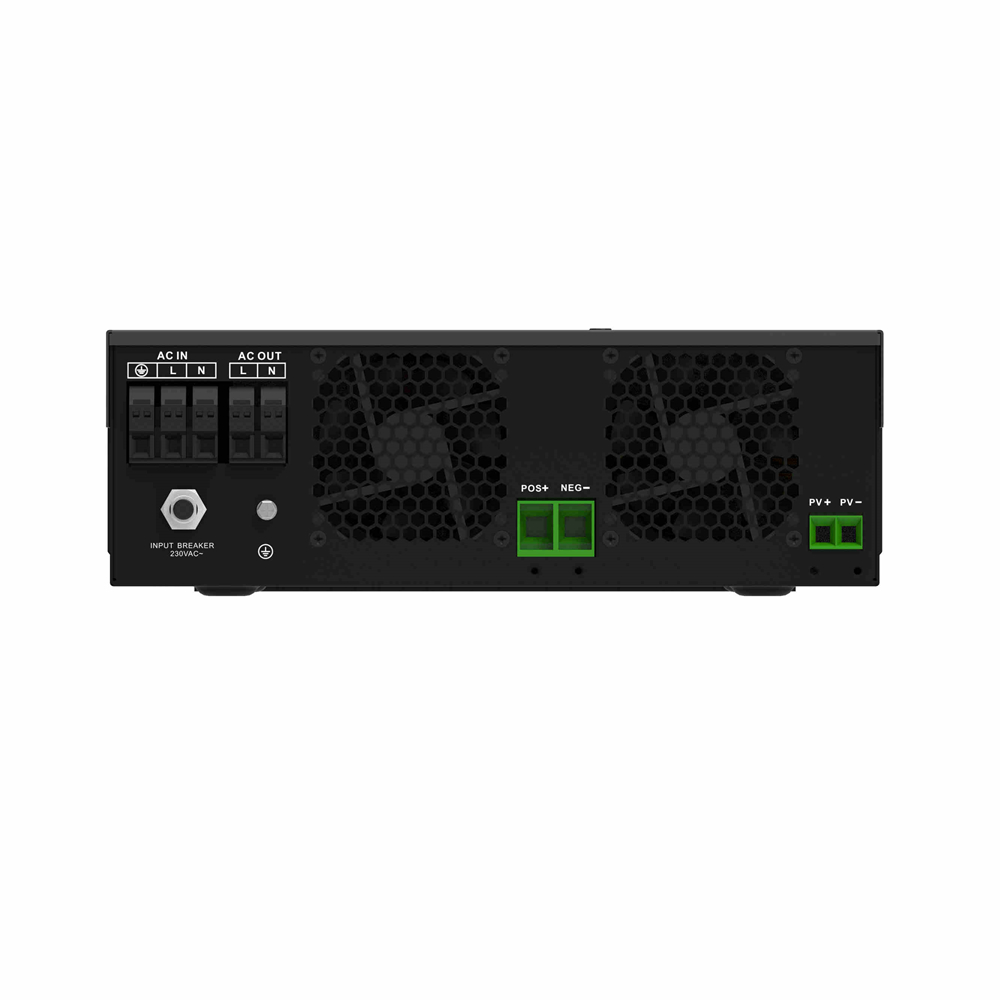

This 3kw hybrid solar inverter is a multifunctional pure sine wave inverter charger, which integrates the functions of inverter, solar charger and battery charger, and provides uninterrupted power supply support for rural areas.
Battery Voltage :
24VdcWeight :
11KgDimensions (W/H/D) :
100*300*400mmOutput Type :
SingleOutput Frequency :
50Hz/60HzMPPT Range :
120V-450VdcOutput Voltage :
230Vac±5%Input Voltage :
170V~280Vac3kw Off Grid Inverter with MPPT Solar Charge Controller
ELEC is a brand of Sunerise Energy that focuses on R&D and production of off-grid inverters. The brand aims to provide stable and reliable electricity to families and workers in remote areas.
Features:
SO3500-24 Off grid Inverter Specification:
|
INVERTER MODEL |
SO3500-24 |
|
Rated Output Power |
3500VA/3500W |
|
PV Input (DC) |
|
|
PV Max.power |
4000W |
|
MPPT Range |
120V-450Vdc |
|
Max.PV Voltage |
500Vdc |
|
MPPT Efficiency |
99% |
|
AC Input |
|
|
Nominal Voltage Range |
170V~280Vac |
|
Rated frequency |
50/60Hz |
|
AC output |
|
|
Nominal Voltage |
230Vac±5% |
|
Nominal frequency |
50/60Hz |
|
Efficiency(Max.)PV to INV |
97% |
|
Efficiency(Max.)Battery to INV |
94% |
|
Transfer Time |
10ms |
|
Surge Power |
6400VA |
|
Battery |
|
|
Nominal Voltage |
24Vdc |
|
Floating Charge Voltage |
27Vdc |
|
Overcharge Protection |
33Vdc |
|
Maximum AC Charge Current |
80A |
|
General Specifications |
|
|
Degree of Protection |
IP20 |
|
Operating Temperature |
0℃-50℃ |
|
Storage Temperature |
-15℃-60℃ |
|
Humidity(Non-condensing) |
10%-90% |
|
Dimension(D*W*H) |
100*300*440mm |
|
Weight |
11KG |
|
Communication interface |
RS232/WIFI/GPRS |
