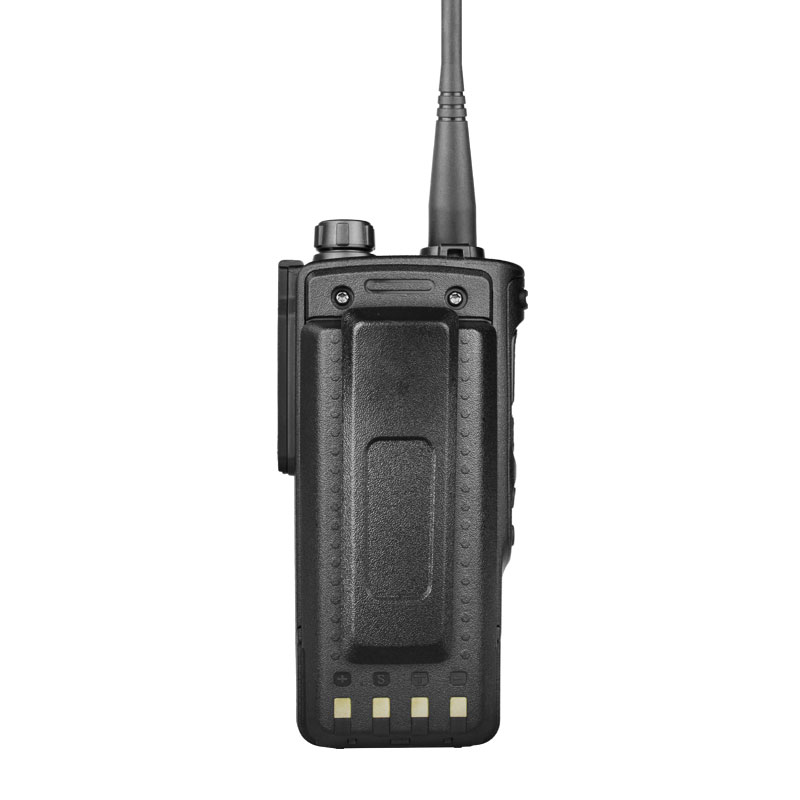

3G UHF Dual Mode PoC Walkie Talkie

SenHaiX SPTT-62 is Dual Mode Two Way Radio , Analog UHF and 3G Network Radio, with Repeater Function.
Product Details

Product Name: 3G UHF Dual Mode PoC Walkie Talkie

Technical Specifications


General Specification
Model No. SPTT-62
Dimension 130x65x45mm (excluding antenna)
Weight 340g
Operated Voltage DC 7.4V
GSM/WCDMA
2G/3G walkie talkie with GPS
Dual modes ( WCDMA/GSM 3G IP radio
+ UHF VHF radio in one) two way radio
Opertaing mode Same frequency simplex different frequency simplex
Standby operating current:5mA(in receiving -75dBm status)
Operating current range Sleep operating current:5mA(in receiving -75dBm status)
Average operating current:120mA(in receiving -75dBm status)
Maximum operating current:780mA(in receiving -104dBm status)
Receiving sensitivity -106dBm
MAX.Transmit Power 23-26dBm
Working Environment Operating Temperature:-20 to~45
Storage Temperature:-40 to ~70
Basic Parameter
(U)SIM/SIM Standard SIM card interface
3V SIM card and 1.8V SIM card
MAX Power Dissipation  about 2.2w
Voltage  DC3.3-4.2V,Recommended Voltage 3.8V
Operating Current   MAX. Current About 0.6A Average
Operating Current About 540mA@UMTS2100 About 239mA@GSM900
 Standby Current About 5mA@UMTS About 5mA@GSM
RF Parameter
GSM(2g) 900/1800MHZ    or  850/1900MHZ
Frequency Range
UMTS(3G/WCDMA) Frequency Range 900/2100MHZ  or   850/1900MHZ
Max Output Power UMTS 2100/1900/900/850MHZ:
Power class 3(+24dBm +2.5/-1.5dBm)
GSM/GPRS 850MHZ/900MHZ:
Power class 4(+33dBm +2.5/-1.5dBm)
GSM/GPRS 1800MHZ/1900MHZ:
Power class 1(+30dBm +2.5/-1.5dBm)
EDGE 850MHZ/900MHZ:
Power class E2(+27dBm +4.5/-1.5dBm)
EDGE 1800MHZ/1900MHZ:
Power class E2(+26dBm +4.5/-2.5dBm)
Receiving sensitivity WCDMA2100≤-108dBm
WCDMA1900/WCDMA900/WCDMA850≤-109dBm GSM1900/GSM1800/GSM900/GSM850≤-107dBm
GPS
GPS GPS Positioning, 1.57542GHz
Sensitivity Catch -144dBm,Track -159dBm
Technical Standards
Data Rates GSM CS:UL 9.6kbps/DL9.6kbps
GPRS:Muliti-slot Class 10
EDGE:Muliti-slot Class 12
WCDMA CS:UL 64kbps/DL 64kbps
WCDMA PS:UL 384kbps/DL 384kbps
Protocol HSDPA/WCDMA/EDGE/GPRS/GSM
HSDPA HSDPA:DL3.6Mb/s(Catagory6)

Standard Accessories

Dual Mode Radio Battery Senhaix  Dual Mode Radio Adaptor Senhaix  Dual Mode Radio Charger Senhaix


Dual Mode Radio Antenna Senhaix  Dual Mode Radio Belt Clip Senhaix  Dual Mode Radio Hand Strap Senhaix


Related product : Dual Mode Analog and GSM IP Radio
