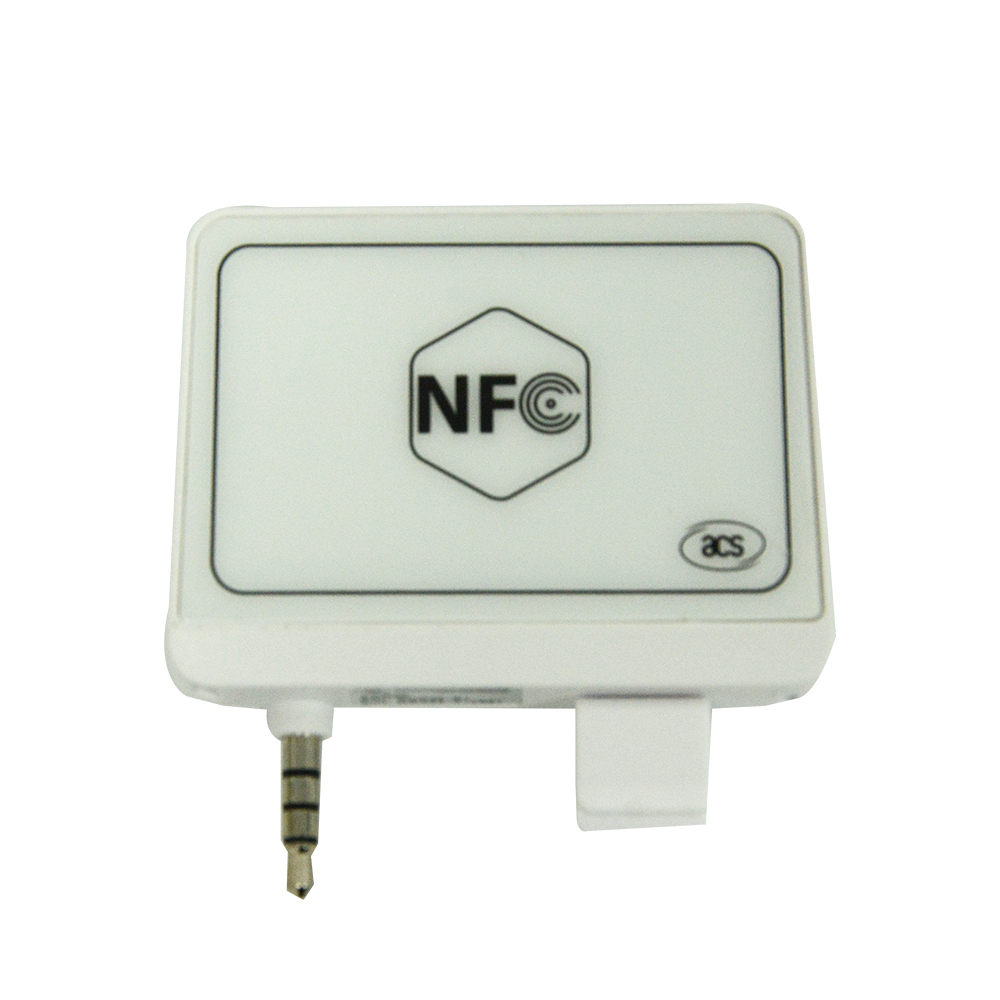

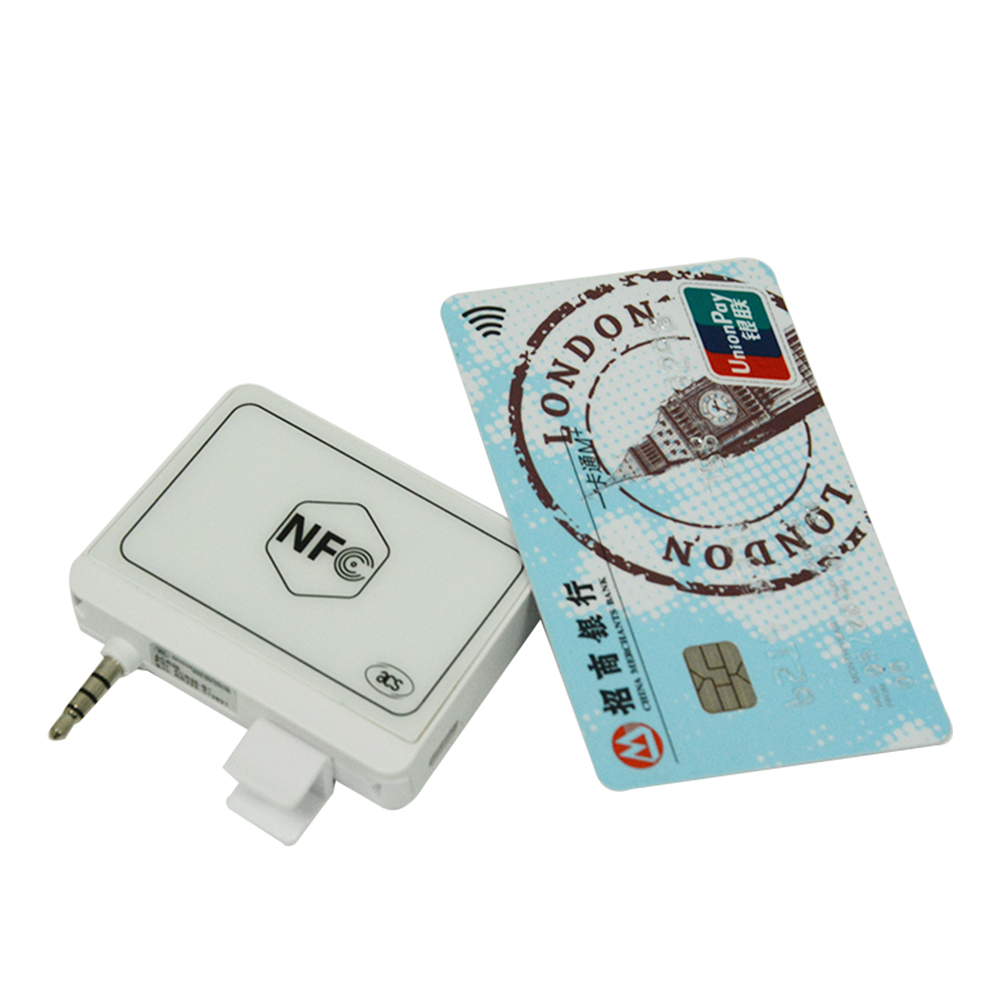

Small Contactless Mobile Mate Card Reader For Iphone/Android ACR35-B1
ACR35-B1 NFC MobileMate Card Reader enables even mobile devices without built-in NFC functionality to run NFC applications. This reader has a standard 3.5mm audio jack interface, to accommodate a vast array of mobile devices, this compact device may be used anytime and anywhere, enabling true mobility for users.
Features:
Specification
|
Dimensions |
60.0mm (L) x 45.0mm (W) x 13.3mm (H) |
|
Interface |
3.5mm 4-pole audio jack |
|
Operating Distance |
Up to 50mm (depending on the tag type) |
|
Power |
Lithium-ion battery (rechargeable through USB) |
|
Supply Voltage |
3.2 to 3.7 V DC |
|
Supply Current |
85mA |
|
Operating Temperature |
0-50°C |
|
Smart Card Interface Support |
ISO 14443 Part 4 Type A and B cards MIFARE Felica ISO 18092 Tags (NFC Tags) (except Topaz type) |
|
Compliance / Certifications |
ISO14443, ISO/IEC 18092, CE, FCC, VCCI, RoHS 2, REACH |
|
Operating System Support |
Android™ 2.0 and above iOS 5.0 and above |
