30A battery connector single pole for boats

30A 600V battery connector, High Current connector. A pcs connector is containing 1 pcs housing and 1 pcs terminal.

Product Details

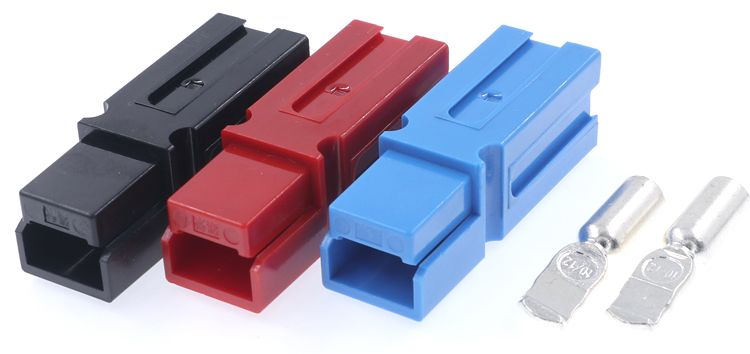

30A battery connector single pole for boats


Advantages of battery connector

  • Quick connection and disconnection, simple and safe

  • The plugs are interchangeable between the same models, and there is no male and female design, which is beneficial to reduce inventory

  • The terminals are silver-plated with red copper, high current working environment, reducing contact sparks

  • The shell is multi-color optional, and users can choose and match according to different circuit functions, which is convenient for users to identify and avoid incorrect insertion.


Parameter of 30A battery connectors

Product name
  30A battery connector single pole for boats
Rated Current       30A Rated Voltage       600V
Wire Size       14/12AWG Contact Material       Red copper, silver plate
Insulation Material       PC Flammability
   UL94 V-0
Internal shrapnel
   65Mn Temperature range       -20℃ ~ 105℃
Shell optional color
   Red,Blue,Black,White,Gray,Yellow,Green,Orange


Drawing of SP30 Connectors



Note:A set of SP30 connector, only contains a shell and a crimp terminal

Auxiliary parts for SP30 Connectors

SP30 Connectors Use occasion

Battery connectors are widely used in transportation railway, forklift, washing machine, aerospace products and large electric machinery etc.

*For more information, please contact us by email or through any contact information on the webpage.

FAQ

Q: Sp30 battery connector Can the color be customized?

A: Colors can be customized, but a certain minimum order quantity is required.

Q: Can all colors match each other?

A: There is no separation of male and female design, different colors can also be connected to each other, and the same model can be spliced into 2 poles, 3 poles.

Q: How long will it take to ship after payment?

A: battery connector with finished goods inventory can generally be shipped the next day; products without finished goods inventory generally have spare parts inventory, and they can be shipped within 5-7 days after placing an order.
