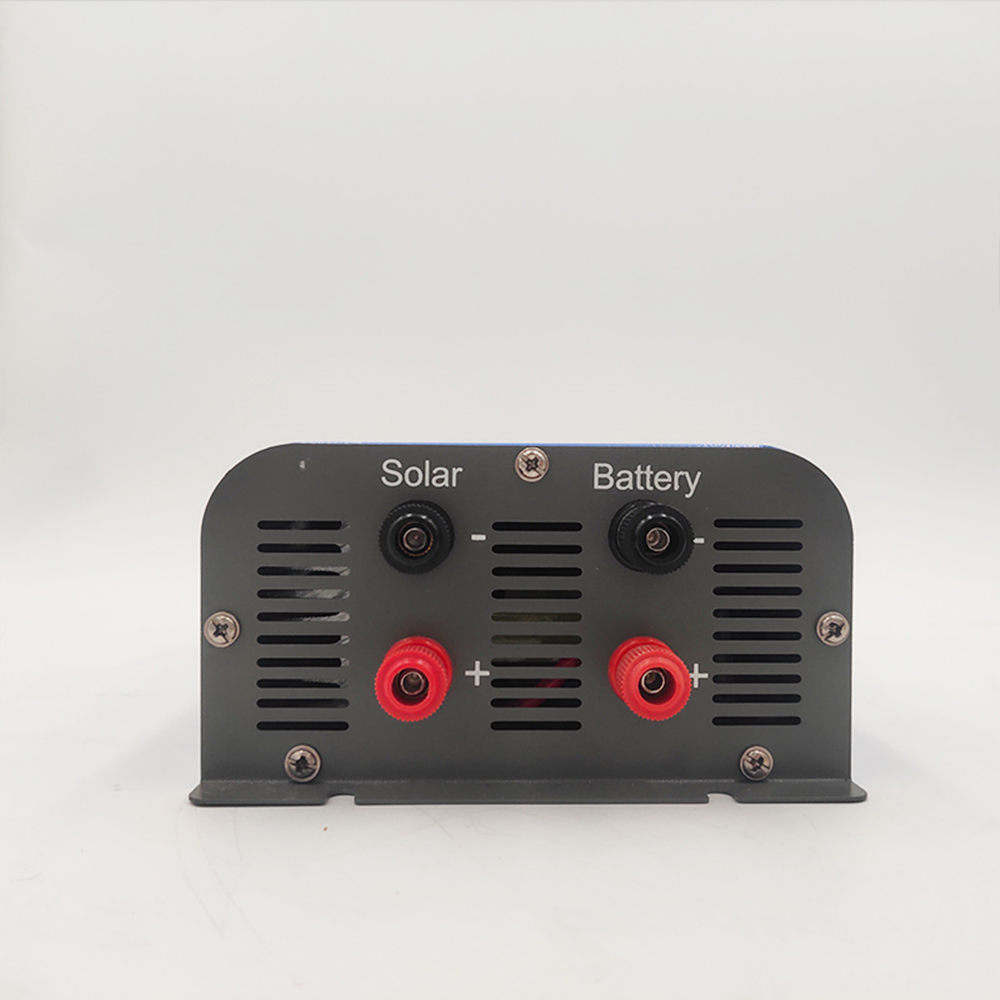

10000W~12000W300W Off Grid Inverter with MPPT Solar Charge Controller
This off grid series inverter adopts multiple CPU and advanced MPPT control mode, with high speed reaction, reliable and industrial standard advantages. It is a new technology that integrated inverter with solar charge controller in one machine.
The PV charge mode is the latest- upgrade the MPPT technology, efficiently and swiftly tracking the maximum power output of PV panels in any environment, getting the real time max power of panels. DC-AC inverter is designed based on database and intelligent request, with advanced SPWM technology, converting the 12V/24VDC into 220v/230VAC with pure sine wave output for house use like house appliances, electric tools, commercial use and other electric equipment.
This product use LCD display for real time system status and parameters. Complete electric protection functions assure the stable performance. It is functioned with battery reversed protection, pv panel reversed connection, battery reversed charging, low voltage protection, over voltage protection, over charge protection, over load protection, short circuit protection and overheat protection. Any faults could be displayed on LCD.
SRMB-12V300W-S20A Specification:
Model
GNMB-12V-300W-S20A
Rated battery voltage
12V
PV max power
260W
Open circuit voltage (PV)
<50V
Working voltage(PV)
18V
Start charging voltage(PV)
>15V
Max load power
300W
Over load power
110%
start surge power
600VA
Charge mode
MPPT
Charging efficiency
>99%
Low voltage(battery)
10.8V
low voltage recovery (battery)
12.6V
Over voltage (battery)
16.0V
Over voltage recovery(battery)
15.0V
Charging protection voltage
14.4V
Back to charge voltage
13.2V
AC output voltage
220V/230V/240V±3%
AC output frequency
50Hz/60Hz
Output waveform
Pure sine wave
Inverter efficiency
>85%
Working temperature
Industrial
grade -25℃~+55℃
Working altitude
<3500M
Weight
2KG
Size
296*144*75MM
