30-300kVA PDM PLUS series Modular UPS

30-300kVA PDM PLUS series Modular UPS

30kVA module, 200/208/220VAC, 3:3

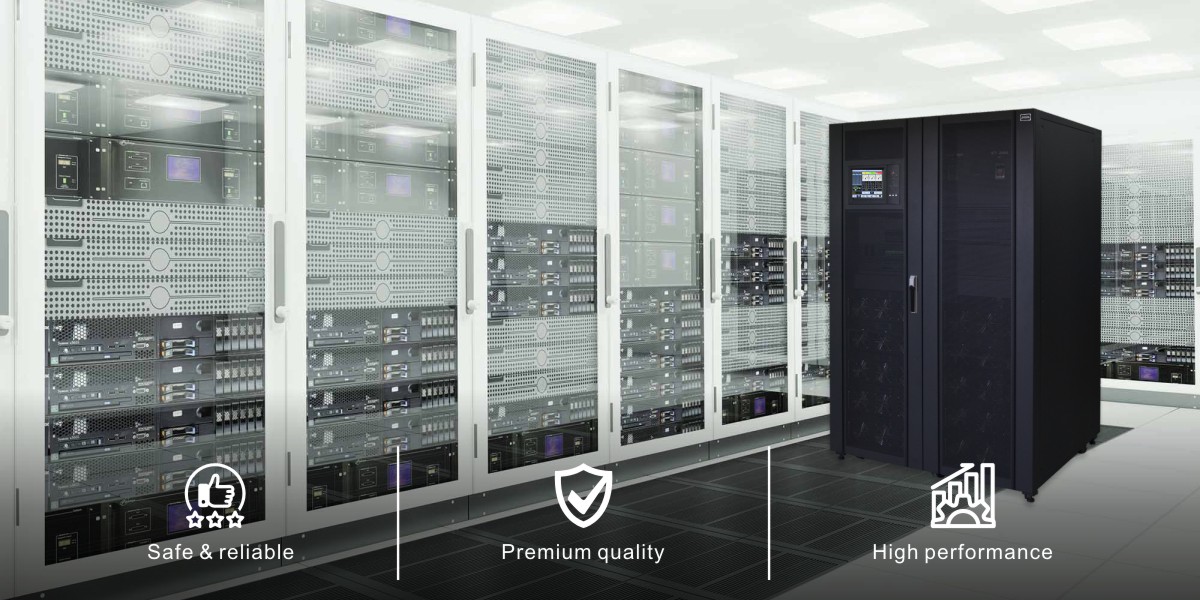

The PDM Plus Series Modular UPS prowides the compact foprint of less than 4.5mwith maximum capacity of 200kVA in
parallel, designed to protect any crifical load for medium and langer data center achieving maximum availab ity. The PDM Plus Series Modular UPS feature the latest technology of 3-level technology and PFC input control. which guarantees high efficiency of 94% and ulta-reliability. making it an excellent choice for medium and larger faciities.



Features and benefits
  • Applications :

    Medium Facilities Large Facilities Data center
  • Efficiency :

    94%
  • Rated frequency :

    40Hz-70Hz
  • Type :

    208V & 120V UPS
  • Rated voltage :

    200V/208V/220V
  • Model :

    PDM Plus
  • Certificate :

    CE, TLC
Product Details



Technical features




High power density

High power density

Critical waveform recording

30 KVA power module ,saving great amount of space, easy for capacity expansion



Can intelligently make some power modules to go to sleep when load is relatively low, improving the efficiency of the remaining power modules and saving customers on power and cooling costs.

UPS can record and save the data of the main parameters automatically when faults happen for further analysis.






Independent LCD for each module

High efficiency

Self-aging function

Each power module has an independent LCD, gives users' direct overview of status data and alarms in real time.


Improved efficiency up to 94%,  input power factor is 0.9 and the total harmonic distortion current is less than 6% that reducing power and cooling costs
Simulate different load conditions without connecting to any real load, saving more than 90% of energy. On site setting supported, easy for factory testing



Programmable dry contacts

Friendly Interface

Comprehensive monitoring management

All programmable abundant options with three inputs and four outputs, Easy setting. just pull the drop-down menu and set.



10.4" touch color LCD with comprehensive graphical information of operation, easier for customer to maintenance. RS232,RS485,USB & Dry contacts (optional)


In each power module, information of critical components is monitored and displayed in real time, giving customers a view of inner status of the system and providing reminder information for
maintenance.


Applications

Medium Facilities, Large Facilities, Data center
