The rocker switch is one of the most common switch forms in the world, because of its ease of use and high reliability. It is an on-off switch that rocks back and forth like a see-saw.
The rocker switch is one of the most common switch forms in the world, because of its ease of use and high reliability. It is an on-off switch that rocks back and forth like a see-saw.

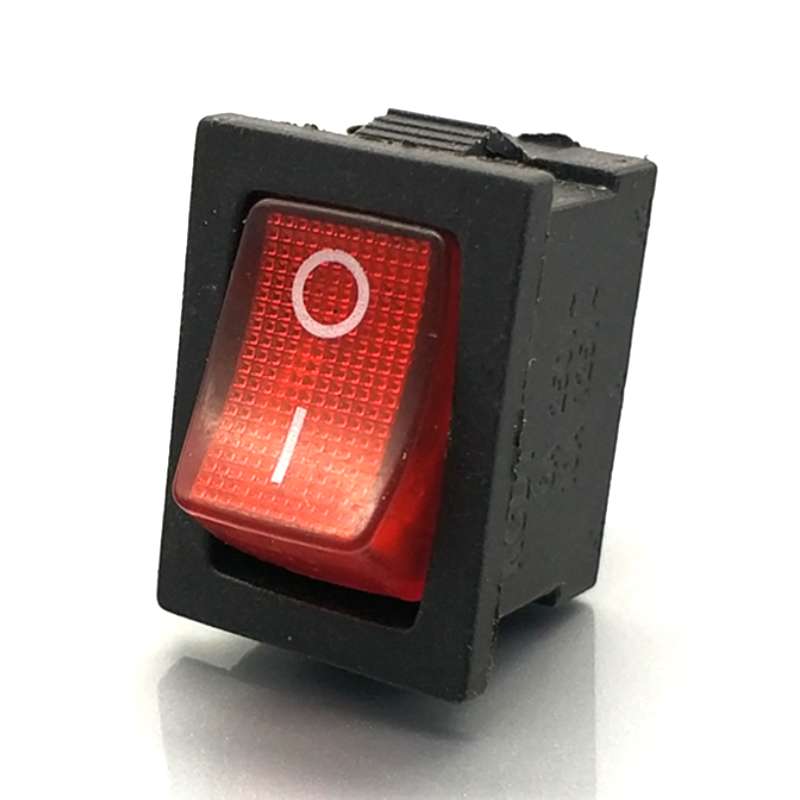

3 way plastic on off on rocker switch types kcd1
Description of Kcd1 rocker switch
Specification of Kcd1 rocker switch
Product name:
on off on rocker switch
Model:
KCD1 series
Panel mount diameter:
19.5 x 13.2 mm
Function:
on-off, on-off-on, on-on
Rating:
6A 250V AC/10A 125V AC
Rated load:
2/8A 250V AC
Solder terminal:
PTI 175
Ambient temperature:
T85
Endurance:
10000 cycles
Contact resistance:
≤ 50mΩ
Dielectric intensity:
≥ 1500V AC/min
Withstand voltage:
1500V AC/min
Insulation resistance:
≥ 100MΩ
Frequency:
50HZ
Feature of Kcd1 rocker switch
Application of rocker switch type
There are many applications that can use rocker switches. This includes household appliances, medical systems, power supply units, control panels, and HVAC equipment.
There are more rocker switches to choose from
