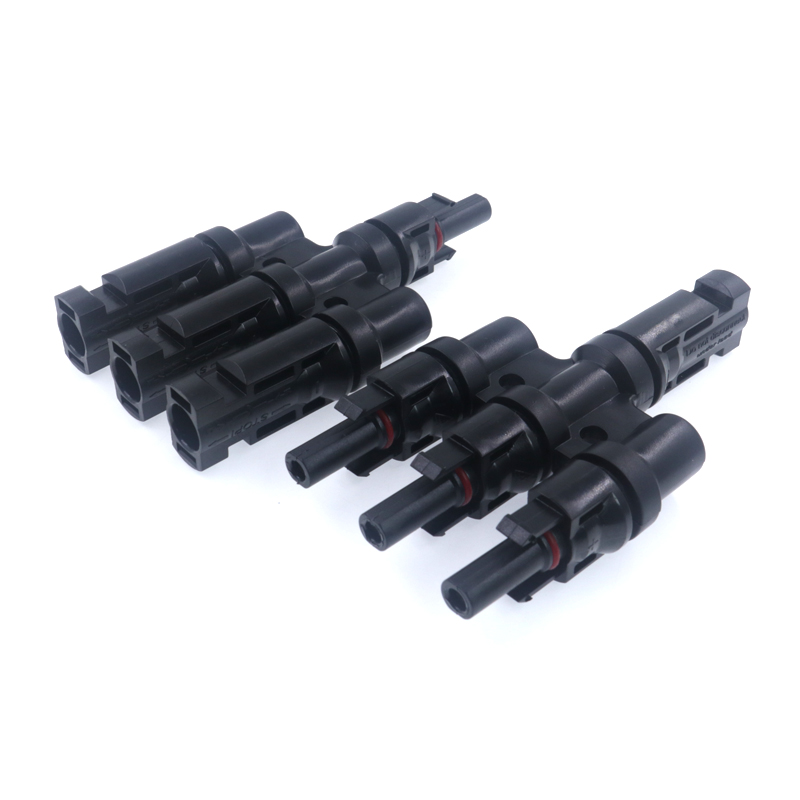

One pair of 3 Input 1 Out T-Branch Connectors for solar panels.Waterproof Grade IP67, Can Be Used Outdoors, With A Buckle Design, It Is Not Easy To Fall Off By Itself During Work.
One pair of 3 Input 1 Out T-Branch Connectors for solar panels.Waterproof Grade IP67, Can Be Used Outdoors, With A Buckle Design, It Is Not Easy To Fall Off By Itself During Work.
Description Of MC4 T Branch connector |
The MC4 System Consists Of A Plug And Socket Design. The Plugs And Sockets Are Inside Plastic Shells That Appear To Be The Opposite Gender - The Plug Is Inside A Cylindrical Shell That Looks Like A Female Connector But Is Referred To As Male, And The Socket Is Inside A Square Probe That Looks Male But Is Electrically Female.
Drawings Of 3 In 1 MC4 Connector |
Technical Data For 3 In 1 MC4 Connector |
Product name | T branch Connector |
Rated voltage | 1500V DC(IEC) |
Rated currect |
17A(1.5MM2) 22A(2.5MM2, 14AWG) 30A(4mm2, 6mm2, 12AWG, 10Awg) |
Degree of protection mated | IP67 |
Insulation material | PC/PPO |
Locking system | Snap-in |
Flame class | UL-94-V0 |
Contact material | Messing, Verzinnt copper alloy, tin-plated |
More T-Branch Type Solar Connectors |
||||||
![]() |
|
![]() |
|
![]() |
|
![]() |
PV-T2 |
|
PV-T4 |
|
PV-T5 |
|
PV-T6 |
*For more information, please contact us by email or through any contact information on the webpage.
