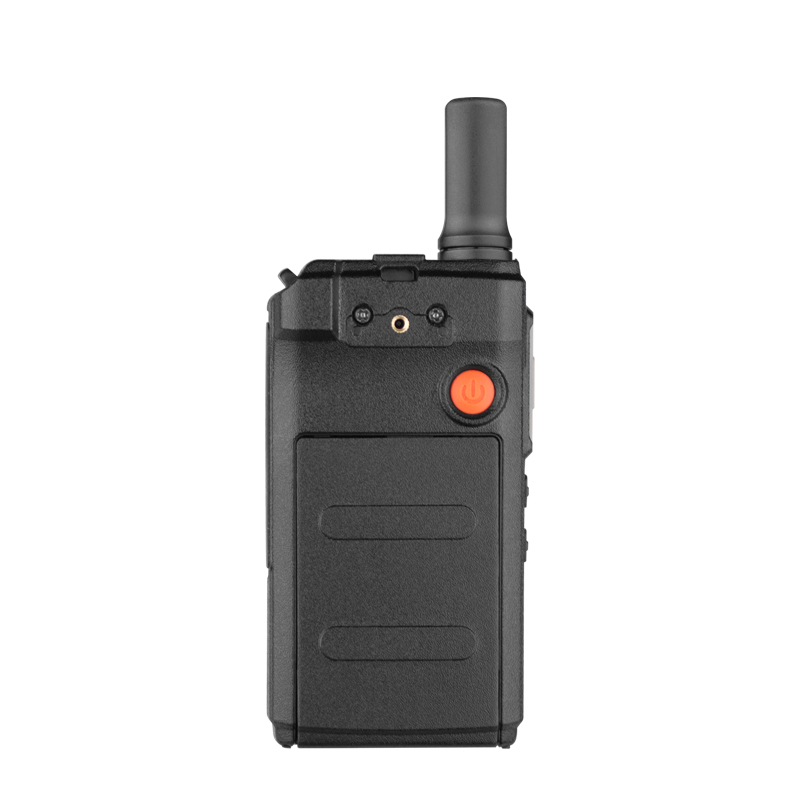

Product Name: 2W UHF Two Way Radio
Product Features
1. 16 Channels
2. Output Power: 2W
3. Voice Prompt
4. VOX Function
5. Scan Function
6. Scramble Function
7. Time-out Timer (TOT)
8. Battery Saver
9. Low Battery Warning
10. TX End Tone
11. Busy Channel Lock Out
12. Squelch Level Adjust
13. CTCSS/DCS Decode and Encode
14. Wide/Narrow Band 25KHz/12.5KHz
Technical Specifications
|
General Specification |
|
|
Model No. |
1410 |
|
Frequency Range |
UHF 400-470MHZ |
|
Channel Capacity |
16 CH |
|
Operated Voltage |
DC 3.3-4.2V |
|
Channel Spacing |
12.5KHZ/ 25KHZ |
|
Battery Capacity |
1500mAh Li-Ion Battery |
|
Frequency Stability |
±2.5ppm |
|
Operating Temperature |
-20℃ to +50℃ |
|
Antenna Impedance |
50Ω |
|
Dimension |
95x52x21.5mm (excluding antenna) |
|
Weight |
80g |
|
Transmitter |
|
|
Frequency Error |
±500Hz |
|
TX Current |
≤1.2A |
|
TX Frequency Offset |
4.3 ± 0.1KHz |
|
2.1 ± 0.1KHz |
|
|
TX Power |
2W |
|
CTCSS |
0.6 ± 1KHz |
|
DCS |
0.6 ± 1KHz |
|
Frequency Response |
0.3KHz |
|
0.57KHz |
|
|
TX SNR |
>50dB |
|
TX Modulation Distortion |
≤5% |
|
Adjacent Power Ratio |
≤-66dB |
|
Receiver |
|
|
RX Sensitivity |
≤-121dB |
|
SQ |
-126(OFF) -123(ON) |
|
RX Frequency Response |
0.3KHz |
|
0.86V |
|
|
Audio Distortion |
≤5% |
|
Speaker Max Output |
1.4V ± 0.1V |
We offer high quality UHF Two Way Radios. Support OEM and ODM services.
Standard Accessories
Optional Accessories
