Auto scan barcode scanner wired barcode scanner embedded qr code scanner module

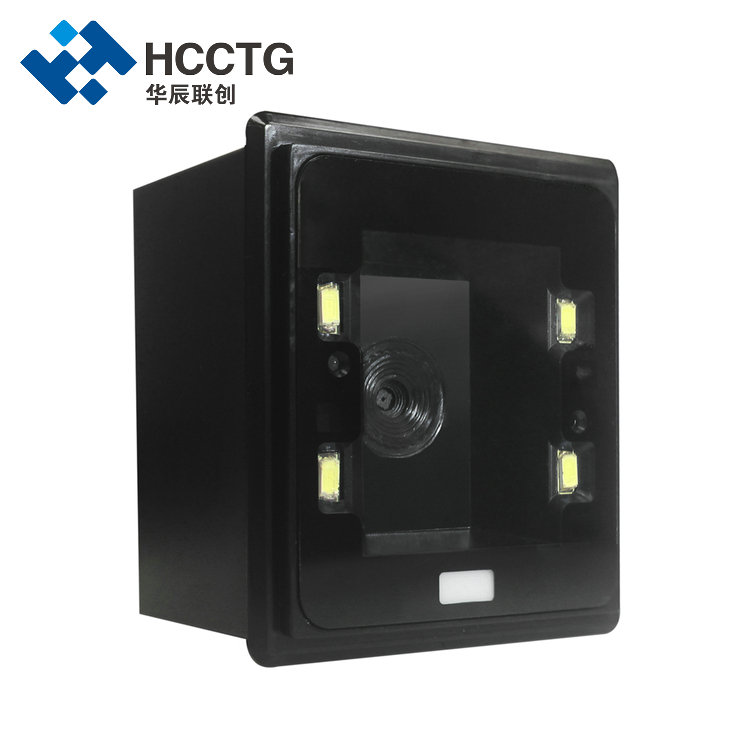

HS-2012 is a high-performance scanning box that can easily read all kinds of 1D barcodes and read 2D QR barcodes at high speed. HS-2012 has a very high scanning rate for linear barcodes. For paper barcodes and barcodes on the display, HS-2012 can also easily scan and handle various scanning applications.
The HS-2012 is built to meet the most demanding scanning requirements, providing consistent scanning performance in a completely dark environment as well as over an extended temperature range. HS-2012 is based on solid state technology that meets the most stringent standards for exposure, as well as shock and vibration.
Specification
|
Performance parameter |
|
|
Image Sensor |
CMOS |
|
Pixel |
648*488 CMOS |
|
Illumination |
White light led |
|
Reading code system |
2D:PDF417,QR Code,Data Matrix |
|
1D:Code128,EAN-8,EAN-13,UPC-E,UPC-A,Interleaved 2 of 5, Matrix 2 of 5,Industrial 25,Code 39, Codabar, Code 93, Code 11,MSI-Plessey,GS1-DataBar |
|
|
Reading accuracy |
≥5mil |
|
Bar code sensitivity |
Tilt:±65°@ 0°Roll and 0° Skew |
|
Rotate:±360°@ 0°Pitch and 0° Skew |
|
|
Deflection:±60°@ 0°Roll and 0° Pitch |
|
|
Data interface |
USB HID/KBW interface，USB virtual serial port interface,RS-232 interface |
|
Field of view |
28° horizontal and 21.5° vertical |
|
Typical reading depth of field |
Code 39 5mil 6-8cm 15mil 4-15cm |
|
Physical parameter |
|
|
Size (length * width * height) |
78.4*67.2*37.8mm (Figure 1) |
|
Weight |
181.5g (including USB cable) |
|
Prompt mode |
Buzzer,LED indicator |
|
Electrical parameters |
|
|
Voltage |
Operating 5VDC ± 5% |
|
Current |
Working current 210mA Stand-by current 70mA |
|
Environmental parameters |
|
|
Operating temperature |
-20℃ ~ +50℃ (-4°F~122°F) |
|
Storage temperature |
-40℃ ~ +70℃ (-40°F~176°F) |
|
Relative humidity |
5%~95% (no condensation) |
|
Accessories list |
|
|
Data line |
Cable (2m) USB(HID-KBW,Virtual serial port) and RS232 interface at optional |
