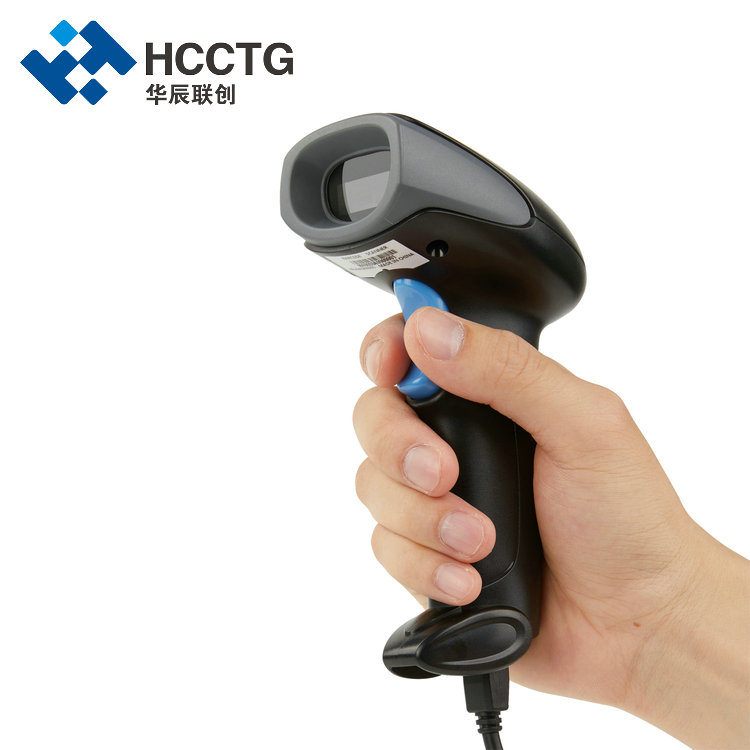

If you are looking for a high quality, low cost 2D image rugged android scanner, the HM400S will be your best choice. The HM400S 2D image scanner not only accurately and quickly reads 1D and 2D barcodes, but also supports screen barcodes. It is a direct read for popular mobile payment (WeChat, Alipay), e-coupon and tickets. Our handheld android barcode scanner provides an effective data collection tool. HM400S adopts international advanced engine and decoding technology, which can be widely used in many occasions and become the best choice for traditional warehousing, retail, catering, hotel, express, high-speed rail, electronic ticketing and other industries.
Features
Specification
|
ImageSensor |
CMOS (Image)
|
|
Button life
|
10 million times
|
|
ScanningSpeed
|
≥300 times/s |
|
Resolution
|
≥5mil |
|
Scanning angle |
Tilt ±60°，Deflection ±65°，Rotation:360° |
|
Print Contrast |
20% |
|
Certificate |
ROHS |
|
Receiver size |
19*14*6mm (L*W*H) |
|
Interface |
Full built-in automatic recognitionUSB, USB-COM
|
|
Scanning mode
|
Manual mode |
|
Battery |
3.7V,2000mAh |
|
Indicator
|
Buzzer, LED light |
|
Working Voltage
|
DC5V±0.25V |
|
Working Current
|
220mA |
|
Dimension(L*W*H)
|
98*65*165mm |
|
Weight
|
about 170g (without cable) |
|
Decoding depth
|
5mil(Code39):3-8cm 10mil(QR):2-9cm 13mil(UPCA):3-17cm 20mil(QR):2-15cm 40mil(Code 39):17-40cm 40mil(QR):5-22cm |
|
Decoding types
|
1D codes:UPC/EAN with supplemental,Book land EAN,ISSN,UCC Coupon Extended Code,Code 128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCll,Trioptic Code 39,Code 32,Code 93,Code 11,Matrix 2 of 5,interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Cinese 2of 5,GSI DataBar VAariants,Korean 3 of 5,ISBT Concat 2D codes:PDF417,Data Matrix,QR code |
|
Material
|
ABS+PC (environment protection raw material)
|
|
Working temperature
|
-20℃-45℃ |
|
Storage temperature
|
-40℃-60℃ |
|
Charging time
|
4.5-5h |
|
Centre frequency
|
2.4GHz |
|
Transmission distance
|
70m(spacious) |
|
Shock resistance |
Fall resistance from2m to concrete floor
|
|
Applicable system |
WIN,IOS,Android |
Request for Quotation
