221-612 6mm wire connectors Building power line branch
| Features of Push in Connectors |
| Specifications of 221 Lever wire connectors |
| Model | 221-612 |
Rated Voltage |
450V |
|
Rated Current |
40A |
Strip Length |
13-15mm/0.59in |
|
Wiring Size |
Solid Wire: 0.5-6mm2 Stand Wire: 0.4-4.0mm2 | ||
|
Wiring Method |
Lever Crimp |
Shell |
PC |
| Contact | Copper |
Sping |
High-Perfomance Spring Steel |
|
Temperature |
-25℃~85℃ |
Applications |
Building Wire Branch and Connection |
|
Size and Description |
|
 |
The lever crimp wire connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity。 |

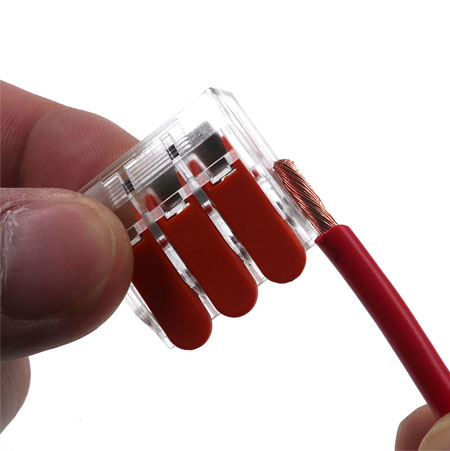

How To Use Of Push In wire Connector
Easy Operation,Easy To Insert,Convenient, Fast,Safe And Reliable
1)Stip The Wire Length 13-15mm/0.59in
2)Open The Connectors Handle
3)Insert The Wire Hole and Close The Handle
4)Installation Is Complete
|
Other needle count products |
||||
 |
|
 |
|
 |
| 221-613 |
|
2121-614 |
|
221-615 |
| More Push In Wire Connector |
*For more information, please contact us by email or through any contact information on the webpage.
